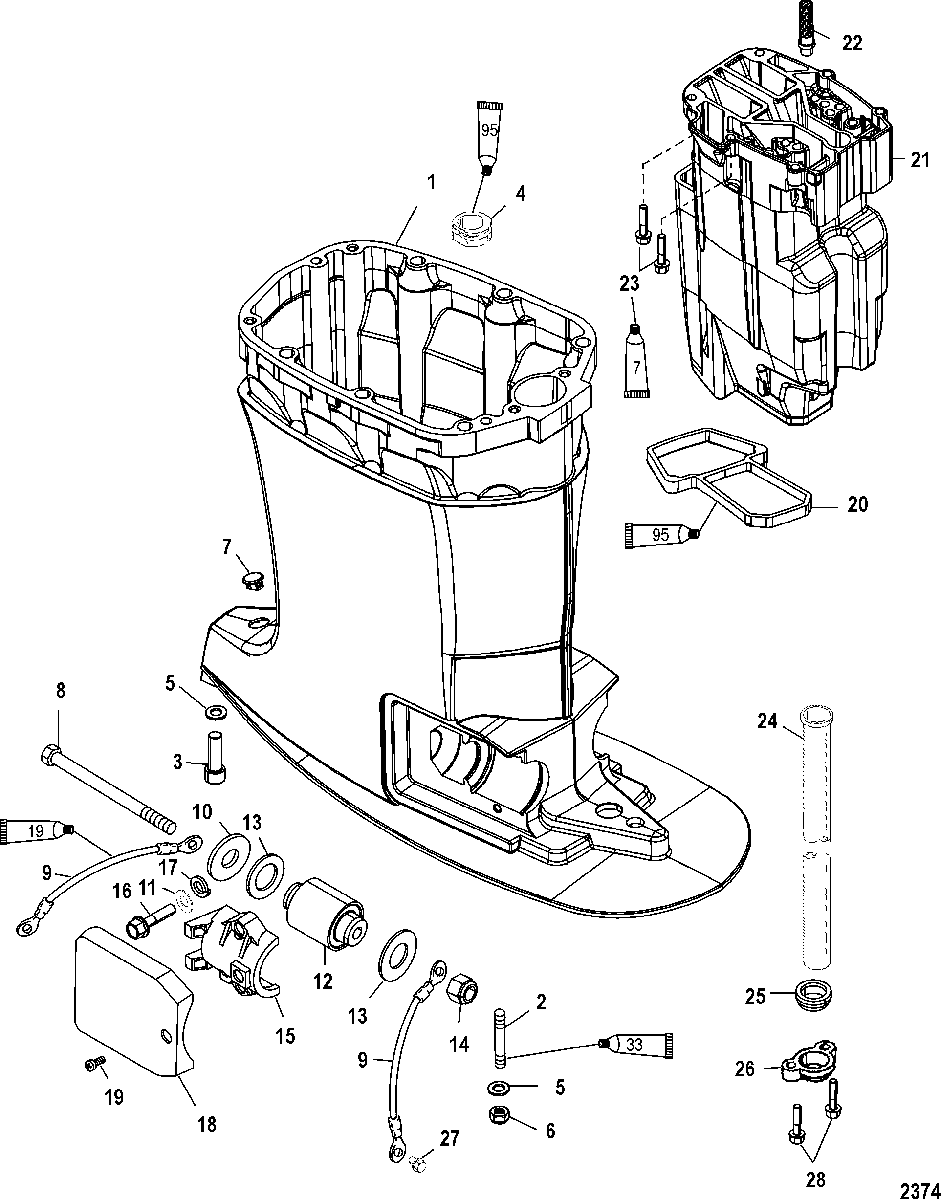

Driveshaft Housing and Exhaust Tube для Mercury - 250 LONG (3.0L)(EFI) 0T861319 & Up
-
№АртикулНазвание
-
13518-832937A06 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
216-8M0070951 STUD, (M12 x 52)STUD, (M12 x 52)
-
310-892860 SCREW, (M12 x 35), Internal HexSCREW, (M12 x 35), Internal Hex
-
310-857136 SCREW, (M12 x 35), External HexSCREW, (M12 x 35), External Hex
-
425-8331231 GROMMETGROMMET
-
512-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
611-896895 NUT, (M12 x 1.75)NUT, (M12 x 1.75)
-
719-64649 PLUGPLUG
-
810-898834 SCREW, (M14 x 178)SCREW, (M14 x 178)
-
988238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1012-815432 WASHER, (.562 x 2.00 x .125)WASHER, (.562 x 2.00 x .125)
-
1112-847541 WASHERWASHER
-
128M0055931 MOUNTMOUNT
-
1312-825190 WASHERWASHER
-
1411-896602 NUTNUT
-
15879150A90 CLAMPCLAMP
-
1610-8M0084475 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1713-72521 LOCKWASHER, Internal ToothLOCKWASHER, Internal Tooth
-
18879150A90 COVER, BlackCOVER, Black
-
1910-69079 SCREW, (#10-16 x .440)SCREW, (#10-16 x .440)
-
208329321 SEALSEAL
-
21833116A4 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
22NSS NOT SOLD SEPARATE, StrainerNOT SOLD SEPARATE, Strainer
-
2310-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2432-8M0042785 TUBE, WaterTUBE, Water
-
25832940001 SEAL
SN# 0T979999 & BelowSEAL
SN# 0T979999 & Below -
25832940001 SEAL
SN# 0T980000 & UpSEAL
SN# 0T980000 & Up -
268329391 CLAMPCLAMP
-
2710-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2810-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
