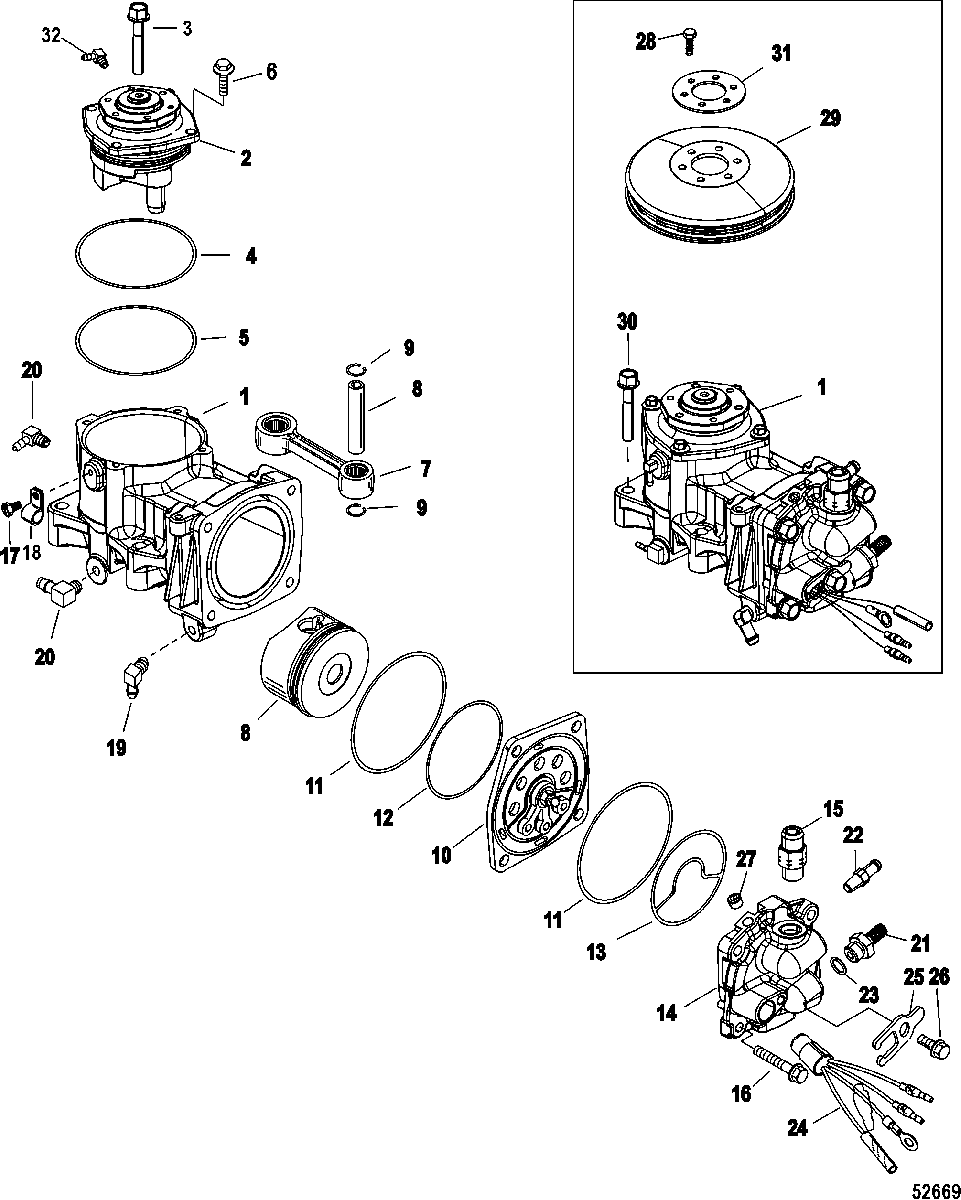

Air Compressor Components, SN# 1B885132 and above для Mercury - 250 PRO XS (3.0L DFI) 1B752547 & Up
-
№АртикулНазвание
-
18M0133589 COMPRESSOR ASSEMBLY, Air
BlackCOMPRESSOR ASSEMBLY, Air
Black -
21100-8M0060381 END CAP ASSEMBLYEND CAP ASSEMBLY
-
310-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
425-67206001 O-RINGO-RING
-
525-67206001 O-RINGO-RING
-
610-85593920 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
7653-833146T06 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
8NSS NOT SOLD SEPARATE, Piston AssemblyNOT SOLD SEPARATE, Piston Assembly
-
953-8348101 RING, LockRING, Lock
-
10835088A10 REED PLATE ASSEMBLYREED PLATE ASSEMBLY
-
1125-67207 O-RING, (3.489 x .070)O-RING, (3.489 x .070)
-
1225-832804 O-RING, (2.739 x .070)O-RING, (2.739 x .070)
-
1326-828225 SEALSEAL
-
148M0073890 HEAD KIT, CompressorHEAD KIT, Compressor
-
1522-8307535 FITTING, StraightFITTING, Straight
-
1610-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
1710-8M0037204 SCREW, Nylon, push inSCREW, Nylon, push in
-
1854-22875 CLIPCLIP
-
1922-996642 FITTING, Elbow 90 Degree (.125-27 x .250) NylonFITTING, Elbow 90 Degree (.125-27 x .250) Nylon
-
2021-428641 FITTING, Check ValveFITTING, Check Valve
-
2122-856744 FITTINGFITTING
-
2222-16604 FITTING, Straight (.125-27)FITTING, Straight (.125-27)
-
2325-831985 O-RING, (.468 x .078)O-RING, (.468 x .078)
-
2413536A14 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
25137151 RETAINERRETAINER
-
2610-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
2722-390721 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
2810-85593912 SCREW, (M6 x 12)
225SCREW, (M6 x 12)
225 -
2810-85593920 SCREW, (M6 x 20)
250SCREW, (M6 x 20)
250 -
298328233 PULLEY
225PULLEY
225 -
298M0138680 PULLEY
250PULLEY
250 -
3010-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
3112-884594 WASHER
250WASHER
250 -
3222-151331 FITTINGFITTING
-
-25-832804A03 O-RING KITO-RING KIT
