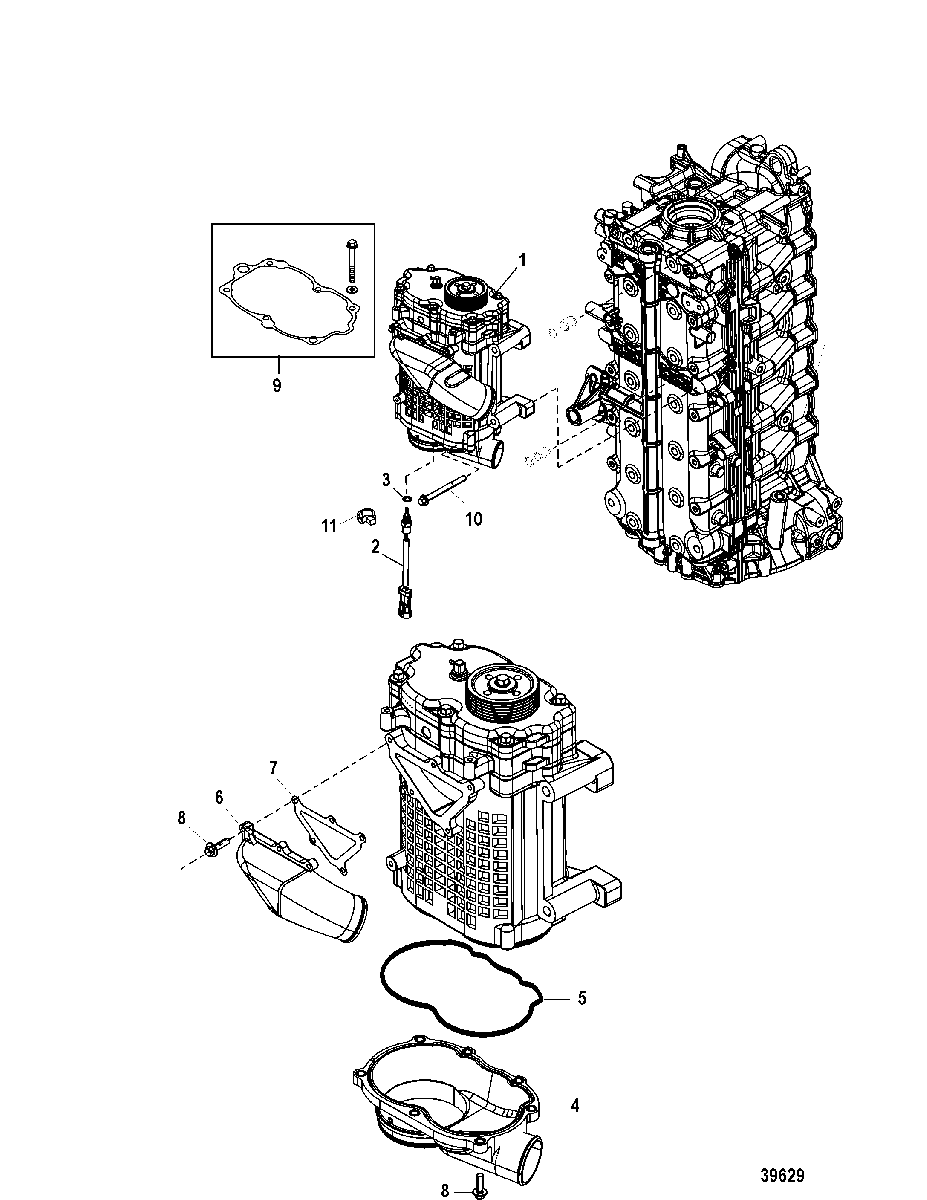

SuperCharger для Mercury - 250 VERADO (4-STROKE)(6 CYL.) 1B381712 THRU 1B517433
-
№АртикулНазвание
-
18M0103744 SUPERCHARGER KITSUPERCHARGER KIT
-
2885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
325-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
4888947A05 DUCT KIT, InletDUCT KIT, Inlet
-
527-888947501 GASKETGASKET
-
68M0103744 OUTLET DUCT KITOUTLET DUCT KIT
-
727-888947504 GASKETGASKET
-
810-888947502 BOLTBOLT
-
-8M0045222 END CAP KIT, Supercharger
SN# 1B390142 & BelowEND CAP KIT, Supercharger
SN# 1B390142 & Below -
-8M0045222 END CAP KIT, Supercharger
SN# 1B390143 & UpEND CAP KIT, Supercharger
SN# 1B390143 & Up -
923-847803A02 BUSHING/GASKET KITBUSHING/GASKET KIT
-
1010-8M0103820 SCREW, (M10 x 105)SCREW, (M10 x 105)
-
1156762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
