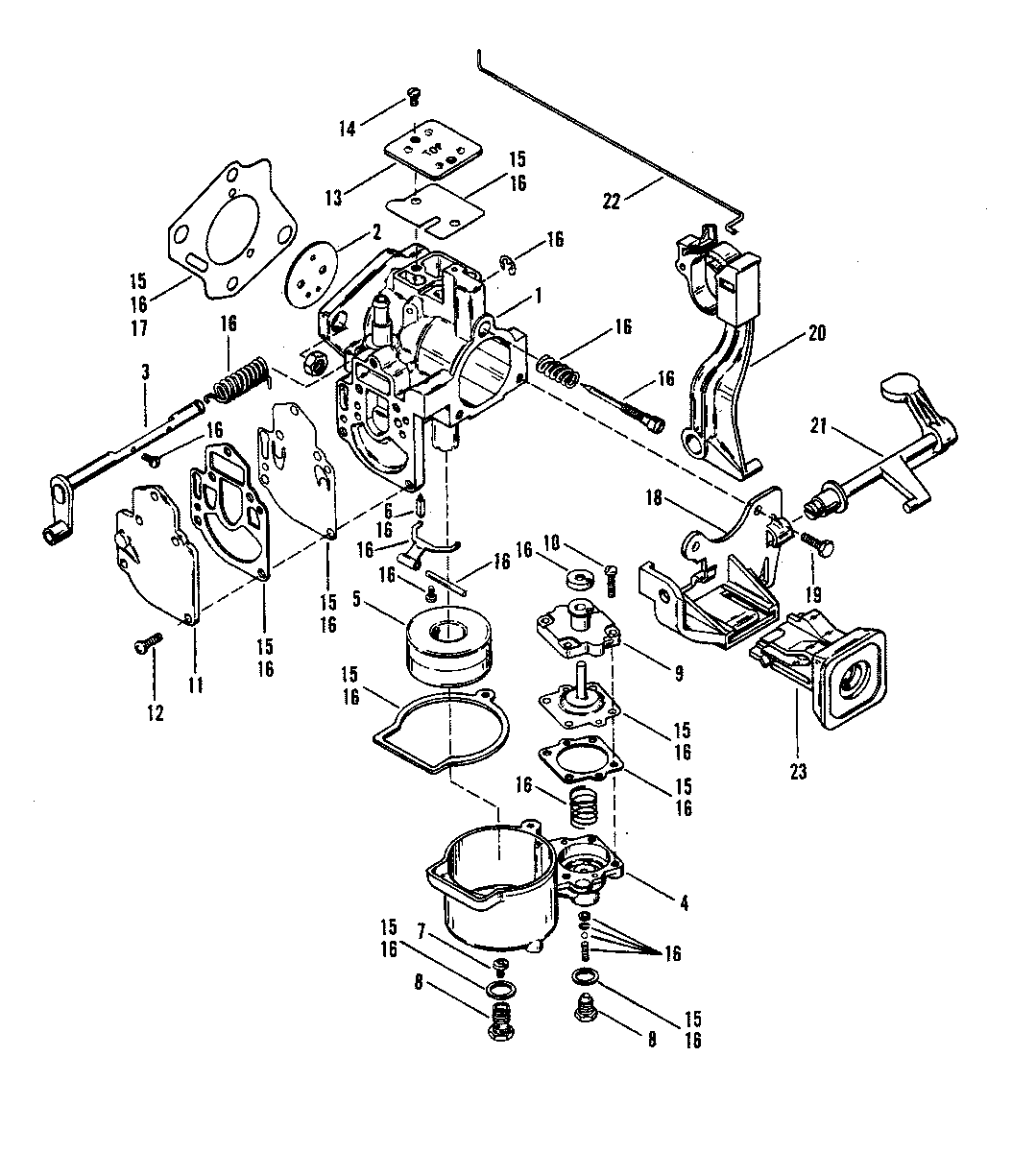

CARBURETOR ASSEMBLY (MERC 18) для Mercury - 25 9332837X THRU 9390058X
-
№АртикулНазвание
-
11390-8888A16 CARBURETOR ASSEMBLY (MANUAL)CARBURETOR ASSEMBLY (MANUAL)
-
11390-8888A16 CARBURETOR ASSEMBLY (ELECTRIC)CARBURETOR ASSEMBLY (ELECTRIC)
-
21395-9168 THROTTLE VALVETHROTTLE VALVE
-
31395-9695 THROTTLE SHAFTTHROTTLE SHAFT
-
41395-9164 FUEL BOWLFUEL BOWL
-
51395-91691 FLOATFLOAT
-
61395-803861 VALVE,INLET NEEDLEVALVE,INLET NEEDLE
-
71399-5317 JET,MAIN FUEL (.046)JET,MAIN FUEL (.046)
-
81395-9171 PLUG,JET RETAINERPLUG,JET RETAINER
-
9813618 COVER,DIAPHRAGMCOVER,DIAPHRAGM
-
101395-9697 SCREW,DIAPHRAGM COVERSCREW,DIAPHRAGM COVER
-
111395-9702 COVER,FUEL PUMPCOVER,FUEL PUMP
-
121395-9173 SCREW,FUEL PUMP COVERSCREW,FUEL PUMP COVER
-
131395-9177 PLATE,COVER(MANUAL)PLATE,COVER(MANUAL)
-
131395-823433 PLATE,COVER(ELECTRIC)PLATE,COVER(ELECTRIC)
-
141395-9696 SCREW,COVER PLATESCREW,COVER PLATE
-
151395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
161395-96481 REPAIR PARTS KITREPAIR PARTS KIT
-
1727-192061 GASKET,CARBURETORGASKET,CARBURETOR
-
1841717T BRACKET,PRIMERBRACKET,PRIMER
-
1910-400018 SCREW,BRACKET TO CARBURETORSCREW,BRACKET TO CARBURETOR
-
2042515A1 LEVER ASSEMBLY,FAST IDLELEVER ASSEMBLY,FAST IDLE
-
2141703 LEVER,PRIMERLEVER,PRIMER
-
2212733 IDLE WIREIDLE WIRE
-
23110241 ACTUATOR,PRIMERACTUATOR,PRIMER
