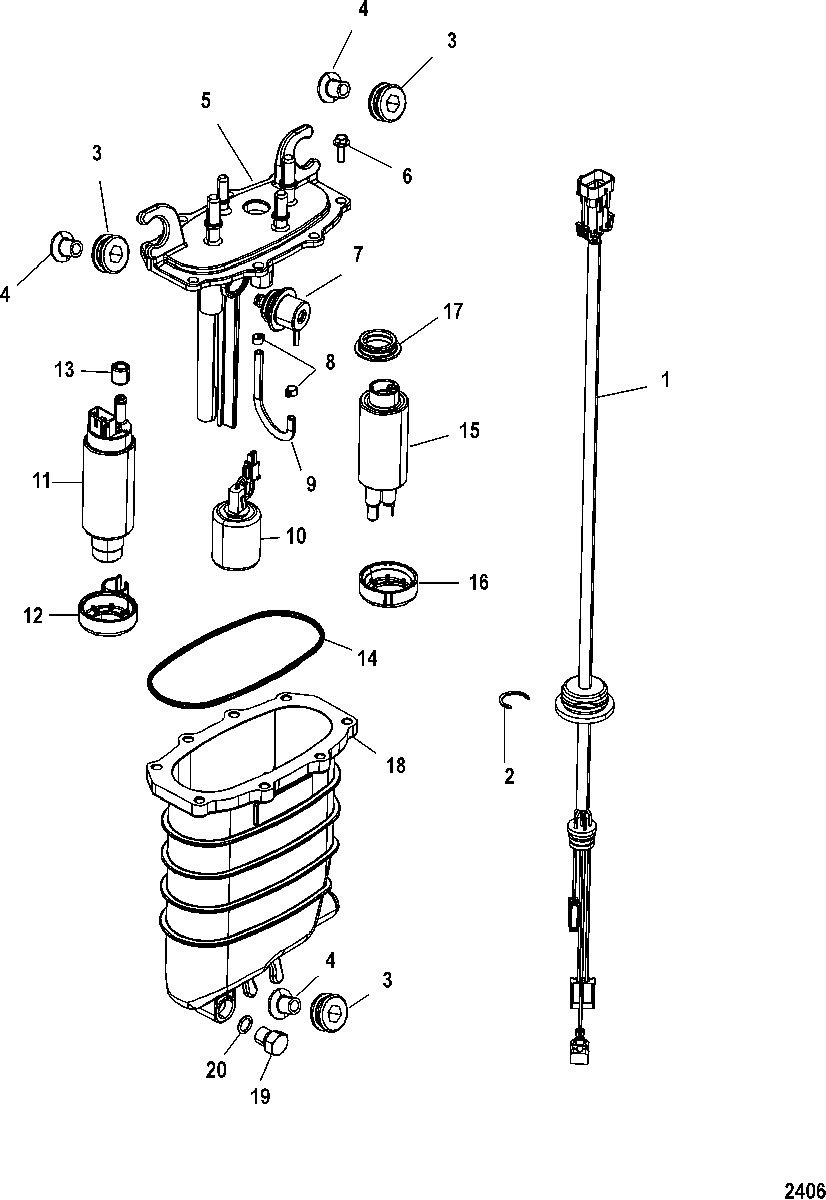

Fuel Supply Module для Mercury - 275 VERADO (4-STROKE)(6 CYL.) 1B381712 THRU 1B517433
-
№АртикулНазвание
-
-8M0130899 MODULE, Fuel SupplyMODULE, Fuel Supply
-
184-8M0130900 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
253-880596515 CLIPCLIP
-
325-855362001 GROMMETGROMMET
-
423-855364 BUSHINGBUSHING
-
5880596T50 COVER KITCOVER KIT
-
610-880596513 SCREWSCREW
-
7880596503 REGULATOR, With O-RingsREGULATOR, With O-Rings
-
854-880596512 CLAMPCLAMP
-
932-880596A05 HOSEHOSE
-
108M6000359 FLOATFLOAT
-
11880596T55 PUMP ASSEMBLY, Fuel - High PressurePUMP ASSEMBLY, Fuel - High Pressure
-
12880596506 SEALSEAL
-
1326-880596507 SEALSEAL
-
1426-880596502 SEALSEAL
-
15880596T58 PUMP KIT, Fuel - LiftPUMP KIT, Fuel - Lift
-
16880596509 ISOLATORISOLATOR
-
1726-880596510 SEALSEAL
-
18880596501 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
1919-880596516 PLUGPLUG
-
2025-880596517 O-RINGO-RING
-
-26-880596A01 REPAIR KIT, SealREPAIR KIT, Seal
-
-889283A01 TOOL KIT, Fuel PrimingTOOL KIT, Fuel Priming
