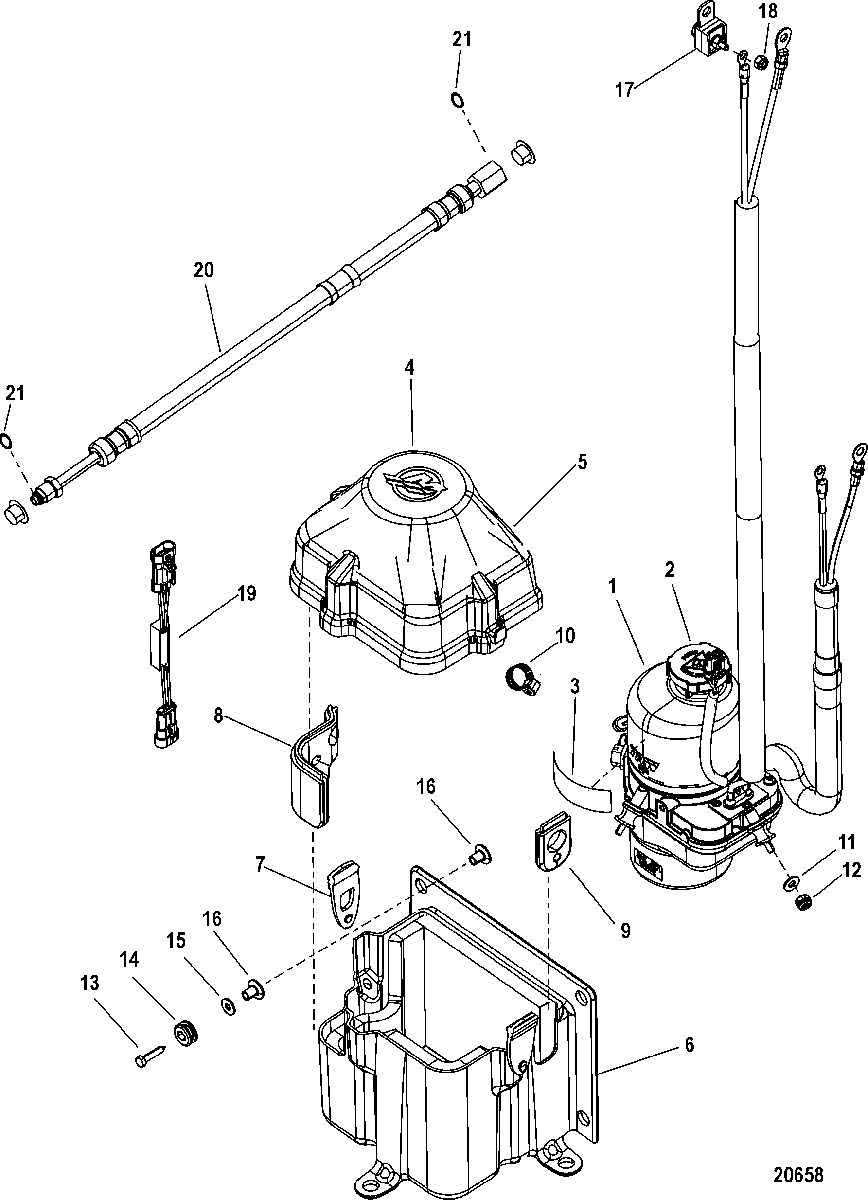

Pump Kit-Power Steering(8M0080200/8M0080201) для Mercury - 275 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122
-
№АртикулНазвание
-
-8M0131262 PUMP KIT, Power Steering (12 Feet)PUMP KIT, Power Steering (12 Feet)
-
-8M0131263 PUMP KIT, Power Steering (24 Feet)PUMP KIT, Power Steering (24 Feet)
-
1NSS NOT SOLD SEPARATE, PUMPNOT SOLD SEPARATE, PUMP
-
2892485003 CAP, PumpCAP, Pump
-
3NSS NOT SOLD SEPARATE, DECAL, Fluid TypeNOT SOLD SEPARATE, DECAL, Fluid Type
-
4893364A05 ENCLOSURE ASSEMBLY, Complete-Power Steering Pump
(Complete Enclosure Assembly fits all versions)ENCLOSURE ASSEMBLY, Complete-Power Steering Pump
(Complete Enclosure Assembly fits all versions) -
-893365A03 COVER ASSEMBLY, Top/Bottom, Power Steering PumpCOVER ASSEMBLY, Top/Bottom, Power Steering Pump
-
5893365T02 ENCLOSURE ASSEMBLY, Top, Power Steering PumpENCLOSURE ASSEMBLY, Top, Power Steering Pump
-
68M0080707 ENCLOSURE ASSEMBLY, Bottom-Power Steering PumpENCLOSURE ASSEMBLY, Bottom-Power Steering Pump
-
7889531 STRAPSTRAP
-
825-893368001 GROMMETGROMMET
-
925-893369 GROMMETGROMMET
-
1054-815504105 CLAMP, Worm Gear (11-18 mm)CLAMP, Worm Gear (11-18 mm)
-
1112-4002316 WASHERWASHER
-
1211-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1310-895378 SCREW, (M6)SCREW, (M6)
-
1425-895319 GROMMETGROMMET
-
1512-4002316 WASHERWASHER
-
1623-895320F1 BUSHINGBUSHING
-
1788-79023T92 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
1811-20184 NUT, (1/4-28X7/32)NUT, (1/4-28X7/32)
-
198M0026568 HARNESS ASSEMBLY, Signal DriverHARNESS ASSEMBLY, Signal Driver
-
2032-897643A01 HOSE KIT, DampeningHOSE KIT, Dampening
-
2125-89879 O-RING, (.301 x .064)O-RING, (.301 x .064)
