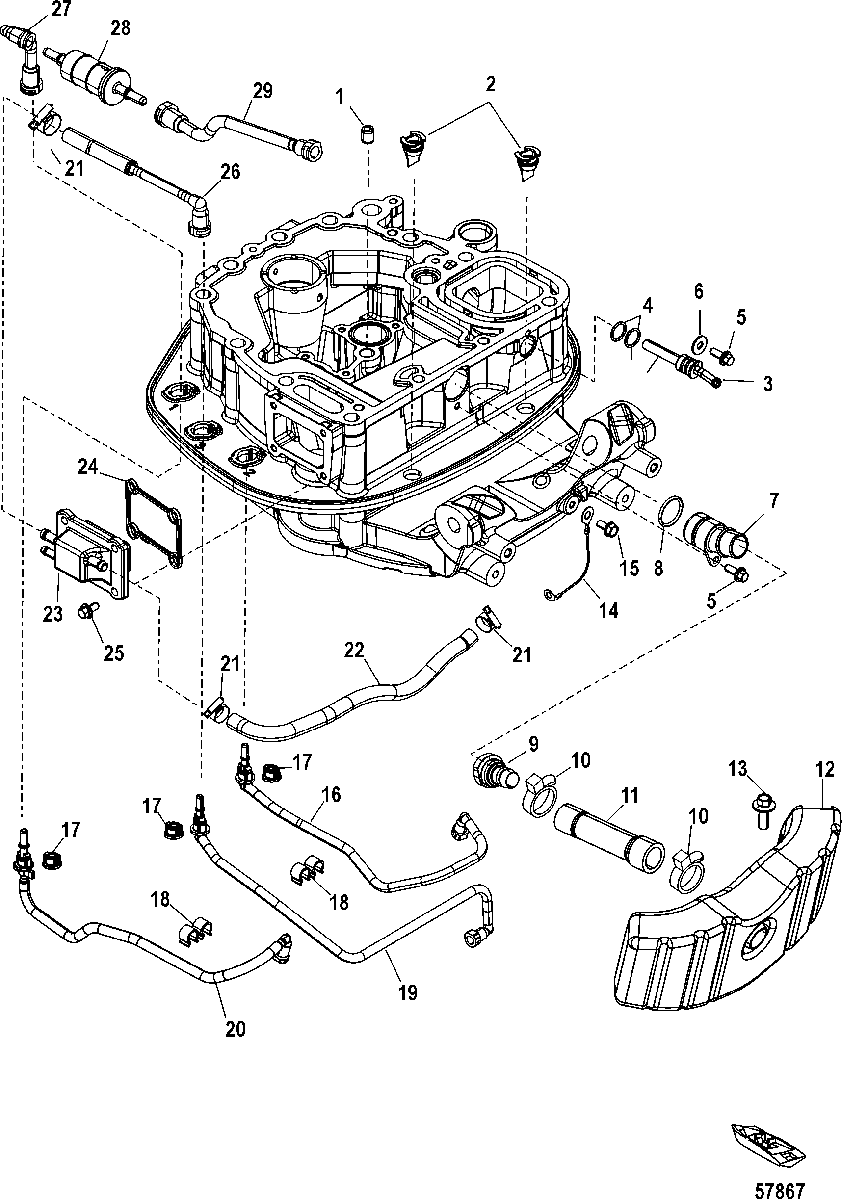

Adaptor Plate Hose Routings для Mercury - 275 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up
-
№АртикулНазвание
-
117-884474001 PIN, Dowel (12 mm)PIN, Dowel (12 mm)
-
2888819002 DRAIN, CowlDRAIN, Cowl
-
322-888461A01 FITTING KITFITTING KIT
-
425-892446 O-RING, (14 X 1.78 MM)O-RING, (14 X 1.78 MM)
-
510-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
612-4002316 WASHERWASHER
-
722-889792A01 FITTING KIT, Idle ExhaustFITTING KIT, Idle Exhaust
-
825-889828 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
922-889846 FITTINGFITTING
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1132-888981001 HOSE, Idle ExhaustHOSE, Idle Exhaust
-
12892384T PLENUM, ExhaustPLENUM, Exhaust
-
1310-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
1488238A21 CABLE ASSEMBLYCABLE ASSEMBLY
-
1510-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
1632-8M0084774 HOSE, Manifold Reference , LowerHOSE, Manifold Reference , Lower
-
1725-884546 GROMMETGROMMET
-
18888523001 CLIPCLIP
-
1932-8M0129144 HOSE, Water In, LowerHOSE, Water In, Lower
-
2032-8M0084660 HOSE, Fuel Out, Fuel Supply ModuleHOSE, Fuel Out, Fuel Supply Module
-
2154-815504104 CLAMP, Worm GearCLAMP, Worm Gear
-
2232-8M0108349 TUBING, (.312) (70 Inches Bulk), Cut to 21 InchesTUBING, (.312) (70 Inches Bulk), Cut to 21 Inches
-
23892562T01 HOUSING, ManifoldHOUSING, Manifold
-
24892117 SEALSEAL
-
2510-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
2632-887756 HOSE, Water In-UpperHOSE, Water In-Upper
-
2732-8M0087104 HOSE, Hi Pressure FilterHOSE, Hi Pressure Filter
-
2835-879885Q FILTER, Fuel In-LineFILTER, Fuel In-Line
-
2932-8M0087122 HOSE, Hi Pressure Filter to Fuel RailHOSE, Hi Pressure Filter to Fuel Rail
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-896966A07 ASSEMBLY, Long BlockASSEMBLY, Long Block
