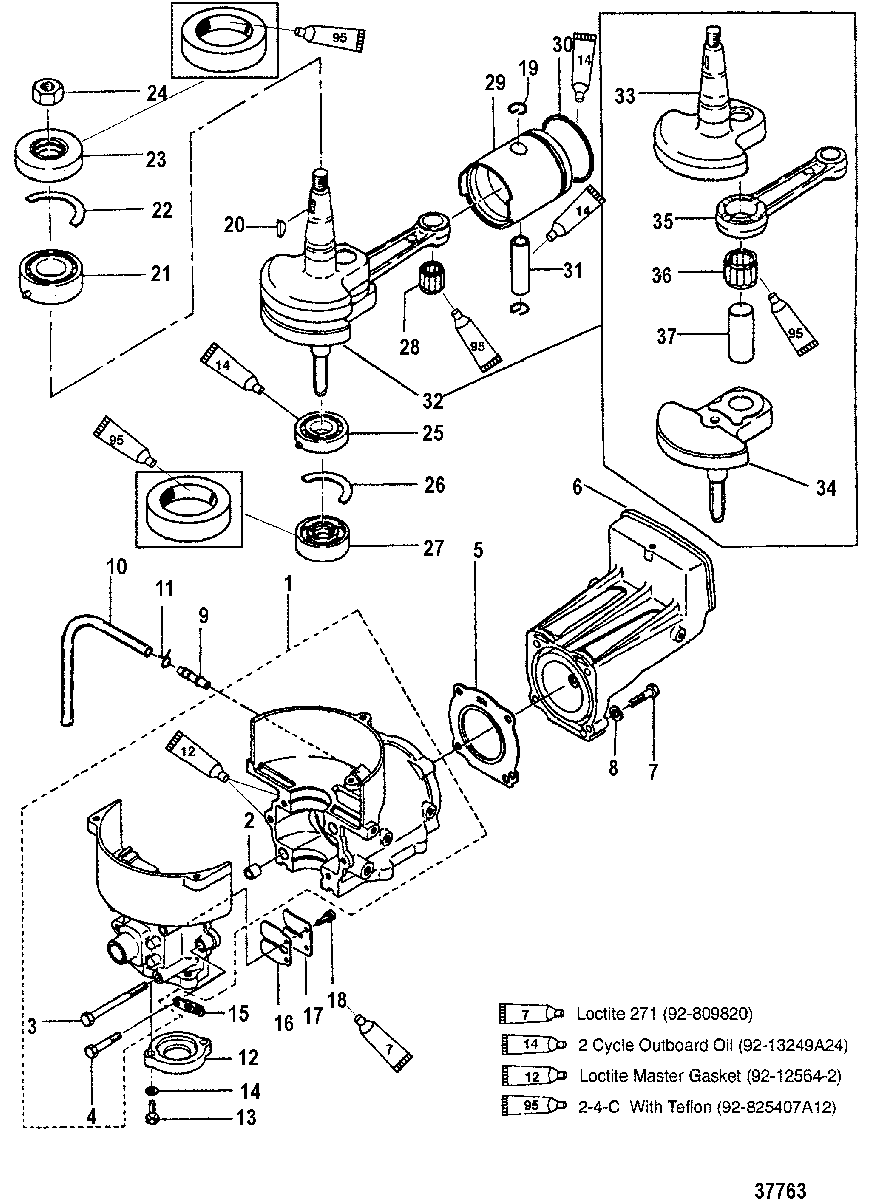

CYLINDER BLOCK, CRANKSHAFT AND PISTON для Mercury - 3 0A855097 THRU 0G710612
-
№АртикулНазвание
-
1878-91512 CYLINDER BLOCK/CRANKCASECYLINDER BLOCK/CRANKCASE
-
217-95218 PIN, DowelPIN, Dowel
-
310-898103167 BOLTBOLT
-
410-95298 BOLTBOLT
-
527-95299001 GASKETGASKET
-
6979-815062T2 CYLINDER HEAD
(2.5) SN# USA-0G574242/BEL-9973100 & UpCYLINDER HEAD
(2.5) SN# USA-0G574242/BEL-9973100 & Up -
6979-9152T2 CYLINDER HEAD
(2.5) SN# USA-0G574241/BEL-9973099 & BelowCYLINDER HEAD
(2.5) SN# USA-0G574241/BEL-9973099 & Below -
6979-815062T2 CYLINDER HEAD
(3)CYLINDER HEAD
(3) -
710-815063 SCREWSCREW
-
812-809931044 WASHERWASHER
-
922-8M0064617 CONNECTORCONNECTOR
-
1032-8M0057112 HOSE, (150 mm)HOSE, (150 mm)
-
1154-95224 CLIP
(USE WHERE APPLICABLE)CLIP
(USE WHERE APPLICABLE) -
12952251 HEADHEAD
-
1310-815065 SCREWSCREW
-
1412-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1554-8M0130961 CLAMPCLAMP
-
1634-95226 REED VALVEREED VALVE
-
1734-95304 STOPSTOP
-
1810-16067 SCREWSCREW
-
1953-952366 CLIP
SN# USA-0G574242/BEL-9973100 & UpCLIP
SN# USA-0G574242/BEL-9973100 & Up -
1953-952366 CLIP
SN# USA-0G574241/BEL-9973099 & BelowCLIP
SN# USA-0G574241/BEL-9973099 & Below -
2028-95229 KEYKEY
-
2130-898101936 BEARING, Ball (UPPER)BEARING, Ball (UPPER)
-
2295230 PLATE (UPPER)PLATE (UPPER)
-
2326-95232 SEAL, Oil (UPPER)SEAL, Oil (UPPER)
-
2411-95233 NUT
(USE WHERE APPLICABLE)NUT
(USE WHERE APPLICABLE) -
2530-95307 BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
2695231 PLATE (LOWER)PLATE (LOWER)
-
2726-95308 SEAL, Oil (LOWER)SEAL, Oil (LOWER)
-
2831-95227 BEARING, RollerBEARING, Roller
-
29779-8M0103754 PISTON
(STANDARD)PISTON
(STANDARD) -
29779-9183 PISTON
(.5MM O.S.)PISTON
(.5MM O.S.) -
3039-95234 RING, Piston
(STANDARD)RING, Piston
(STANDARD) -
3039-95309 RING, Piston
(.5MM O.S.)RING, Piston
(.5MM O.S.) -
31898101917 PIN, PistonPIN, Piston
-
32463-879147T16 CRANKSHAFT ASSEMBLY
SN# USA-0G574242/BEL-9973100 & UpCRANKSHAFT ASSEMBLY
SN# USA-0G574242/BEL-9973100 & Up -
32463-879147T16 CRANKSHAFT ASSEMBLY
SN# USA-0G574241/BEL-9973099 & BelowCRANKSHAFT ASSEMBLY
SN# USA-0G574241/BEL-9973099 & Below -
33463-813049 CRANKSHAFT
SN# USA-0G574242/BEL-9973100 & UpCRANKSHAFT
SN# USA-0G574242/BEL-9973100 & Up -
33463-8130491 CRANKSHAFT
SN# USA-0G574241/BEL-9973099 & BelowCRANKSHAFT
SN# USA-0G574241/BEL-9973099 & Below -
34463-813268 CRANKSHAFTCRANKSHAFT
-
35629-813269 CONNECTING RODCONNECTING ROD
-
3631-813270 BEARINGBEARING
-
37813271001 PIN, CrankPIN, Crank
-
-823825T07 POWERHEAD ASSEMBLY
(2.5) SN# USA-0G574242/BEL-9973100 & UpPOWERHEAD ASSEMBLY
(2.5) SN# USA-0G574242/BEL-9973100 & Up -
-8150891 POWERHEAD ASSEMBLY
(2.5) SN# USA-0G574241/BEL-9973099 & BelowPOWERHEAD ASSEMBLY
(2.5) SN# USA-0G574241/BEL-9973099 & Below -
-8151291 POWERHEAD ASSEMBLY
(3)POWERHEAD ASSEMBLY
(3) -
-27-898101928 GASKET SET, PowerheadGASKET SET, Powerhead
