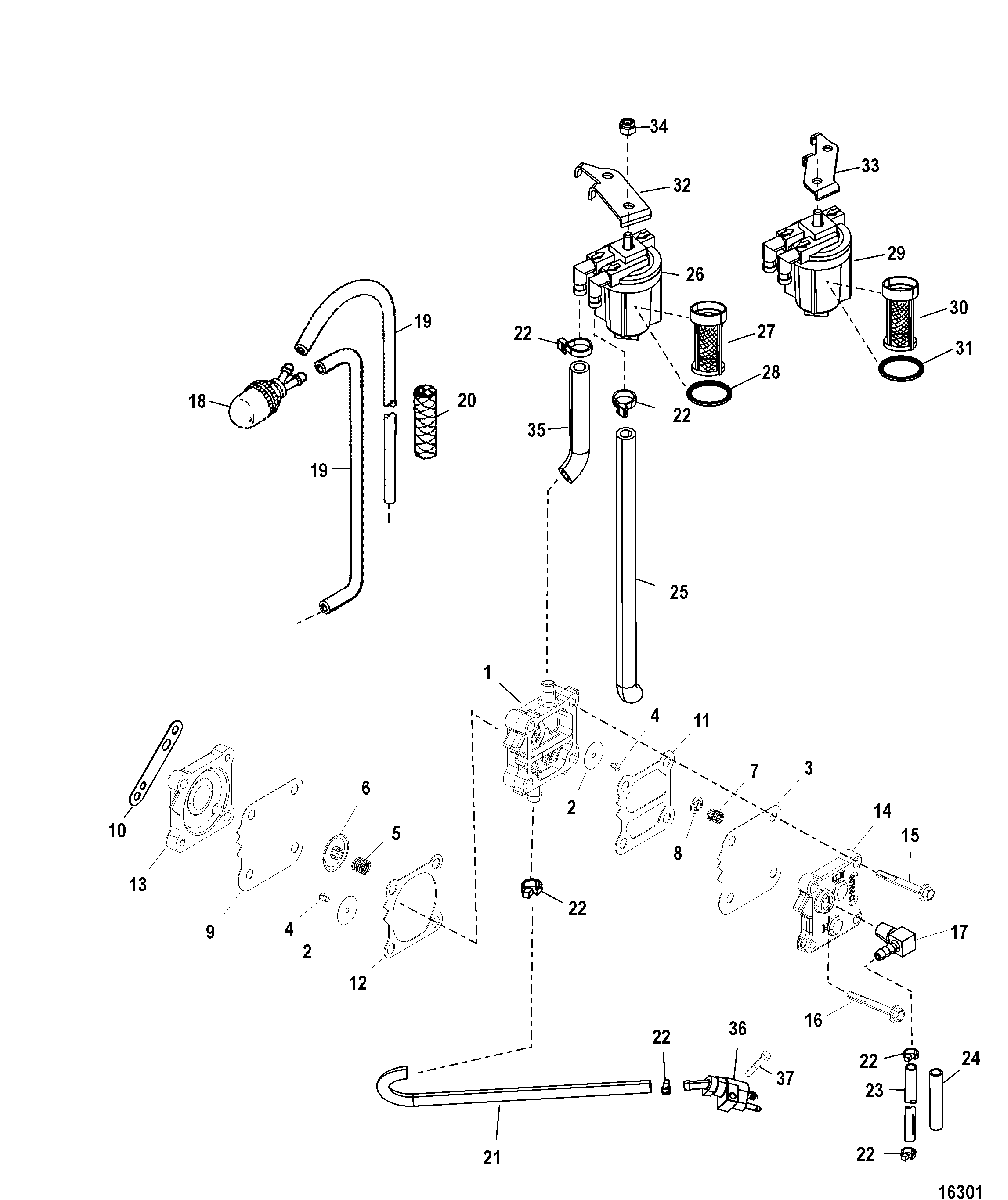

Fuel Pump(Manual) для Mercury - 30 (2 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
-14360A78 PUMP KIT, FuelPUMP KIT, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1027-987691 GASKETGASKET
-
11NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
12NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
13144303 BASEBASE
-
14987752 PLATEPLATE
-
1510-82104540 SCREW, (M5 x 40), PumpSCREW, (M5 x 40), Pump
-
1610-82130050 SCREW, (M6 x 50), Pump to CrankcaseSCREW, (M6 x 50), Pump to Crankcase
-
1722-433351 CONNECTOR, 90 Degree - With VibrasealCONNECTOR, 90 Degree - With Vibraseal
-
18858763 PRIMER BULBPRIMER BULB
-
1932-892024122 TUBING, (240.00 Inches Bulk) (Cut to 9.50 Inch Length)TUBING, (240.00 Inches Bulk) (Cut to 9.50 Inch Length)
-
2023-82538115 SLEEVE, (.500 x 5.00)SLEEVE, (.500 x 5.00)
-
2132-892038 HOSE, MoldedHOSE, Molded
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2332-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 3.25 Inch Length)HOSE, (.187) (26.00 Inches Bulk) (Cut to 3.25 Inch Length)
-
248507051 INSULATORINSULATOR
-
2532-892040 HOSE, MoldedHOSE, Molded
-
2635-889527T02 FILTER ASSEMBLY, Fuel
SN# 1B153168 & UpFILTER ASSEMBLY, Fuel
SN# 1B153168 & Up -
2635-889527T02 FILTER ASSEMBLY, Fuel
SN# 0P366572 & UpFILTER ASSEMBLY, Fuel
SN# 0P366572 & Up -
2735-896375Q01 FILTER KIT
(Quicksilver Brand)FILTER KIT
(Quicksilver Brand) -
2735-896375K01 FILTER KIT
(Mercury Brand)FILTER KIT
(Mercury Brand) -
2825-98277001 SEALSEAL
-
2935-8M0063726 FILTER ASSEMBLY, FuelFILTER ASSEMBLY, Fuel
-
3035-87946Q04 FILTER KIT, Fuel
(Quicksilver Brand)FILTER KIT, Fuel
(Quicksilver Brand) -
3035-87946K04 FILTER KIT, Fuel
(Mercury Brand)FILTER KIT, Fuel
(Mercury Brand) -
3125-897536 SEALSEAL
-
32889625002 BRACKET
(Use with 35-889527T02 Fuel Filter)BRACKET
(Use with 35-889527T02 Fuel Filter) -
33822387 BRACKET
(Use with 35-891642T03 Fuel Filter)BRACKET
(Use with 35-891642T03 Fuel Filter) -
3411-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
3532-892236 HOSE, Molded
(Use with 35-889527T02 Fuel Filter)HOSE, Molded
(Use with 35-889527T02 Fuel Filter) -
3532-892037 HOSE, Molded
(Use with 35-891642T03 Fuel Filter)HOSE, Molded
(Use with 35-891642T03 Fuel Filter) -
3622-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
3710-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
-27-822420A94 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
-
-808569T02 POWERHEAD ASSEMBLY
30 HPPOWERHEAD ASSEMBLY
30 HP -
-61-8M0063311 POWERHEAD ASSEMBLY
40 HPPOWERHEAD ASSEMBLY
40 HP
