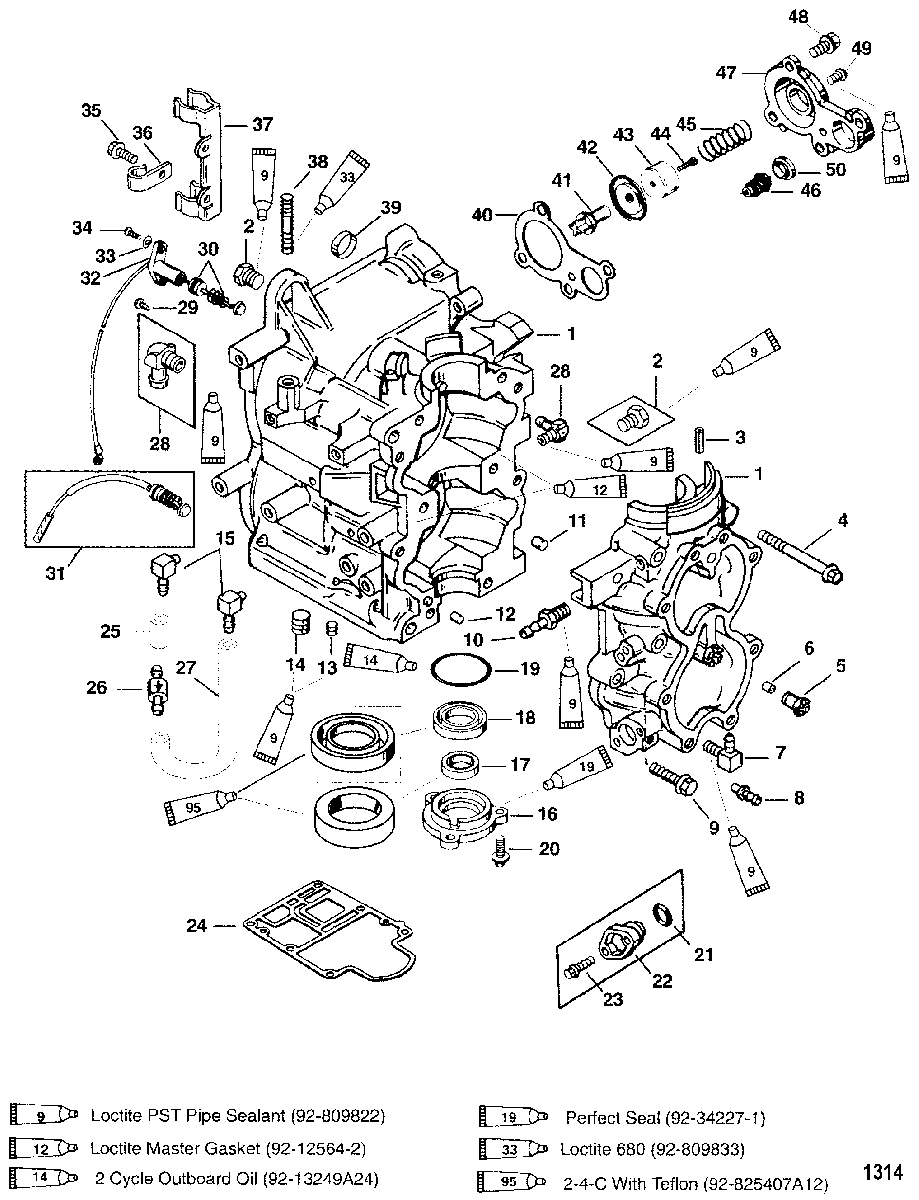

CYLINDER BLOCK(CONTINUED) для Mercury - 30 (2 CYL.) 9854537 THRU 0P016999
-
№АртикулНазвание
-
2125-48462 O-RING, (.614 x .070) (INCLUDED WITH REF #1)
MANUALO-RING, (.614 x .070) (INCLUDED WITH REF #1)
MANUAL -
228129962 COVER
MANUALCOVER
MANUAL -
2310-40011108 SCREW, (M5 x 20) Stainless Steel (HEX WASHER HEAD)
MANUALSCREW, (M5 x 20) Stainless Steel (HEX WASHER HEAD)
MANUAL -
2427-8M0000822 GASKET (INCLUDED W/ REF #1)GASKET (INCLUDED W/ REF #1)
-
2532-892024122 TUBING, (20.00 Feet Bulk) (Cut to 1-1/2 IN.)TUBING, (20.00 Feet Bulk) (Cut to 1-1/2 IN.)
-
2621-149126 CHECK VALVE (DOUBLE END)CHECK VALVE (DOUBLE END)
-
2732-892024122 TUBING, (20.00 Feet Bulk) (Cut to 5-1/2 IN.)TUBING, (20.00 Feet Bulk) (Cut to 5-1/2 IN.)
-
2822-996642 ELBOW (1/8-MALE)ELBOW (1/8-MALE)
-
2910-878609 SCREW, (#10-16 x .600) (SELF TAP)SCREW, (#10-16 x .600) (SELF TAP)
-
30787992 SENDER, Temperature
(DESIGN I)SENDER, Temperature
(DESIGN I) -
31787994 SENDER
(DESIGN II)SENDER
(DESIGN II) -
32889733 RETAINERRETAINER
-
3312-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
3410-878609 SCREW, (#10-16 x .600) (SELF TAP)SCREW, (#10-16 x .600) (SELF TAP)
-
3510-878609 SCREW, (#10-16 x .600) (QTY. OF 4 ON ELECTRIC)SCREW, (#10-16 x .600) (QTY. OF 4 ON ELECTRIC)
-
3654-816311T TIE STRAP, (8.00 Inches)
ELECTRICTIE STRAP, (8.00 Inches)
ELECTRIC -
378261151 CLAMP
ELECTRICCLAMP
ELECTRIC -
3816-8161949 STUD (M6 X 1 X 44 DOUBLE END)STUD (M6 X 1 X 44 DOUBLE END)
-
39NSS NOT SOLD SEPARATE, PLATENOT SOLD SEPARATE, PLATE
-
4027-8128672 GASKET
(INCLUDED WITH REF #1)GASKET
(INCLUDED WITH REF #1) -
418128821 POPPETPOPPET
-
42812887002 DIAPHRAGMDIAPHRAGM
-
4312-94182 WASHER (SPECIAL)WASHER (SPECIAL)
-
4410-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
4524-47968 SPRING
SN# USA 0G590000/BEL 9973100 & UpSPRING
SN# USA 0G590000/BEL 9973100 & Up -
4524-90392 SPRING
SN# USA 0G58999/BEL 9973099 & UpSPRING
SN# USA 0G58999/BEL 9973099 & Up -
46895338 THERMOSTAT, 54A°C (130A°F)THERMOSTAT, 54A°C (130A°F)
-
4614586 THERMOSTAT (120 DEGREES)THERMOSTAT (120 DEGREES)
-
478M0036859 COVERCOVER
-
4810-40011149 SCREW, (M8 x 25) Stainless Steel (INCL. W/ REF #1)SCREW, (M8 x 25) Stainless Steel (INCL. W/ REF #1)
-
4910-12896 SCREW, (#8-18 x .310) (SELF TAP)
(INTERNATIONAL)SCREW, (#8-18 x .310) (SELF TAP)
(INTERNATIONAL) -
5027-62386001 GASKET (INCLUDED W/ REF #1)GASKET (INCLUDED W/ REF #1)
-
-27-822420A94 GASKET SETGASKET SET
-
-808569T02 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
