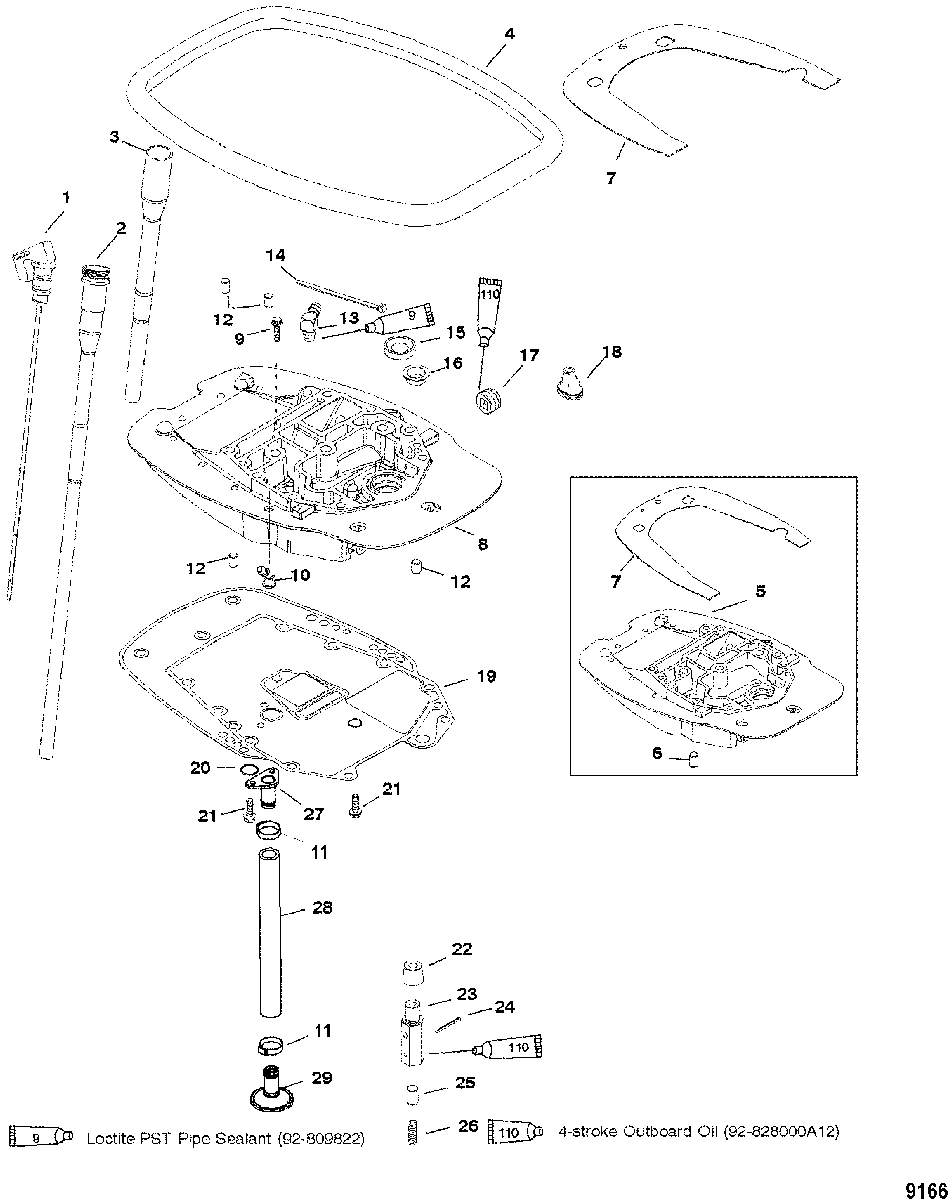

Adaptor Plate для Mercury - 30 (4-STROKE) 0G760300 THRU 0T408999
-
№АртикулНазвание
-
1825990 DIPSTICKDIPSTICK
-
2825989003 DIPSTICK TUBE
SN# 0T178499 & BelowDIPSTICK TUBE
SN# 0T178499 & Below -
3825989003 DIPSTICK TUBE
SN# 0T178500 & UpDIPSTICK TUBE
SN# 0T178500 & Up -
48560552 SEALSEAL
-
5825228A24 ADAPTOR PLATE
SN# 0T178499 & BelowADAPTOR PLATE
SN# 0T178499 & Below -
617-23784 PIN, Dowel
SN# 0T178499 & BelowPIN, Dowel
SN# 0T178499 & Below -
78289151 HEAT SHIELDHEAT SHIELD
-
8825228A17 ADAPTOR PLATE
SN# 0T178500 & UpADAPTOR PLATE
SN# 0T178500 & Up -
919-822464 PLUGPLUG
-
1010-4007455 SCREW, (M6 x 55)
SN# 0T178500 & UpSCREW, (M6 x 55)
SN# 0T178500 & Up -
1154-855228 CLAMPCLAMP
-
1217-23784 PIN, DowelPIN, Dowel
-
1322-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1526-828932 SEAL, Oil
(NON-BIGFOOT)SEAL, Oil
(NON-BIGFOOT) -
1526-16977 SEAL, Oil
(BIGFOOT)SEAL, Oil
(BIGFOOT) -
1623-856743 BUSHING
(NON-BIGFOOT)BUSHING
(NON-BIGFOOT) -
1722-384073 PLUG, PipePLUG, Pipe
-
1825-822408001 GROMMET
(NON-BIGFOOT)GROMMET
(NON-BIGFOOT) -
1927-892320001 GASKETGASKET
-
2025-845746 O-RINGO-RING
-
2110-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
22856592 DEFLECTOR, OilDEFLECTOR, Oil
-
23881872A1 BODY ASSEMBLY, Oil Pressure ReliefBODY ASSEMBLY, Oil Pressure Relief
-
2418-45882 COTTER PINCOTTER PIN
-
258252151 PLUNGERPLUNGER
-
2624-825216 SPRINGSPRING
-
27893765 PLATE, Oil Pickup-TopPLATE, Oil Pickup-Top
-
2832-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
29893700 BAFFLEBAFFLE
