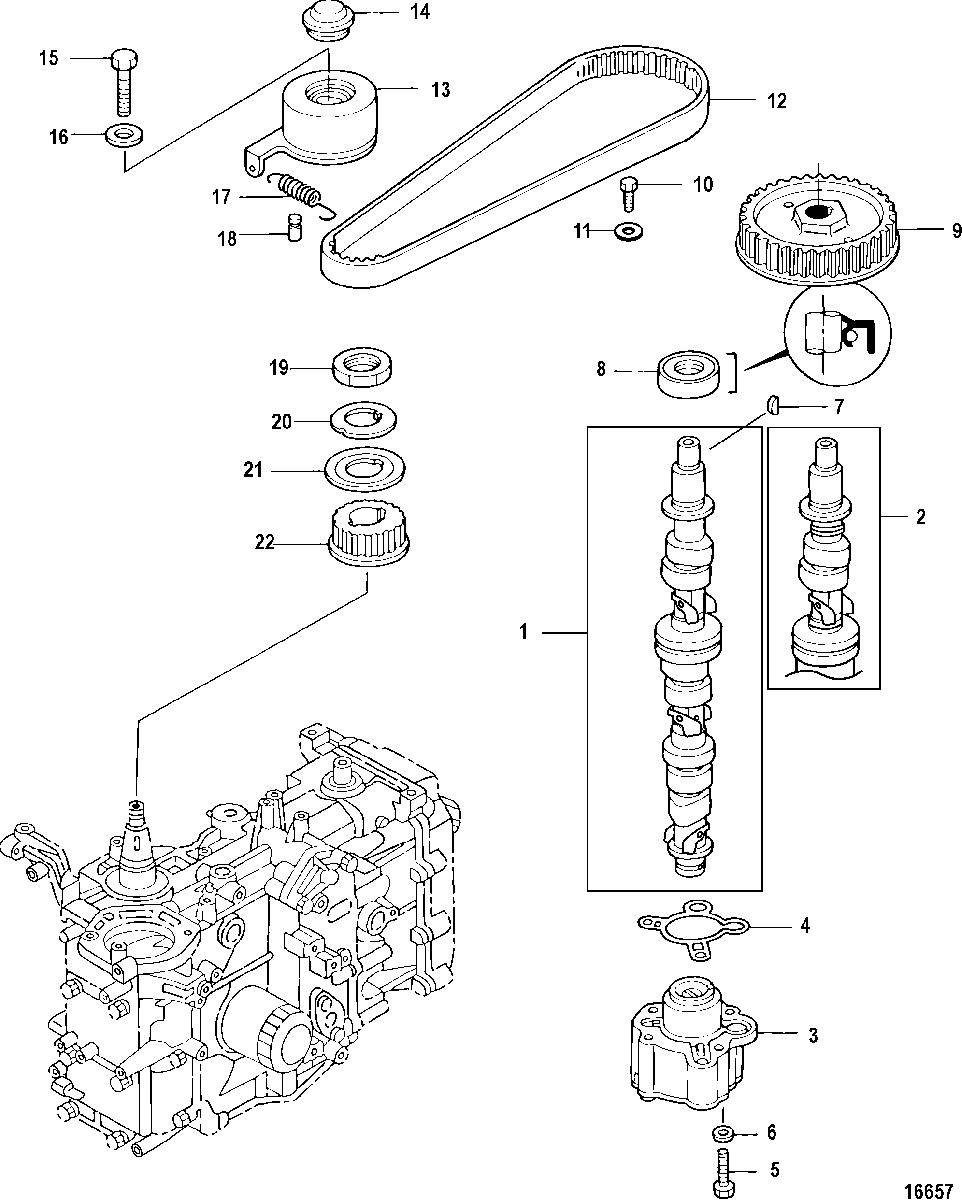

Camshaft/Oil Pump для Mercury - 30 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
1402-898103A83 CAMSHAFT
30 Horsepower SN# 0R122288 & BelowCAMSHAFT
30 Horsepower SN# 0R122288 & Below -
1402-898103A83 CAMSHAFT
30 Horsepower SN# 0R1222289 & UpCAMSHAFT
30 Horsepower SN# 0R1222289 & Up -
2402-898103A85 CAMSHAFT
25 Horsepower SN# 0R122288 & BelowCAMSHAFT
25 Horsepower SN# 0R122288 & Below -
2402-898103A85 CAMSHAFT
25 Horsepower SN# 0R122289 & UpCAMSHAFT
25 Horsepower SN# 0R122289 & Up -
38M0117630 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
427-853523002 GASKETGASKET
-
510-168308 BOLTBOLT
-
612-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
728-95229 KEYKEY
-
826-825455001 SEAL, OilSEAL, Oil
-
943-834973001 GEAR, DrivenGEAR, Driven
-
1010-803858001 BOLTBOLT
-
1112-895118 WASHERWASHER
-
1257-895120001 TIMING BELT
SN# OR406653 & BelowTIMING BELT
SN# OR406653 & Below -
1257-8M0072670 TIMING BELT
SN# OR406654 & UpTIMING BELT
SN# OR406654 & Up -
13895265 TENSIONER, Belt
SN# OR406653 & BelowTENSIONER, Belt
SN# OR406653 & Below -
14895266 COVER, TENSIONER
SN# OR406653 & BelowCOVER, TENSIONER
SN# OR406653 & Below -
1510-879194259 SCREW
SN# OR406653 & BelowSCREW
SN# OR406653 & Below -
1612-879194340 WASHER, Stainless Steel
SN# OR406653 & BelowWASHER, Stainless Steel
SN# OR406653 & Below -
1724-815093002 SPRING, Tensioner
SN# OR406653 & BelowSPRING, Tensioner
SN# OR406653 & Below -
1857-8M0072670 HOOK
SN# OR406653 & BelowHOOK
SN# OR406653 & Below -
1911-855679002 NUTNUT
-
2013-823032001 LOCKWASHERLOCKWASHER
-
21895119001 PLATEPLATE
-
22834955T02 PULLEY, DrivePULLEY, Drive
-
-889246T30 SHORT BLOCK
30 Horsepower SN# 0R122288 & BelowSHORT BLOCK
30 Horsepower SN# 0R122288 & Below -
-889246T30 SHORT BLOCK
30 Horsepower SN# 0R122289 & UpSHORT BLOCK
30 Horsepower SN# 0R122289 & Up -
-898103T34 SHORT BLOCK
25 HorsepowerSHORT BLOCK
25 Horsepower -
-27-8M0079064 GASKET SET, PowerheadGASKET SET, Powerhead
