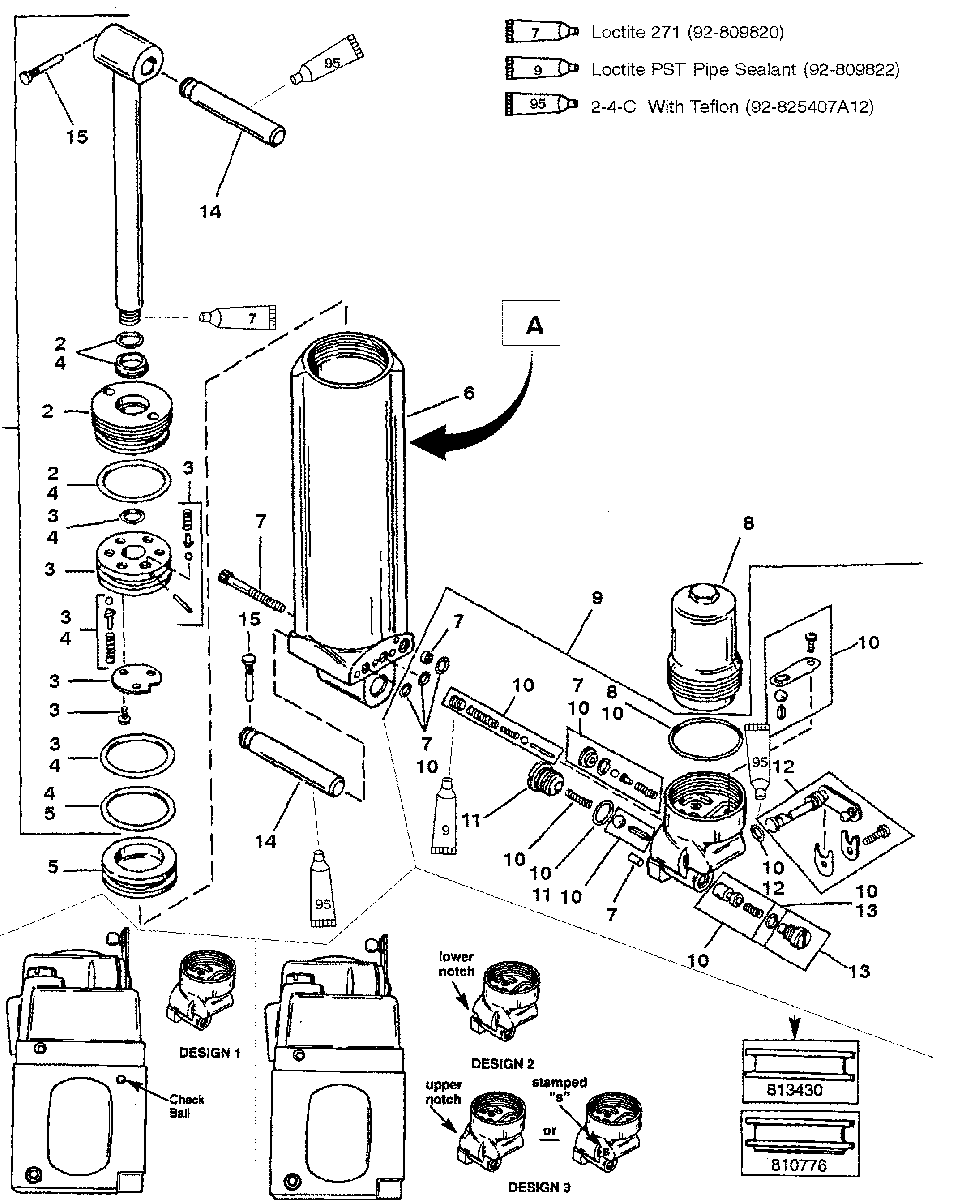

MAN. TILT COMPONENTS (DESIGN I) -L. SHAFT (S/N-C159200 & UP) для Mercury - 30 JET 0C159200 THRU 0G589999
-
№АртикулНазвание
-
-830150T2 POWER TRIM PUMPPOWER TRIM PUMP
-
1893943A01 SHOCK ROD KITSHOCK ROD KIT
-
225-893902A01 O RING REBUILD KITO RING REBUILD KIT
-
3NSS O RINGO RING
-
4810776A1 MEMORY PISTON ASSEMBLYMEMORY PISTON ASSEMBLY
-
58M0055016 CYLINDER ASSEMBLYCYLINDER ASSEMBLY
-
68M0090404 TRIM LIMIT VALVE KITTRIM LIMIT VALVE KIT
-
78M0055019 PUMP ASSEMBLYPUMP ASSEMBLY
-
8893907A02 MOTOR KITMOTOR KIT
-
922-8134351 RESERVOIR PLUGRESERVOIR PLUG
-
10893929A01 MANUAL RELEASE ASSEMBLYMANUAL RELEASE ASSEMBLY
-
118M0055018 MANIFOLD KITMANIFOLD KIT
-
1210-809876A1 SCREW KIT (MOTOR)SCREW KIT (MOTOR)
-
13809877A1 DRIVE SHAFTDRIVE SHAFT
-
1435-893912A02 FILTER KITFILTER KIT
-
15893913A02 P.O. CHECK ASSEMBLY KITP.O. CHECK ASSEMBLY KIT
-
-25-8M0089947 O RING KIT (COMPLETE TRIM)O RING KIT (COMPLETE TRIM)
-
1617-821539 GROOVE PINGROOVE PIN
-
1717-19607 ANCHOR PINANCHOR PIN
-
1817-822869001 PINPIN
-
-8M0118570 TRIM PUMP
(S/N-0D279349 & BELOW) INCLUDES ALL PARTS ON THIS PAGETRIM PUMP
(S/N-0D279349 & BELOW) INCLUDES ALL PARTS ON THIS PAGE -
-8M0118570 TRIM PUMP
(S/N-0D279350 & UP) INCLUDES ALL PARTS ON THIS PAGETRIM PUMP
(S/N-0D279350 & UP) INCLUDES ALL PARTS ON THIS PAGE -
18M0118572 SHOCK ROD ASSEMBLY KITSHOCK ROD ASSEMBLY KIT
-
2813428 CYLINDER END CAPCYLINDER END CAP
-
38134291 SHOCK PISTONSHOCK PISTON
-
4813432A2 CYLINDER REBUILD KITCYLINDER REBUILD KIT
-
5810776 MEMORY PISTON KIT
SEE FOOTNOTE AND ILLUSTRATIONMEMORY PISTON KIT
SEE FOOTNOTE AND ILLUSTRATION -
5893903A01 MEMORY PISTON KIT
SEE FOOTNOTE AND ILLUSTRATION SUPERSEDES TO ANOTHER PART NUMBERMEMORY PISTON KIT
SEE FOOTNOTE AND ILLUSTRATION SUPERSEDES TO ANOTHER PART NUMBER -
6810777 CYLINDER KIT
(DESIGN I) SEE ILLUSTRATIONCYLINDER KIT
(DESIGN I) SEE ILLUSTRATION -
6893918A01 CYLINDER KIT
(DESIGN II/III) SEE ILLUSTRATIONCYLINDER KIT
(DESIGN II/III) SEE ILLUSTRATION -
7893919A01 SCREW AND SEAL KIT-CYLINDERSCREW AND SEAL KIT-CYLINDER
-
8893920A01 ACCUMULATORACCUMULATOR
-
98M0118574 VALVE BLOCK ASSEMBLYVALVE BLOCK ASSEMBLY
-
10813456A4 REPAIR KIT
(DESIGN I/II)REPAIR KIT
(DESIGN I/II) -
1122-813458 PLUG KIT
(DESIGN I/II)PLUG KIT
(DESIGN I/II) -
10813456A4 REPAIR KIT
(DESIGN III)REPAIR KIT
(DESIGN III) -
1122-813458A2 PLUG KIT
(DESIGN III)PLUG KIT
(DESIGN III) -
12813457A1 CAM KIT
(S/N 0G236678 & BELOW)CAM KIT
(S/N 0G236678 & BELOW) -
128M0118574 CAM KIT
(S/N 0G236679 & UP)CAM KIT
(S/N 0G236679 & UP) -
1322-813459 PLUG KITPLUG KIT
-
1417-19607 PINPIN
-
1517-821539 GROOVE PINGROOVE PIN
