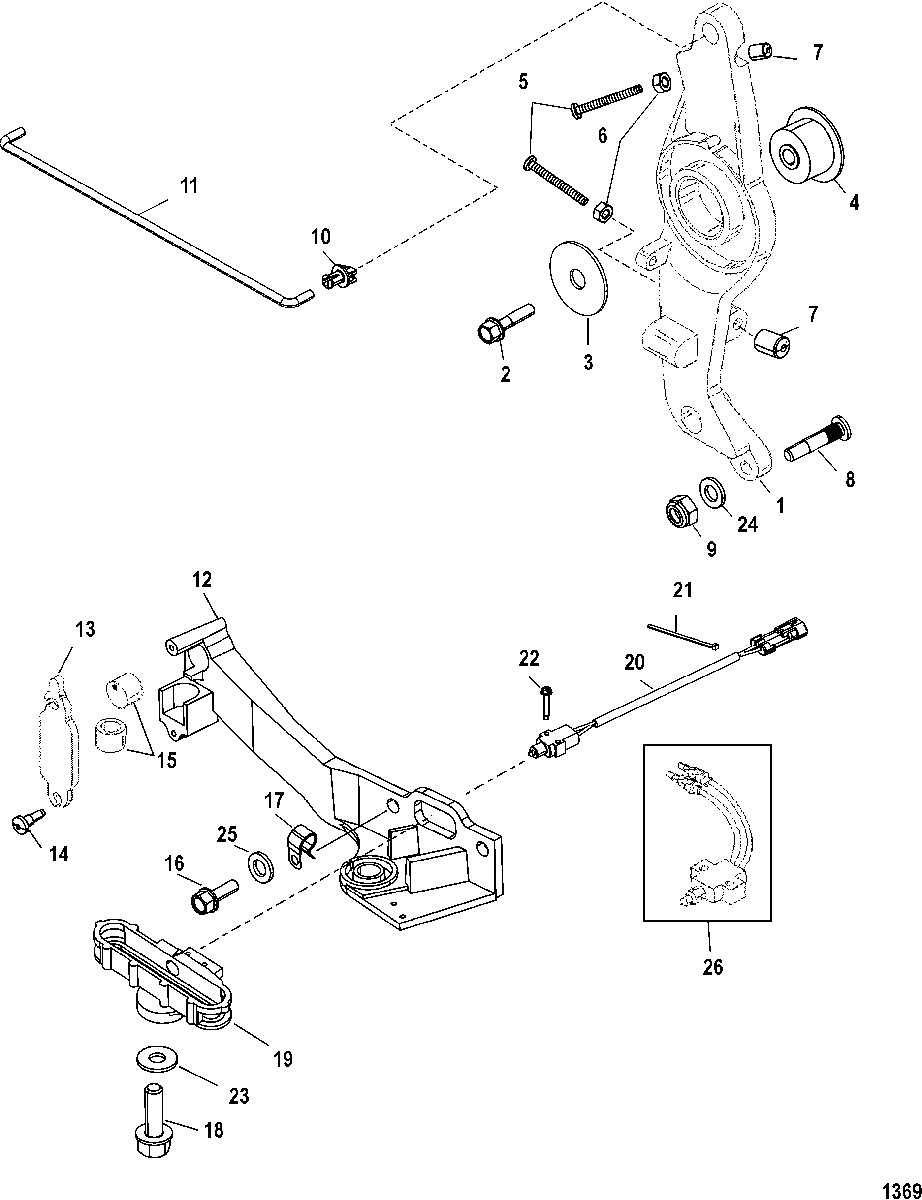

THROTTLE LINKAGE для Mercury - 3.0L EFI SEAPRO 0T409000 THRU 0T800999
-
№АртикулНазвание
-
18M0040987 LEVER, Throttle ControlLEVER, Throttle Control
-
210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
312-36042 WASHERWASHER
-
423-821113 BUSHINGBUSHING
-
510-40124 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
611-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
742942 CAPCAP
-
842927 INSERTINSERT
-
911-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1023-932481 BUSHINGBUSHING
-
118583541 LINKLINK
-
12824010T05 BRACKETBRACKET
-
13824016 LATCHLATCH
-
1410-42975 DRIVE SCREWDRIVE SCREW
-
15824015 CUP, Barrel RetainerCUP, Barrel Retainer
-
1610-82155025 SCREW, (M8 x 25 MM) Stainless SteelSCREW, (M8 x 25 MM) Stainless Steel
-
1754-859172 CLAMPCLAMP
-
1810-82155025 SCREW, (M8 x 25 MM) Stainless SteelSCREW, (M8 x 25 MM) Stainless Steel
-
198M0039052 GUIDE, RollerGUIDE, Roller
-
2087-8M0052939 SWITCH
(DESIGN II)SWITCH
(DESIGN II) -
2154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2210-82470620 SCREW, (M3.5 x 20)SCREW, (M3.5 x 20)
-
2312-43430 WASHERWASHER
-
2412-35459 WASHERWASHER
-
2512-36001 WASHERWASHER
-
2687-8M0052931 SWITCH
(DESIGN I)SWITCH
(DESIGN I)
