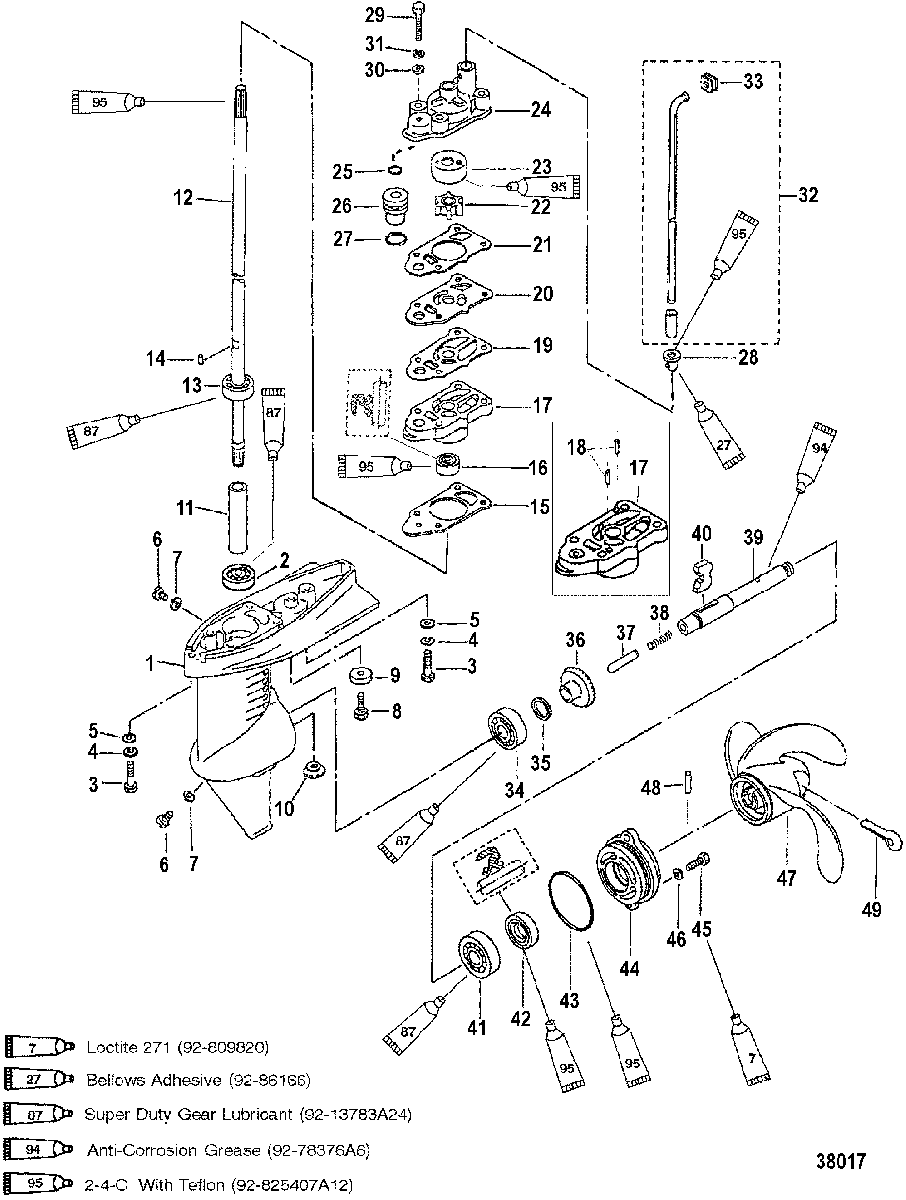

GEAR HOUSING ASSEMBLY(SHIFTABLE ENGINES) для Mercury - 3.3 0D901217 THRU 0G710612
-
№АртикулНазвание
-
-1600-8M0122311 GEAR HOUSING ASSEMBLY, Complete
SHORT - BLACKGEAR HOUSING ASSEMBLY, Complete
SHORT - BLACK -
-1600-8M0122312 GEAR HOUSING ASSEMBLY, Complete
LONG - BLACKGEAR HOUSING ASSEMBLY, Complete
LONG - BLACK -
-1668-825127A2 GEAR HOUSING ASSEMBLY
SHORT - GRAYGEAR HOUSING ASSEMBLY
SHORT - GRAY -
-1668-825127A3 GEAR HOUSING ASSEMBLY
LONG - GRAYGEAR HOUSING ASSEMBLY
LONG - GRAY -
11668-825126T06 GEAR HOUSING ASSEMBLY, Basic
(BLACK)GEAR HOUSING ASSEMBLY, Basic
(BLACK) -
11668-825127A1 GEAR HOUSING ASSEMBLY
(GRAY) (BASIC)GEAR HOUSING ASSEMBLY
(GRAY) (BASIC) -
230-95342 BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
310-16201 BOLTBOLT
-
413-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
622-953683 SCREW, DrainSCREW, Drain
-
78M0082880 GASKETGASKET
-
810-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
997-823913Q ANODEANODE
-
1043-8M0122680 GEARGEAR
-
1123-8104711 SPACERSPACER
-
1245-8M0116958 DRIVESHAFT
(SHORT)DRIVESHAFT
(SHORT) -
1245-8M0116959 DRIVESHAFT
(LONG)DRIVESHAFT
(LONG) -
1330-95342 BEARING, BallBEARING, Ball
-
1428-16155 KEYKEY
-
1527-161641 GASKETGASKET
-
1626-161621 SEAL, OilSEAL, Oil
-
1746-815113T03 HOUSING, Water Pump
SN# USA-0G574241/BEL-9973099 & BelowHOUSING, Water Pump
SN# USA-0G574241/BEL-9973099 & Below -
1746-815113T03 HOUSING, Lower Water Pump
SN# USA-0G574242/BEL-9973100 & UpHOUSING, Lower Water Pump
SN# USA-0G574242/BEL-9973100 & Up -
1817-9521811 PIN, Roll - Stainless Steel
SN# USA-0G574242/BEL-9973100 & UpPIN, Roll - Stainless Steel
SN# USA-0G574242/BEL-9973100 & Up -
1927-161603 GASKETGASKET
-
20161591 GUIDE PLATEGUIDE PLATE
-
2127-898101331 GASKETGASKET
-
2247-161543 IMPELLERIMPELLER
-
23161571 LINERLINER
-
2446-161561 HOUSING, Upper Water PumpHOUSING, Upper Water Pump
-
2525-161771 O-RINGO-RING
-
2625-161781 O-RINGO-RING
-
2723-161761 BUSHINGBUSHING
-
2825-953611 GROMMETGROMMET
-
2910-8M0063198 BOLTBOLT
-
3012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
3113-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
3232-953591 TUBE, Water
(SHORT)TUBE, Water
(SHORT) -
3232-953592 TUBE, Water
(LONG)TUBE, Water
(LONG) -
3325-953601 GROMMETGROMMET
-
3430-16128 BEARING, BallBEARING, Ball
-
3515-16141 SHIM, (0.1)SHIM, (0.1)
-
3643-8M0122680 GEARGEAR
-
37823050 PUSH RODPUSH ROD
-
3824-176671 SPRINGSPRING
-
3944-952911 PROPELLER SHAFTPROPELLER SHAFT
-
4052-823049 CLUTCHCLUTCH
-
4130-95344 BEARING, BallBEARING, Ball
-
4226-95348 SEAL, OilSEAL, Oil
-
4325-16131 O-RINGO-RING
-
44823051 HOUSING (BLACK)HOUSING (BLACK)
-
44825117 HOUSING (GRAY)HOUSING (GRAY)
-
44825116 HOUSING (BLACK)HOUSING (BLACK)
-
44825117 HOUSING (GRAY)HOUSING (GRAY)
-
4510-16705 BOLTBOLT
-
4510-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
4612-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
4748-815083A02 PROPELLER, Plastic (3 x 7.4 x 7)PROPELLER, Plastic (3 x 7.4 x 7)
-
4748-815084A02 PROPELLER, Aluminum (3 x 7.4 x 7)PROPELLER, Aluminum (3 x 7.4 x 7)
-
4817-815111Q02 PIN, Brass (PLASTIC PROP)PIN, Brass (PLASTIC PROP)
-
4817-815111Q02 SHEAR PIN, Stainless Steel (ALUMINUM PROP)SHEAR PIN, Stainless Steel (ALUMINUM PROP)
-
4918-95295 COTTER PINCOTTER PIN
-
-27-8M0082881 GASKET SET, Lower Unit
(SHIFTABLE ENGINES)GASKET SET, Lower Unit
(SHIFTABLE ENGINES) -
-8M0080264 REPAIR KIT, Water Pump
(SHIFTABLE ENGINES)REPAIR KIT, Water Pump
(SHIFTABLE ENGINES)
