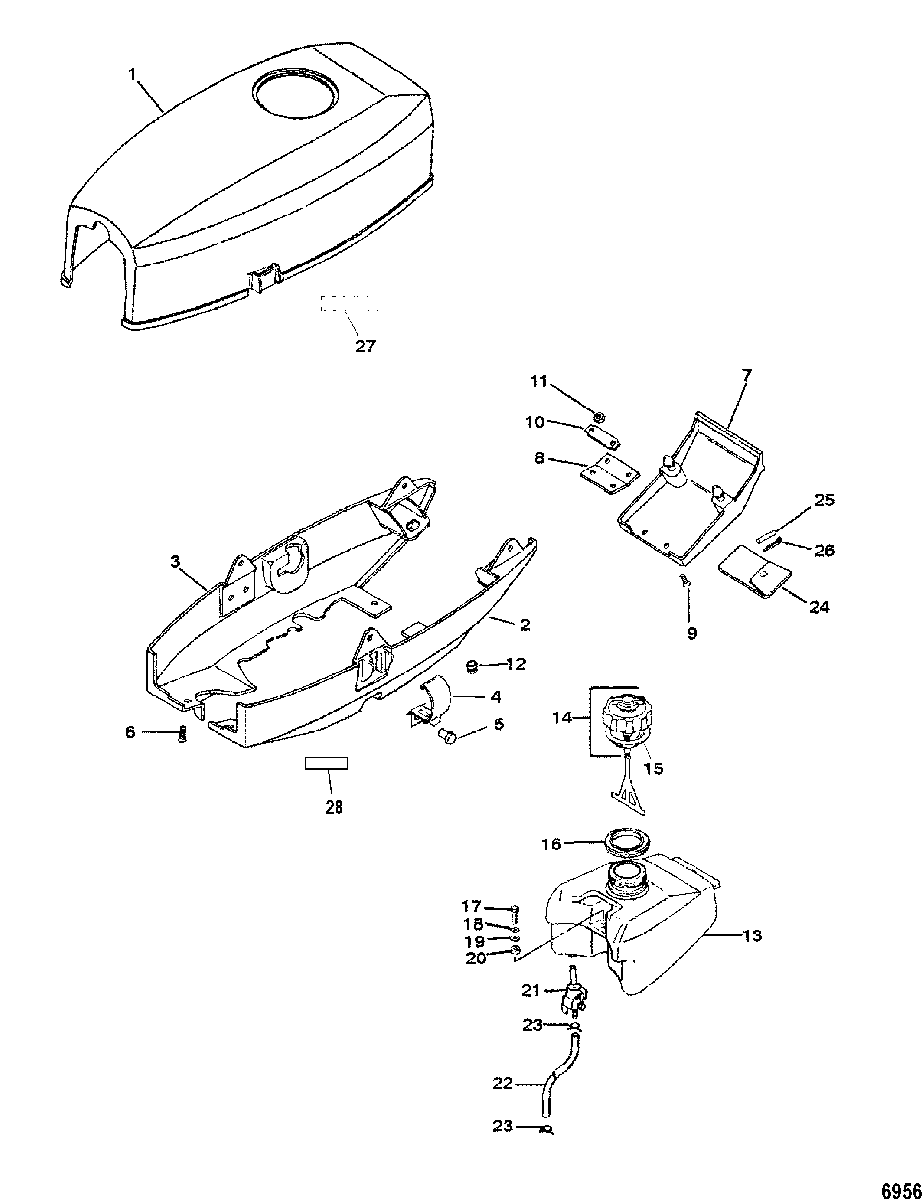

Cowl and Fuel Tank, 1B575523 and Up для Mercury - 3.3 0P401000 & Up
-
№АртикулНазвание
-
12189-8M0046053 TOP COWL ASSEMBLY
BlackTOP COWL ASSEMBLY
Black -
12189-8M0046051 TOP COWL ASSEMBLY
SilverTOP COWL ASSEMBLY
Silver -
2100-8M0145392 BOTTOM COWL, PortBOTTOM COWL, Port
-
3100-8M0145391 BOTTOM COWL, StarboardBOTTOM COWL, Starboard
-
48M0114258 LATCH KITLATCH KIT
-
517-825829 RIVETRIVET
-
610-16827 SCREWSCREW
-
78M0148363 COVERCOVER
-
8815105 HINGE, RearHINGE, Rear
-
910-8M0038337 BOLTBOLT
-
1095280 PLATEPLATE
-
1111-95385 NUTNUT
-
1225-95387 GROMMETGROMMET
-
131258-824963A03 TANK ASSEMBLY, FuelTANK ASSEMBLY, Fuel
-
1436-8M0060029 CAPCAP
-
1527-8M0065762 GASKETGASKET
-
1625-815109 SEALSEAL
-
1710-803858 BOLTBOLT
-
1813-16818 LOCKWASHERLOCKWASHER
-
1912-95392 WASHERWASHER
-
2023-95390 SPACERSPACER
-
2122-95393 VALVEVALVE
-
2232-8M0057113 LINE, Fuel (1000 mm)LINE, Fuel (1000 mm)
-
2354-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
2491-95399 TOOL KITTOOL KIT
-
2517-815111Q02 SHEAR PIN, Stainless SteelSHEAR PIN, Stainless Steel
-
2618-95295 COTTER PINCOTTER PIN
-
2737-804660A06 DECAL, EPA Label InformationDECAL, EPA Label Information
-
2837-8240857 DECAL, Fuel LeverDECAL, Fuel Lever
