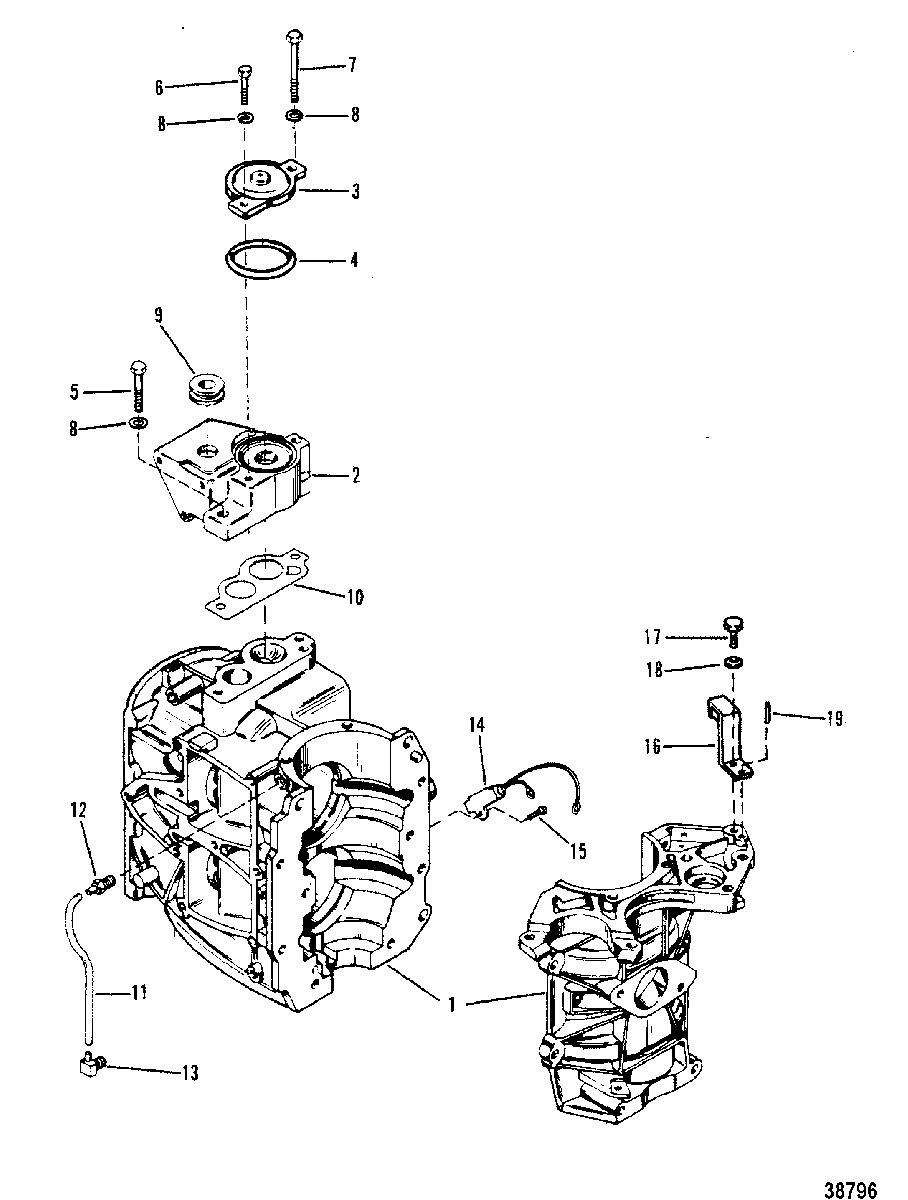

CYLINDER BLOCK AND THERMOSTAT для Mercury - 35 (2 CYL.) 209608 & Up
-
№АртикулНазвание
-
1851-7940A6 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
266843T BRACKET, COIL MOUNTINGBRACKET, COIL MOUNTING
-
399436A1 COVER ASSEMBLY, COIL BRACKETCOVER ASSEMBLY, COIL BRACKET
-
425-823683 O-RING, COVERO-RING, COVER
-
510-31984 SCREW, (.312-18 x 1.375), COIL MOUNTING BRACKET TO BLOCKSCREW, (.312-18 x 1.375), COIL MOUNTING BRACKET TO BLOCK
-
610-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00), COVERSCREW AND LOCKWASHER, (.312-18 x 1.00), COVER
-
710-58414 SCREW, COVER AND COIL BRACKET TO BLOCK (2-1/2")SCREW, COVER AND COIL BRACKET TO BLOCK (2-1/2")
-
813-26993 LOCKWASHER, (.312), COIL MOUNTING BRACKET SCREWLOCKWASHER, (.312), COIL MOUNTING BRACKET SCREW
-
925-39597 GROMMET, COIL MOUNTING BRACKETGROMMET, COIL MOUNTING BRACKET
-
1027-66847 GASKET, COIL MOUNTING BRACKET TO BLOCKGASKET, COIL MOUNTING BRACKET TO BLOCK
-
1132-9938779 HOSE, CYLINDER BLEED (8")HOSE, CYLINDER BLEED (8")
-
1221-42866 CHECK VALVE, CYLINDER BLEED (TOP)CHECK VALVE, CYLINDER BLEED (TOP)
-
1321-42863 CHECK VALVE, CYLINDER BLEED (BOTTOM)CHECK VALVE, CYLINDER BLEED (BOTTOM)
-
1458124A27 SWITCH ASSEMBLY
(BOLT/NUT CONNECTORS)SWITCH ASSEMBLY
(BOLT/NUT CONNECTORS) -
1458124A27 SWITCH
(BULLET CONNECTORS)SWITCH
(BULLET CONNECTORS) -
1510-62568 SCREW, (#10-16 x .375), MERCURY SWITCH TO EXHAUST COVERSCREW, (#10-16 x .375), MERCURY SWITCH TO EXHAUST COVER
-
1676184 INDICATOR, TIMING
ELECTRICINDICATOR, TIMING
ELECTRIC -
1710-25299 SCREW, (.312-18 x .75), INDICATOR ATTACHING
ELECTRICSCREW, (.312-18 x .75), INDICATOR ATTACHING
ELECTRIC -
1812-20084 WASHER, (.328 x .562 x .062), INDICATOR ATTACHING SCREW
ELECTRICWASHER, (.328 x .562 x .062), INDICATOR ATTACHING SCREW
ELECTRIC -
1917-29908 PIN, INDICATOR LOCATING
ELECTRICPIN, INDICATOR LOCATING
ELECTRIC -
-27-78028A78 GASKET SETGASKET SET
