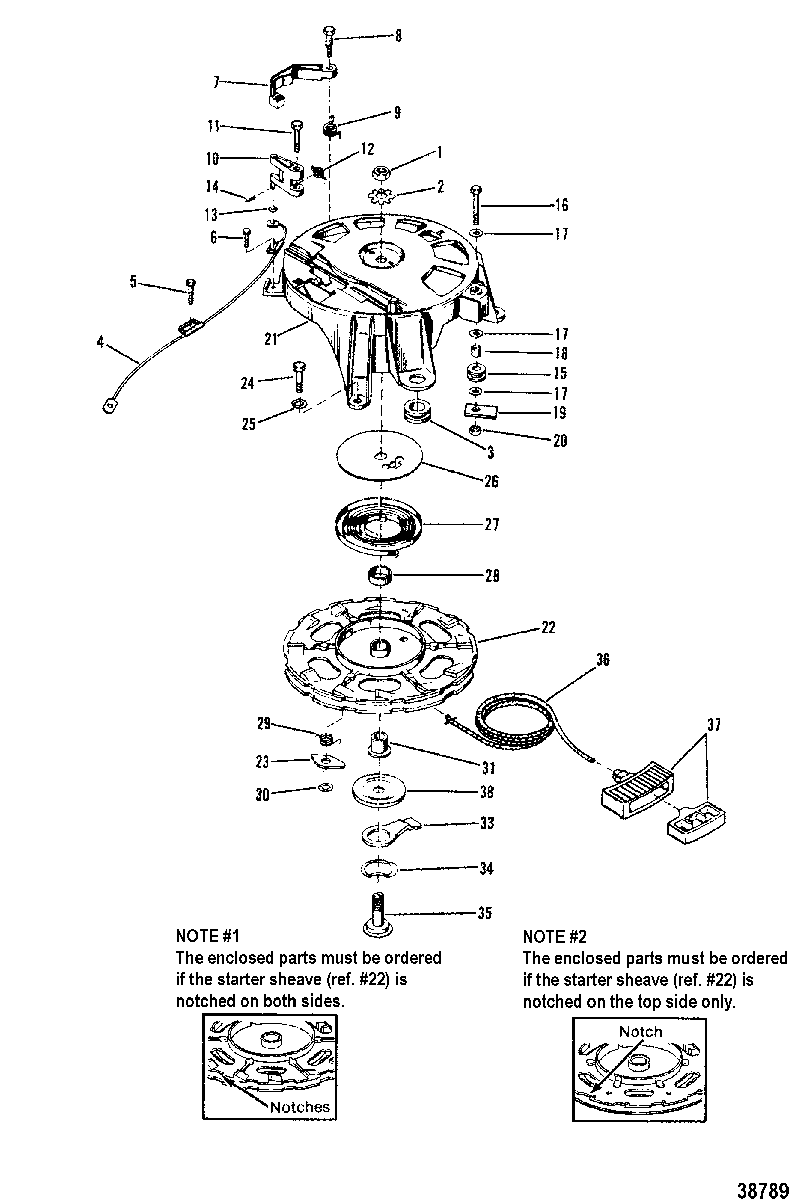

STARTER REWIND для Mercury - 35 (2 CYL.) 6445653 THRU 0B110788
-
№АртикулНазвание
-
111-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
214-61004 TAB WASHER, SHREAVE SHAFT NUTTAB WASHER, SHREAVE SHAFT NUT
-
325-39597 GROMMET, STARTER HOUSINGGROMMET, STARTER HOUSING
-
476141 CABLE ASSEMBLY, INTERLOCK
MANUALCABLE ASSEMBLY, INTERLOCK
MANUAL -
510-32228 SCREW, (#10-32 x .625)
MANUALSCREW, (#10-32 x .625)
MANUAL -
610-69022 SCREW, (#10-32 x .500) Stainless Steel
MANUALSCREW, (#10-32 x .500) Stainless Steel
MANUAL -
7428201 CAM, INTERLOCK
MANUALCAM, INTERLOCK
MANUAL -
810-76138 SCREW, (.312-18 x 1.120)
MANUALSCREW, (.312-18 x 1.120)
MANUAL -
924-761401 SPRING
MANUALSPRING
MANUAL -
1079371 ACTUATOR
MANUALACTUATOR
MANUAL -
1110-76137 SCREW
MANUALSCREW
MANUAL -
1224-76139 SPRING
MANUALSPRING
MANUAL -
1312-30191 WASHER
MANUALWASHER
MANUAL -
1418-26811 COTTER PIN
MANUALCOTTER PIN
MANUAL -
1555860 PULLEY, STARTERPULLEY, STARTER
-
1610-45210 SCREW, (.190-32 x 1.250)SCREW, (.190-32 x 1.250)
-
1712-22887 WASHER, PULLEY SCREWWASHER, PULLEY SCREW
-
1823-309772 SPACER, PULLEY SCREWSPACER, PULLEY SCREW
-
1994121 RETAINER, STARTER ROPERETAINER, STARTER ROPE
-
2011-24656 NUT, PULLEY SCREWNUT, PULLEY SCREW
-
2176079A8 HOUSING ASSEMBLY, Starter
SEE NOTE #1 ON ILLUSTRATIONHOUSING ASSEMBLY, Starter
SEE NOTE #1 ON ILLUSTRATION -
21760792 HOUSING, Starter
SEE NOTE #2 ON ILLUSTRATIONHOUSING, Starter
SEE NOTE #2 ON ILLUSTRATION -
2250-94338A1 SHEAVE ASSEMBLY, Starter
SEE NOTE #1 ON ILLUSTRATIONSHEAVE ASSEMBLY, Starter
SEE NOTE #1 ON ILLUSTRATION -
2250-44255A1 SHEAVE ASSEMBLY, Starter
SEE NOTE #2 ON ILLUSTRATIONSHEAVE ASSEMBLY, Starter
SEE NOTE #2 ON ILLUSTRATION -
2391936 PAWL, Starter
SEE NOTE #1 ON ILLUSTRATIONPAWL, Starter
SEE NOTE #1 ON ILLUSTRATION -
2344508 PAWL, Starter
SEE NOTE #2 ON ILLUSTRATIONPAWL, Starter
SEE NOTE #2 ON ILLUSTRATION -
2410-88759 SCREW (1")SCREW (1")
-
2410-88760 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
2513-26993 LOCKWASHER, (.312), STARTER HOUSING SCREWLOCKWASHER, (.312), STARTER HOUSING SCREW
-
2661002 PLATE, STARTER REWINDPLATE, STARTER REWIND
-
2724-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2823-87649 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2924-87651 SPRING, STARTER PAWLSPRING, STARTER PAWL
-
3053-87706 E RING, STARTER PAWLE RING, STARTER PAWL
-
3123-63061 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3394962 LEVERLEVER
-
3413-20160 WAVE WASHERWAVE WASHER
-
3587656 SHEAVE SHAFTSHEAVE SHAFT
-
3650-12066Q10 CABLE ASSEMBLY, StarterCABLE ASSEMBLY, Starter
-
3647341A11 ROPE AND HANDLE KIT, Manual/Emergency Start
(FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start
(FOR MANUAL STARTING) -
3779470A1 RETAINER KIT, RopeRETAINER KIT, Rope
-
3812-35559 WASHER, STARTER REWINDWASHER, STARTER REWIND
-
-76079A8 STARTER ASSEMBLY, RewindSTARTER ASSEMBLY, Rewind
