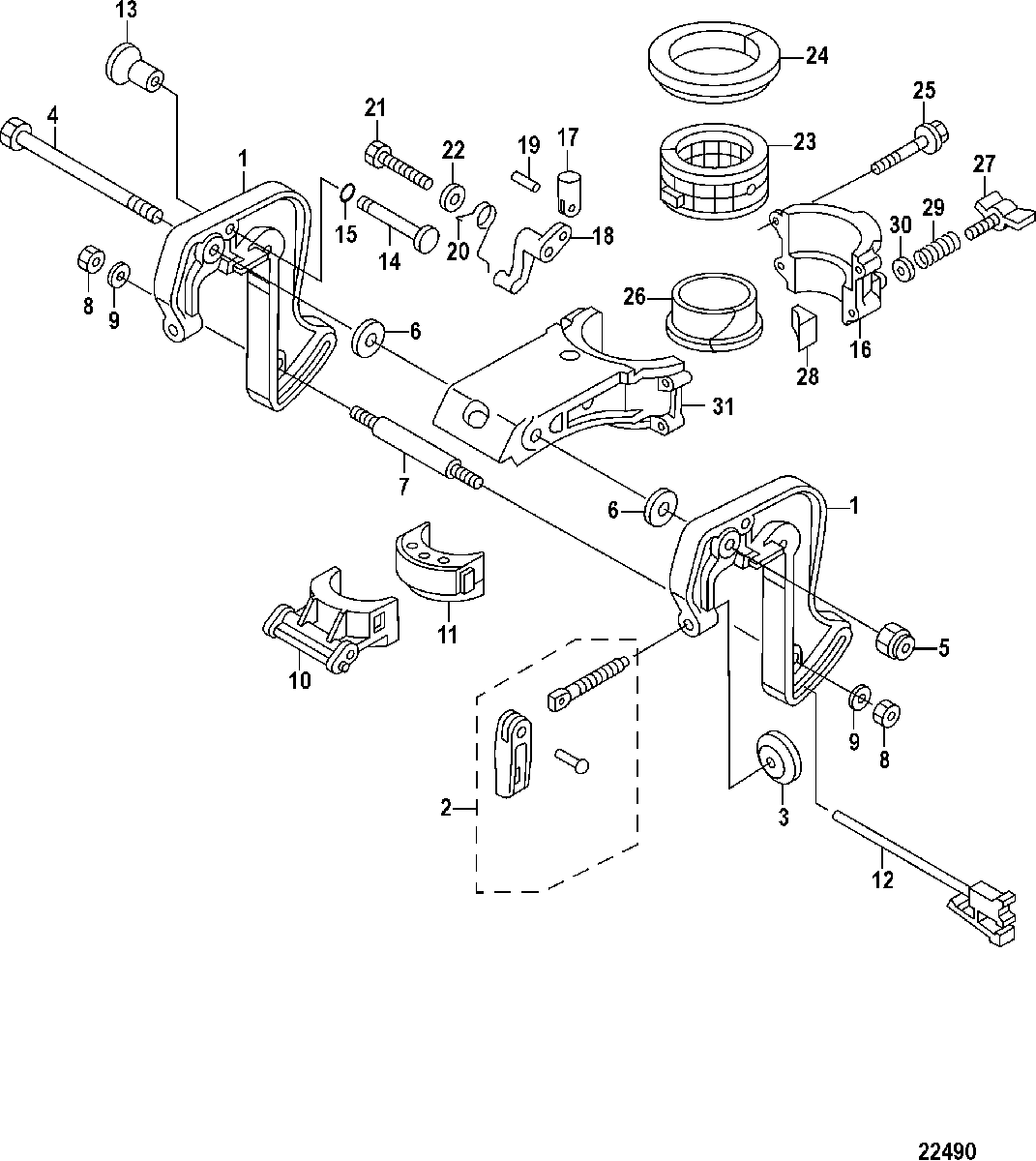

Clamp Bracket для Mercury - 3.5 (4-STROKE) Carb 0R131842 & Up
-
№АртикулНазвание
-
13406-889246A88 CLAMP BRACKET
SN# 0R190771 & BelowCLAMP BRACKET
SN# 0R190771 & Below -
13406-889246A88 CLAMP BRACKET
SN# 0R190772 & UpCLAMP BRACKET
SN# 0R190772 & Up -
210-8M0075060 CLAMP SCREW ASSEMBLYCLAMP SCREW ASSEMBLY
-
312-95379 PADPAD
-
410-898101337 SCREWSCREW
-
511-95374 NUT, NylonNUT, Nylon
-
612-95375 WASHERWASHER
-
78M0055576 DISTANCE RODDISTANCE ROD
-
811-853722022 NUTNUT
-
912-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
10898101341 THRUST SUPPORTERTHRUST SUPPORTER
-
11898101626 DAMPERDAMPER
-
128150921 THRUST RODTHRUST ROD
-
13815096 KNOBKNOB
-
143406-889246A88 STOPPER, Tilt
SN# 0R190771 & BelowSTOPPER, Tilt
SN# 0R190771 & Below -
148M0058363 TILT STOPPER
SN# 0R190772 & UpTILT STOPPER
SN# 0R190772 & Up -
1525-898101798 O-RING
SN# 0R190771 & BelowO-RING
SN# 0R190771 & Below -
1525-161781 O-RING
SN# 0R190772 & UpO-RING
SN# 0R190772 & Up -
163406-889246T63 CAP, Swivel BracketCAP, Swivel Bracket
-
17898101633 STOPPERSTOPPER
-
18898101342 PLATEPLATE
-
1917-17033 PINPIN
-
2024-898101347 SPRINGSPRING
-
2110-879194305 BOLT, Stainless SteelBOLT, Stainless Steel
-
2212-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2323-8M0057473 BUSHINGBUSHING
-
24803582 THRUST PLATETHRUST PLATE
-
2510-898103226 SCREWSCREW
-
2623-95381001 BUSHINGBUSHING
-
2710-162061 SCREW, AdjustingSCREW, Adjusting
-
28952791 FRICTION PADFRICTION PAD
-
2924-953838 SPRINGSPRING
-
3012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
313406-889246T62 SWIVEL BRACKETSWIVEL BRACKET
