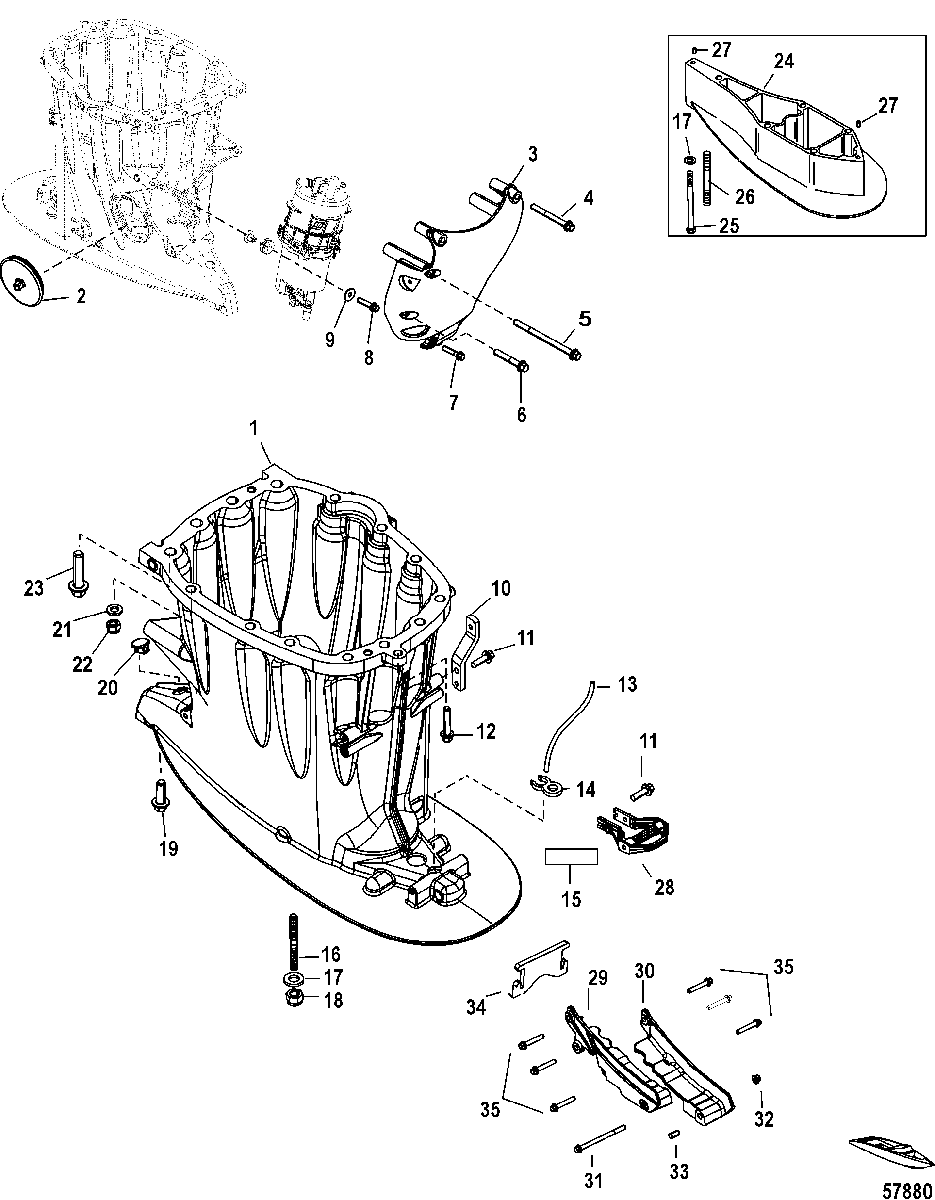

Driveshaft Housing для Mercury - 350 PRO VERADO (4-Stroke)(6 CYL.) 2B141124 & Up
-
№АртикулНазвание
-
11500-8M0113286 HOUSING, Driveshaft Long, BlackHOUSING, Driveshaft Long, Black
-
11500-8M0113287 HOUSING, Driveshaft X-Long, BlackHOUSING, Driveshaft X-Long, Black
-
225-889568001 GROMMETGROMMET
-
3889656T01 SHROUDSHROUD
-
410-8M0103818 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
510-8M0103812 SCREW, (M8 x 120)SCREW, (M8 x 120)
-
610-8M0103816 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
710-8M0103815 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
810-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
912-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
10897784A01 BRACKET KIT, Upper ChapBRACKET KIT, Upper Chap
-
1110-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
1210-8M0103813 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
1332-85944975 TUBING, (72.00 Inches Bulk), Cut to 44 Inches)TUBING, (72.00 Inches Bulk), Cut to 44 Inches)
-
14889831001 RETAINERRETAINER
-
15NSS NOT SOLD SEPARATE, Decal-Oil DrainNOT SOLD SEPARATE, Decal-Oil Drain
-
1616-8M0070951 STUD, (M12 x 1.75 x 52)
(Long/X-Long)STUD, (M12 x 1.75 x 52)
(Long/X-Long) -
1712-856982 WASHER, (.500 x .810 x .090) Stainless SteelWASHER, (.500 x .810 x .090) Stainless Steel
-
1811-896895 NUT, (M12)NUT, (M12)
-
1910-8M0102995 SCREW, (M12)
(Long/X-Long)SCREW, (M12)
(Long/X-Long) -
2019-824928001 PLUG, RubberPLUG, Rubber
-
2112-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
2211-884412 NUTNUT
-
2310-8M0103825 SCREW, (M12 x 45)SCREW, (M12 x 45)
-
248M0105088 SPACER, Driveshaft Housing X-Long, Black
(XX-Long)SPACER, Driveshaft Housing X-Long, Black
(XX-Long) -
248M0146468 SPACER, Driveshaft Housing X-Long, Silver
(XX-Long)SPACER, Driveshaft Housing X-Long, Silver
(XX-Long) -
2510-857137 SCREW, (M12 x 160)
(XX-Long)SCREW, (M12 x 160)
(XX-Long) -
2616-8M0008047 STUD, (M12 x 179)
(XX-Long)STUD, (M12 x 179)
(XX-Long) -
2717-43044 PIN, Dowel - Without Hole (.375 x .625)
(XX-Long)PIN, Dowel - Without Hole (.375 x .625)
(XX-Long) -
28891966006 BRACKET, Cowl
(X-Long/XX-Long)BRACKET, Cowl
(X-Long/XX-Long) -
298M0103332 PLATES ASSEMBLY, Thrust, LongPLATES ASSEMBLY, Thrust, Long
-
298M0103333 PLATES ASSEMBLY, Thrust, X-LongPLATES ASSEMBLY, Thrust, X-Long
-
30NSS NOT SOLD SEPARATE, Thrust Plate- LongNOT SOLD SEPARATE, Thrust Plate- Long
-
30NSS NOT SOLD SEPARATE, Thrust Plate - X-LongNOT SOLD SEPARATE, Thrust Plate - X-Long
-
3110-8M0090182 SCREW, (M8 X 120)SCREW, (M8 X 120)
-
3211-8M0088686 NUT, (M8 X 1.25)NUT, (M8 X 1.25)
-
3317-8M0095755 PIN, DowelPIN, Dowel
-
348M0080471 BUMPER, TrimBUMPER, Trim
-
3510-8M0103816 SCREW, (M8 x 50)SCREW, (M8 x 50)
