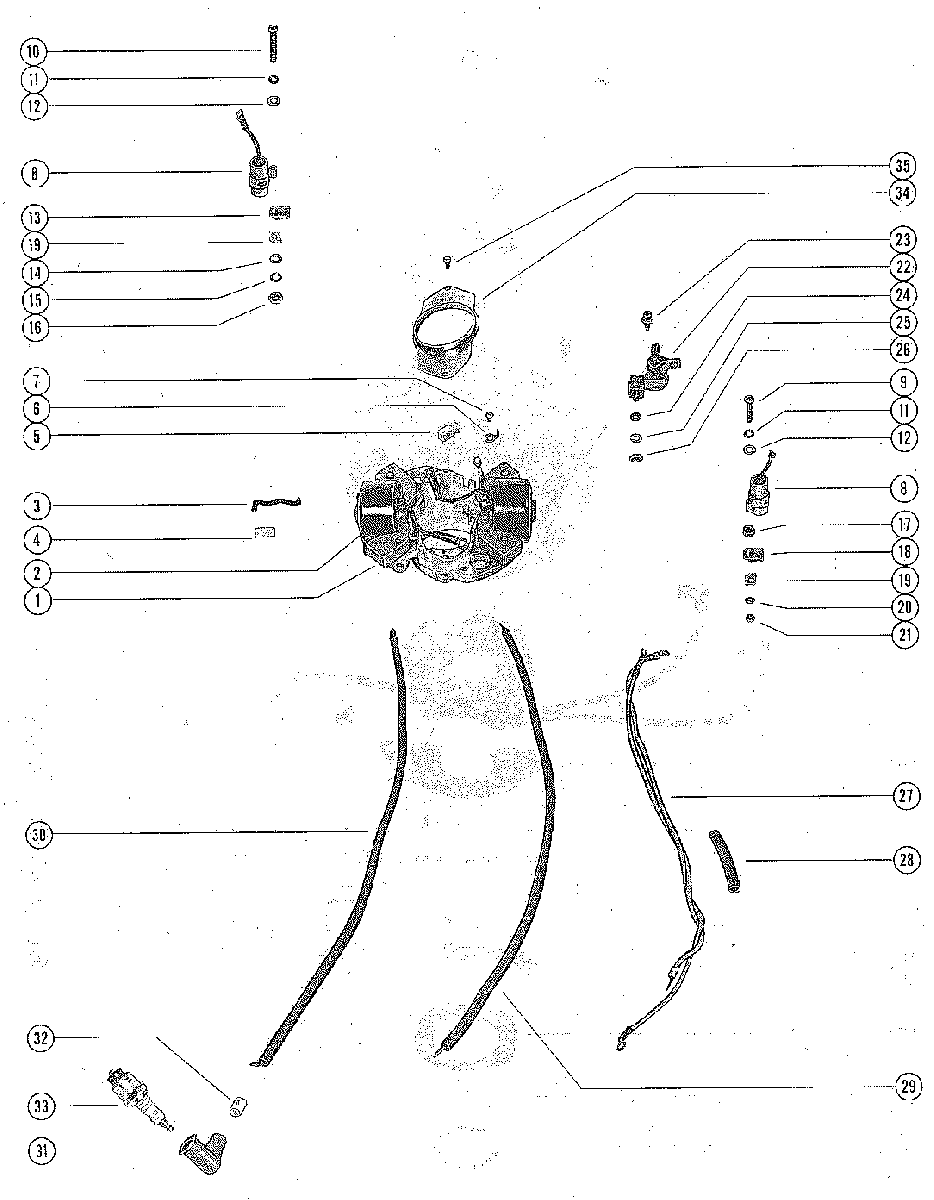

STATOR PLATE ASSEMBLY для Mercury - 350 1960827 THRU 2874703
-
№АртикулНазвание
-
-398-2574A3 STATOR PLATE ASSEMBLY, COMP. (SEE NOTE BELOW)STATOR PLATE ASSEMBLY, COMP. (SEE NOTE BELOW)
-
1398-2221 STATOR PLATE AND CORESTATOR PLATE AND CORE
-
2398-2568T1 COIL ASSEMBLYCOIL ASSEMBLY
-
3398-2321 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
4398-2413 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
5398-2207 FELT, CAM-BREAKERFELT, CAM-BREAKER
-
6398-732 CLIP, GROUND WIRE LEADCLIP, GROUND WIRE LEAD
-
710-21130 SCREW, GROUND TERMINALSCREW, GROUND TERMINAL
-
8398-2203 CONDENSER ASSEMBLYCONDENSER ASSEMBLY
-
910-38395 SCREW, CONDENSER FASTENING (1 1/4")SCREW, CONDENSER FASTENING (1 1/4")
-
1010-38395 SCREW, CONDENSER FASTENING (1 1/4")SCREW, CONDENSER FASTENING (1 1/4")
-
1113-21134 LOCKWASHER, CONDENSER FASTENING SCREWLOCKWASHER, CONDENSER FASTENING SCREW
-
1212-21135 WASHER, CONDENSER FASTENING SCREWWASHER, CONDENSER FASTENING SCREW
-
1354-45806 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
1412-21135 WASHER, LEAD WIRE CLAMP SCREWWASHER, LEAD WIRE CLAMP SCREW
-
1513-21134 LOCKWASHER, LEAD WIRE CLAMP SCREWLOCKWASHER, LEAD WIRE CLAMP SCREW
-
1611-21923T NUT, LEAD WIRE CLAMP SCREWNUT, LEAD WIRE CLAMP SCREW
-
1711-21825 NUT, COIL LEAD WIRE CLIP SCREW (SPACER)NUT, COIL LEAD WIRE CLIP SCREW (SPACER)
-
1854-24836 CLIP, NYLON-COIL LEAD WIRECLIP, NYLON-COIL LEAD WIRE
-
198M0084613 "D" WASHER, COIL LEAD WIRE CLIP"D" WASHER, COIL LEAD WIRE CLIP
-
2013-26995 LOCKWASHER, COIL LEAD WIRE CLIP SCREWLOCKWASHER, COIL LEAD WIRE CLIP SCREW
-
2111-26419 NUT, COIL LEAD WIRE CLIP SCREWNUT, COIL LEAD WIRE CLIP SCREW
-
22398-2202 BREAKER ASSEMBLYBREAKER ASSEMBLY
-
2310-33988 SCREW/LOCKWASHER, BREAKER FASTENINGSCREW/LOCKWASHER, BREAKER FASTENING
-
2412-21135 WASHER, TERMINAL SCREWWASHER, TERMINAL SCREW
-
2513-21134 LOCKWAHSER, TERMINAL SCREWLOCKWAHSER, TERMINAL SCREW
-
2611-21923T NUT, TERMINAL SCREWNUT, TERMINAL SCREW
-
27398-2206 GROUND LEAD, STATOR TO TERMINAL BLOCKGROUND LEAD, STATOR TO TERMINAL BLOCK
-
2823-30419 SLEEVE, INSULATION-GROUND LEADSLEEVE, INSULATION-GROUND LEAD
-
2984-821945A46 LEAD WIRELEAD WIRE
-
3084-821945A46 LEAD WIRE-TOPLEAD WIRE-TOP
-
3185-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
3220117 MARKER, "TOP"-LEAD WIREMARKER, "TOP"-LEAD WIRE
-
3333-813413 SPARK PLUG, (CHAMPION J4J)SPARK PLUG, (CHAMPION J4J)
-
3333-8M0114739 SPARK PLUG, (CHAMPION L4J)SPARK PLUG, (CHAMPION L4J)
-
34398-2208 COVER, DUST-STATOR PLATECOVER, DUST-STATOR PLATE
-
3510-36455 SCREW, DUST COVER TO STATOR PLATESCREW, DUST COVER TO STATOR PLATE
