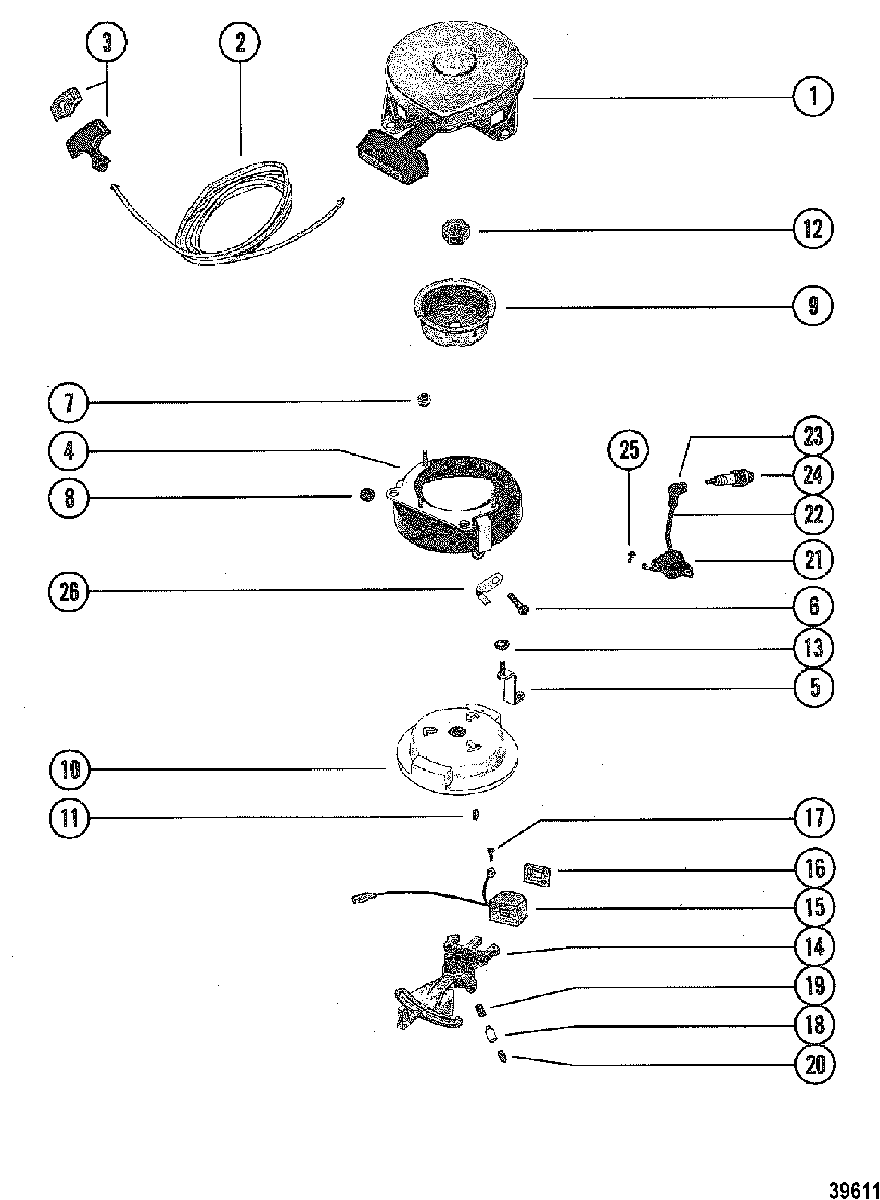

RECOIL STARTER AND FLYWHEEL для Mercury - 3.6 5404657 & Up
-
№АртикулНазвание
-
150-97175T STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
250-12066Q10 ROPE, STARTERROPE, STARTER
-
379470A1 RETAINER KIT, RopeRETAINER KIT, Rope
-
493498A2 BRACKET ASSEMBLY, FLYWHEEL GUARDBRACKET ASSEMBLY, FLYWHEEL GUARD
-
587934 LEG, BRACKETLEG, BRACKET
-
610-54615 SCREW, (.250-20 x .625), BRACKET AND LEG ATTACHINGSCREW, (.250-20 x .625), BRACKET AND LEG ATTACHING
-
711-8267139 NUT, RECOIL STARTER ATTACHINGNUT, RECOIL STARTER ATTACHING
-
825-90329 GROMMET, BRACKETGROMMET, BRACKET
-
987886 CUP, STARTERCUP, STARTER
-
10256-7530 FLYWHEELFLYWHEEL
-
1128-20094 KEY, Woodruff, FLYWHEEL DRIVEKEY, Woodruff, FLYWHEEL DRIVE
-
1211-20696 NUT, FLYWHEEL TO CRANKSHAFTNUT, FLYWHEEL TO CRANKSHAFT
-
1312-69057 WASHER, RECOIL STARTER STUDWASHER, RECOIL STARTER STUD
-
1488305 HOUSING, IGNITION MODULEHOUSING, IGNITION MODULE
-
1588182 IGNITION MODULEIGNITION MODULE
-
1688306 RETAINER, IGNITION MODULERETAINER, IGNITION MODULE
-
1710-88307 SCREW, WIRE TO HOUSING (5/16")SCREW, WIRE TO HOUSING (5/16")
-
1888188 BUTTON, FRICITON-HOUSINGBUTTON, FRICITON-HOUSING
-
1924-90304 SPRING, COMPRESSION-FRICTION BUTTONSPRING, COMPRESSION-FRICTION BUTTON
-
2010-88186 SCREW, (.312-24 x .500), SET-FRICTION BUTTONSCREW, (.312-24 x .500), SET-FRICTION BUTTON
-
2187885 COIL, IgnitionCOIL, Ignition
-
2284-813715A1 LEAD ASSEMBLYLEAD ASSEMBLY
-
2385-63709A1 BOOT/TERMINAL KIT, SPARK PLUGBOOT/TERMINAL KIT, SPARK PLUG
-
2433-8M0114744 SPARK PLUG (CHAMPION #L81Y)SPARK PLUG (CHAMPION #L81Y)
-
2433-88090 SPARK PLUG (CHAMPION #QL81Y)
CANADA AND BELGIUMSPARK PLUG (CHAMPION #QL81Y)
CANADA AND BELGIUM -
2510-60605 SCREW, (#10-16 x .750), IGNITION COILSCREW, (#10-16 x .750), IGNITION COIL
-
2688221 TAB, IDLE STOPTAB, IDLE STOP
