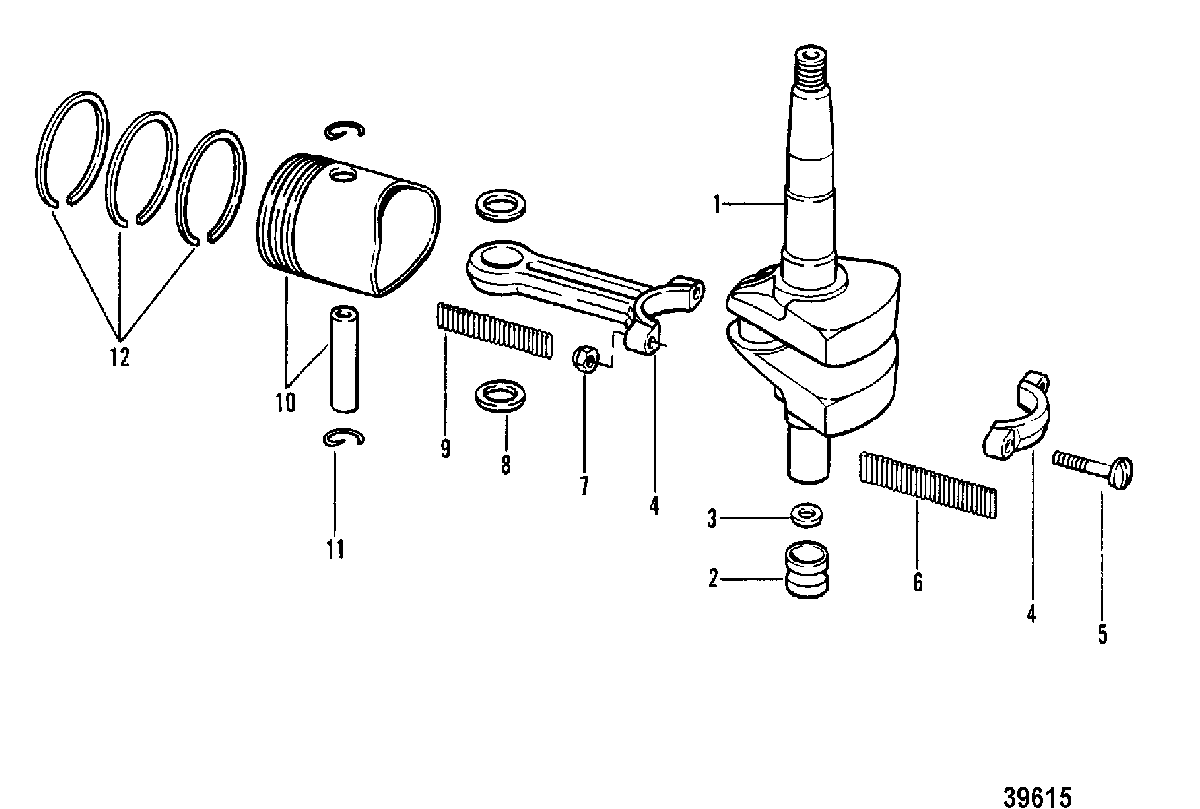

CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY для Mercury - 3.6 9252831 & Up
-
№АртикулНазвание
-
1427-7334A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
279952A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
312-79960 WASHER, CARRIERWASHER, CARRIER
-
4608-7395A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
510-87374 SCREW, (.250-28 x 1.030), CONNECTING RODSCREW, (.250-28 x 1.030), CONNECTING ROD
-
631-8M0045032 BEARING, Needle, CRANKPINBEARING, Needle, CRANKPIN
-
711-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
812-65967 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
929-31505 BEARING, Needle, PISTON PINBEARING, Needle, PISTON PIN
-
10719-7391T3 PISTON ASSEMBLYPISTON ASSEMBLY
-
1140-21666 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
1239-21665A12 RING SET, PistonRING SET, Piston
-
-27-98540A83 GASKET SETGASKET SET
