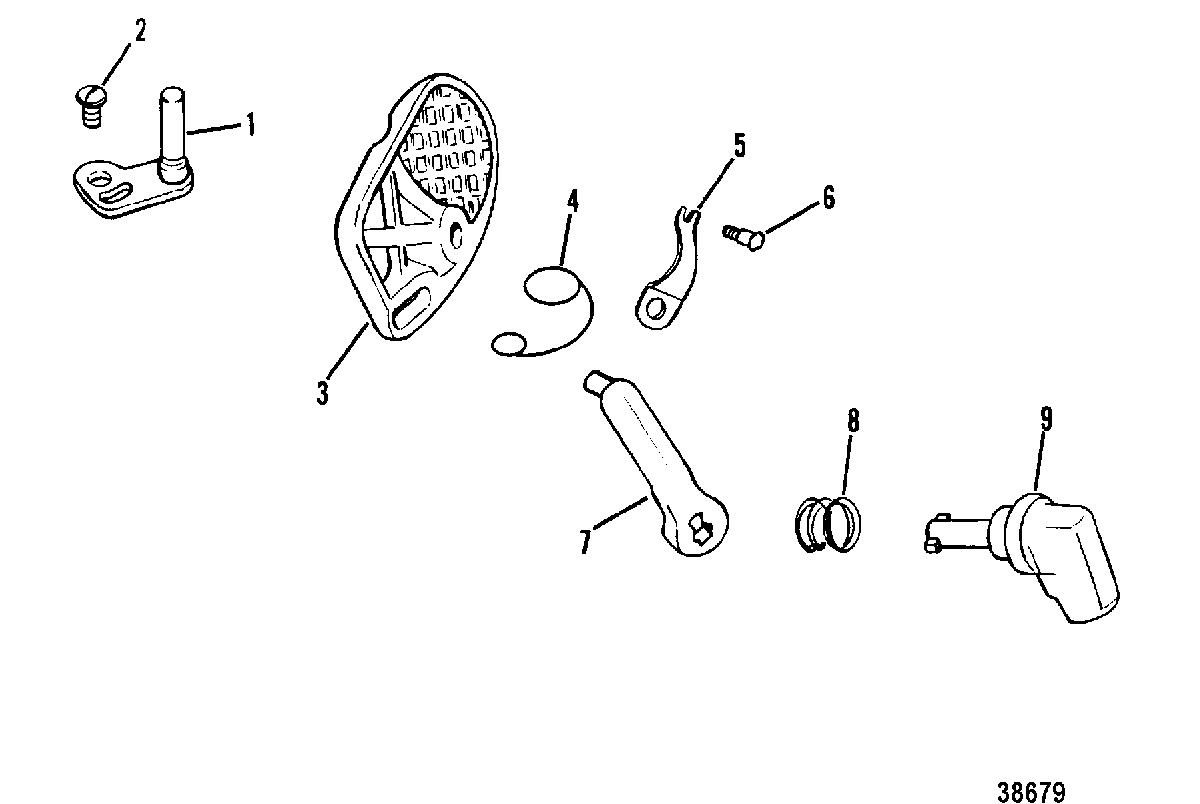

CARBURETOR CHOKE LINKAGE для Mercury - 4 (1 CYL. PRODUCT OF USA) 7143688 & Up
-
№АртикулНазвание
-
159000 LEVER, ThrottleLEVER, Throttle
-
210-20597 SCREW, (#8-32 x .380)SCREW, (#8-32 x .380)
-
379092 SHUTTER AND SCREEN, CHOKE - CARBURETORSHUTTER AND SCREEN, CHOKE - CARBURETOR
-
424-53193 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
524-55299A1 SPRING ASSEMBLY, CARBURETORSPRING ASSEMBLY, CARBURETOR
-
610-55298 SCREW, (#10-32 x .580), SPRING TO CARBURETORSCREW, (#10-32 x .580), SPRING TO CARBURETOR
-
753187 LEVERLEVER
-
824-53190 SPRING, TENSION - CHOKE KNOBSPRING, TENSION - CHOKE KNOB
-
953189 KNOBKNOB
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY(TILLOTSON)
- CARBURETOR ASSEMBLY(WALBRO)
- • CARBURETOR CHOKE LINKAGE
- CLAMP BRACKET ASSEMBLY
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- FLYWHEEL AND IGNITION COMPONENTS
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- MISCELLANEOUS PARTS/ACCESSORIES
- SHIFT CONTROL LINKAGE
- STEERING HANDLE ASSEMBLY
- SWIVEL BRACKET ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
