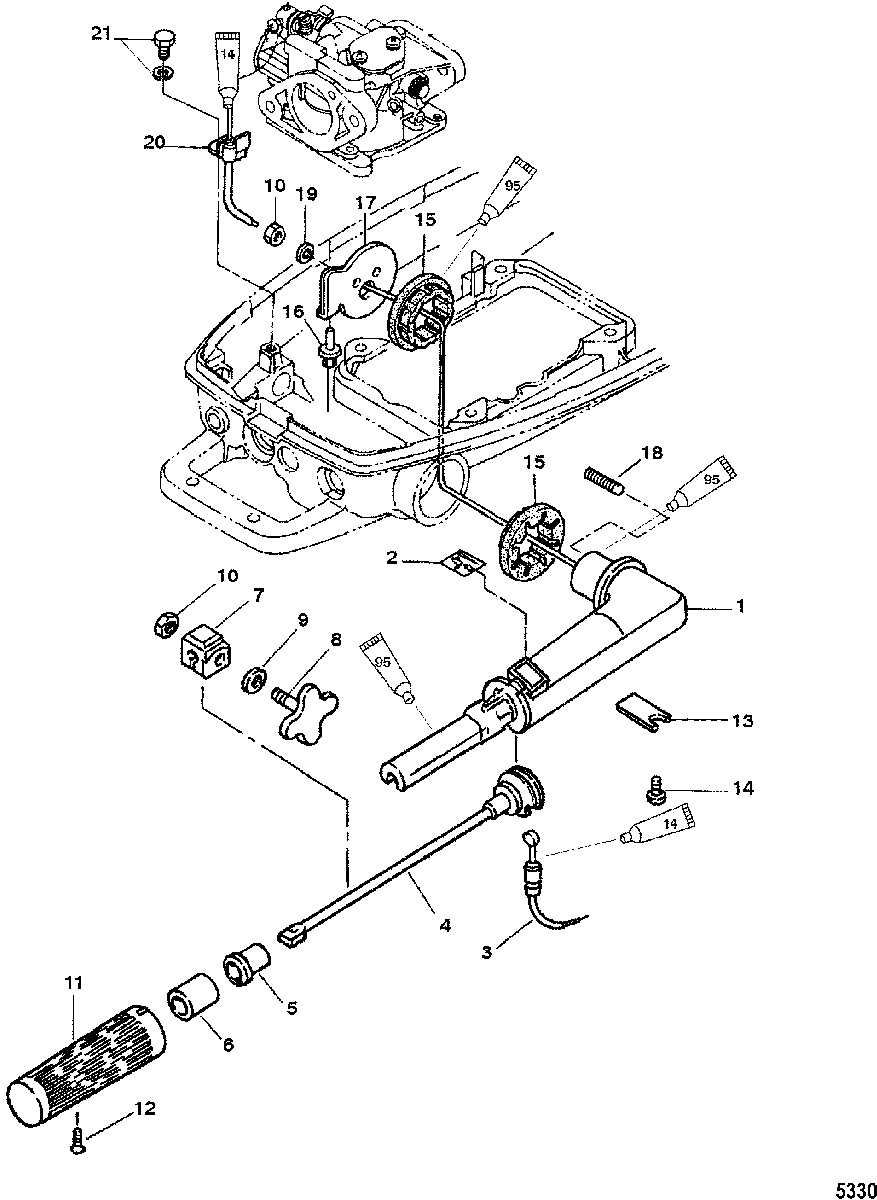

Throttle Components для Mercury - 4 (2-STROKE) 0T894439 & Up
-
№АртикулНазвание
-
116075T4 HANDLE, SteeringHANDLE, Steering
-
237-8M0097201 DECALDECAL
-
316088 WIRE, ThrottleWIRE, Throttle
-
416093 SHAFT, ThrottleSHAFT, Throttle
-
523-8M0130166 BUSHINGBUSHING
-
623-16191 SPACERSPACER
-
7813026 FRICTION PIECEFRICTION PIECE
-
810-16087 SCREW, AdjustingSCREW, Adjusting
-
912-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
1011-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1116086 GRIPGRIP
-
1210-16094 SCREWSCREW
-
1316338 BRACKETBRACKET
-
1410-16827 SCREWSCREW
-
1523-16083005 BUSHINGBUSHING
-
1617-16085 PINPIN
-
1716084 RETAINERRETAINER
-
1816-815028 STUD BOLTSTUD BOLT
-
1913-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
2016089 BRACKETBRACKET
-
2110-168281 SCREW AND LOCKWASHERSCREW AND LOCKWASHER
