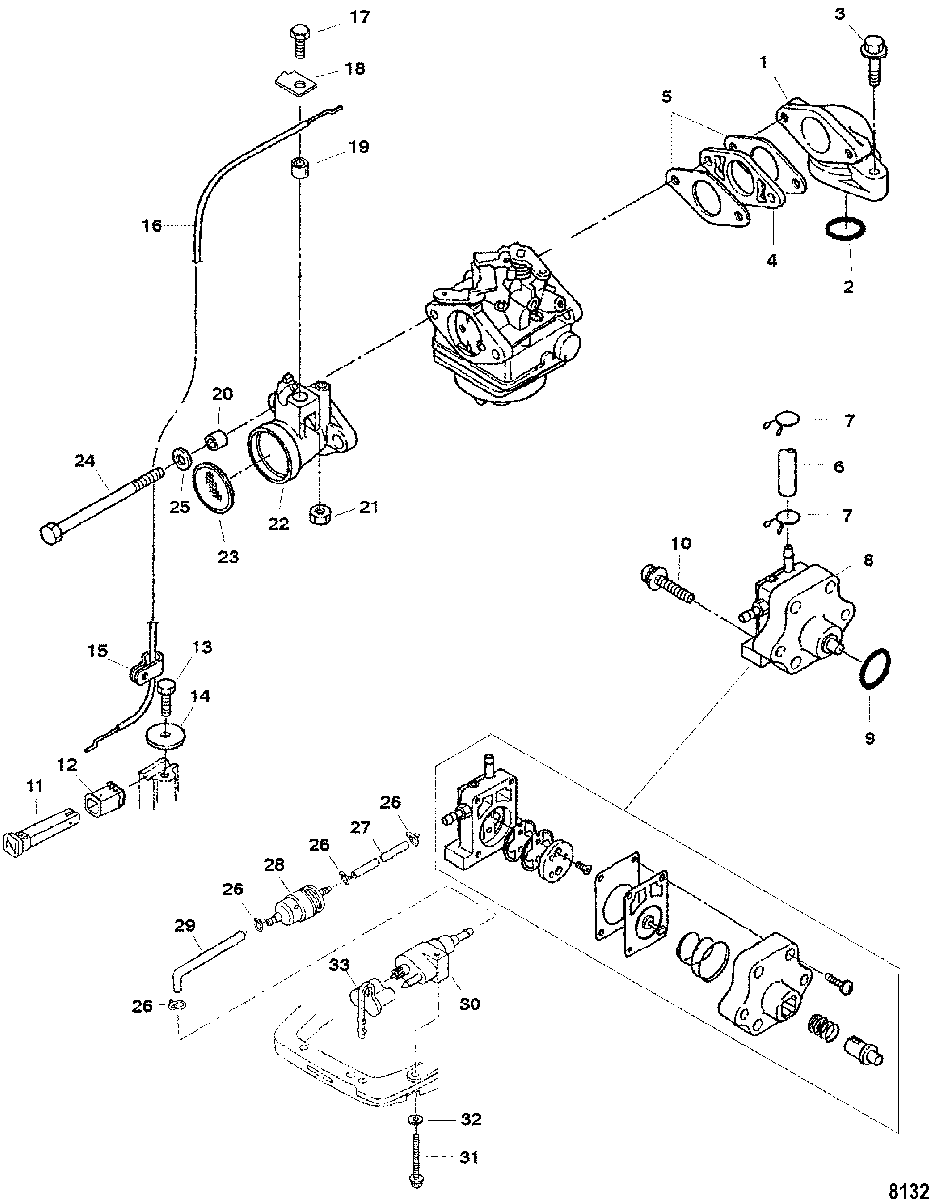

Fuel System для Mercury - 4 (4-STROKE) 0P073456 THRU 0P400999
-
№АртикулНазвание
-
1803530 MANIFOLD, InletMANIFOLD, Inlet
-
225-8035133 O-RINGO-RING
-
310-8150684 BOLT, (M6 x 25)BOLT, (M6 x 25)
-
427-80350810 GASKET, InsulatorGASKET, Insulator
-
527-803508013 GASKETGASKET
-
632-8M0057113 LINE, Fuel (1000 mm)
(To Carburetor)LINE, Fuel (1000 mm)
(To Carburetor) -
754-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
8803529T06 PUMP, Fuel
SN# 0R036271 & BelowPUMP, Fuel
SN# 0R036271 & Below -
8803529T06 PUMP, Fuel
SN# 0R036272 & UpPUMP, Fuel
SN# 0R036272 & Up -
925-803513 O-RINGO-RING
-
1010-8555448 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
11804646 ROD, ChokeROD, Choke
-
1223-8M0047187 BUSHINGBUSHING
-
1310-16223 BOLT, (M6 x 14)BOLT, (M6 x 14)
-
1412-161404 WASHERWASHER
-
1554-953951 CLAMPCLAMP
-
168276225 LINK WIRE, ChokeLINK WIRE, Choke
-
1710-16832 BOLT, (M6 x 16)BOLT, (M6 x 16)
-
18803528 BRACKETBRACKET
-
1923-804371 COLLARCOLLAR
-
2023-952868 COLLARCOLLAR
-
2111-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
228M0121984 SILENCER, AirSILENCER, Air
-
23803527 FLAME TRAPFLAME TRAP
-
2410-855809003 BOLT, (M6 x 85)BOLT, (M6 x 85)
-
2512-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2654-95395 CLIP, Stainless SteelCLIP, Stainless Steel
-
2732-8M0057113 TUBING, (170 mm)TUBING, (170 mm)
-
2835-16248 FILTER, FuelFILTER, Fuel
-
2932-878054 TUBINGTUBING
-
3022-15781A5 CONNECTOR, Fuel - BrassCONNECTOR, Fuel - Brass
-
3110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3212-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
33878311 CAPCAP
-
-27-8M0114820 GASKET SET, Powerhead
SN# 0R057258 & BelowGASKET SET, Powerhead
SN# 0R057258 & Below -
-27-803508A05 GASKET SET, Powerhead
SN# 0R057259 & UpGASKET SET, Powerhead
SN# 0R057259 & Up
