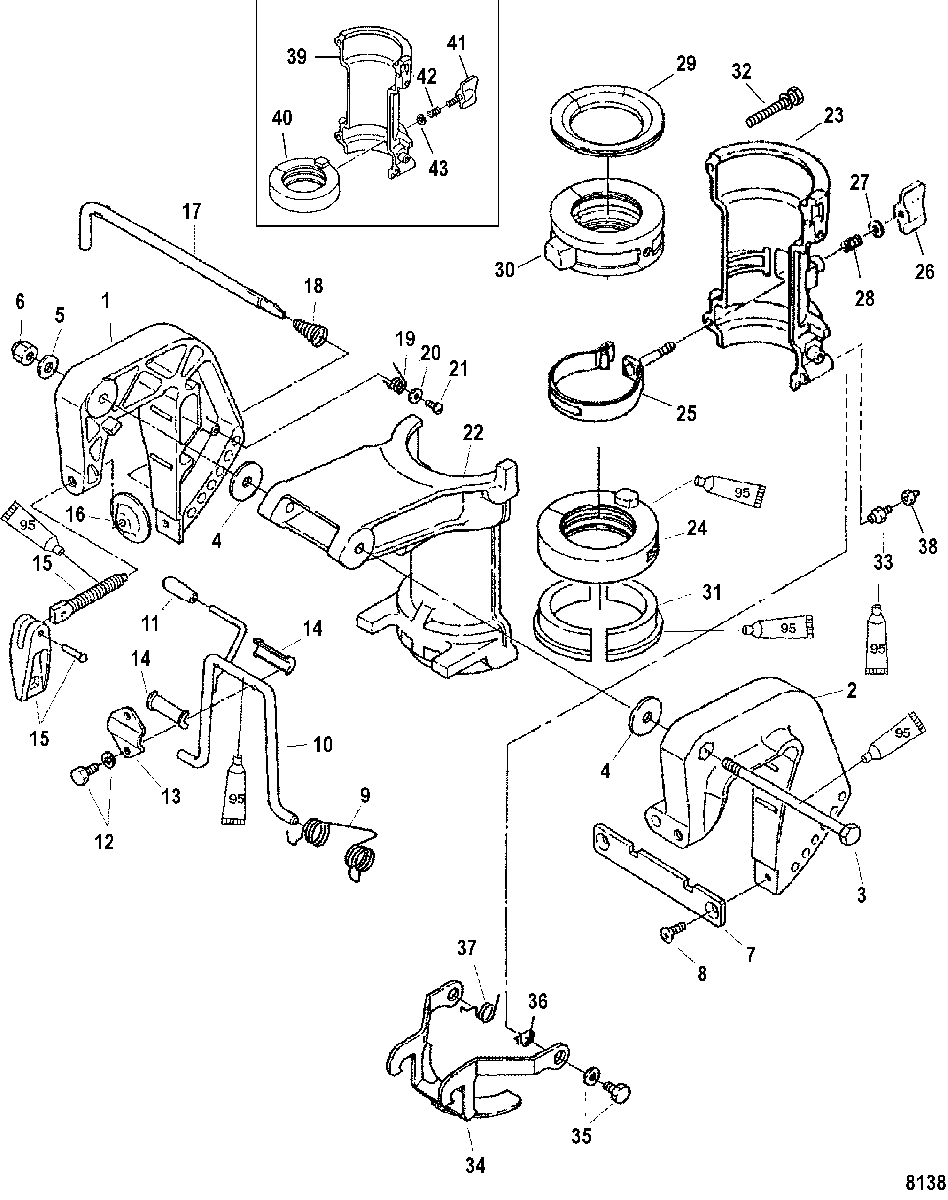

Clamp Brackets для Mercury - 4 (4-STROKE) 0R000001 THRU 0R067089
-
№АртикулНазвание
-
13406-9622T6 CLAMP BRACKET, StarboardCLAMP BRACKET, Starboard
-
23406-96231 CLAMP BRACKET, PortCLAMP BRACKET, Port
-
310-898101337 BOLTBOLT
-
412-95375 WASHERWASHER
-
512-16192 WASHERWASHER
-
611-815088 NUT, (M8)NUT, (M8)
-
7161931 DISTANCE PLATEDISTANCE PLATE
-
810-16194 SCREWSCREW
-
924-16212 SPRINGSPRING
-
108M0045584 STOPPER ASSEMBLY, TiltSTOPPER ASSEMBLY, Tilt
-
118M0090337 GRIPGRIP
-
1210-162111 BOLTBOLT
-
1316210002 SET PLATESET PLATE
-
14825113 BUSHINGBUSHING
-
1510-8M0075060 CLAMP SCREW ASSEMBLYCLAMP SCREW ASSEMBLY
-
1612-95379 PADPAD
-
1716198004 THRUST RODTHRUST ROD
-
1824-815093003 SPRINGSPRING
-
1924-161951 SPRINGSPRING
-
2012-16197 WASHERWASHER
-
2110-16196 SCREWSCREW
-
223407-813029T9 SWIVEL BRACKETSWIVEL BRACKET
-
233407-883300T SWIVEL BRACKET
SN# 0R023867 & UpSWIVEL BRACKET
SN# 0R023867 & Up -
2423-8035674 BUSHING, Lower
SN# 0R023867 & UpBUSHING, Lower
SN# 0R023867 & Up -
258M0124744 FRICTION BAND
SN# 0R023867 & UpFRICTION BAND
SN# 0R023867 & Up -
2611-883302 WING NUT
SN# 0R023867 & UpWING NUT
SN# 0R023867 & Up -
2712-953921 WASHER, Stainless Steel
SN# 0R023867 & UpWASHER, Stainless Steel
SN# 0R023867 & Up -
2824-953839 SPRING
SN# 0R023867 & UpSPRING
SN# 0R023867 & Up -
29803582 THRUST PLATETHRUST PLATE
-
3023-8035672 BUSHING, UpperBUSHING, Upper
-
318035821 THRUST PLATETHRUST PLATE
-
3210-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
3322-824969 FITTING, GreaseFITTING, Grease
-
34162133 ARM, Reverse LockARM, Reverse Lock
-
3510-82304223 BOLTBOLT
-
3624-16216 SPRINGSPRING
-
3724-16215 SPRINGSPRING
-
38808599 CAP
(Use where Applicable)CAP
(Use where Applicable) -
393407-813029T10 SWIVEL BRACKET
SN# 0R023866 & BelowSWIVEL BRACKET
SN# 0R023866 & Below -
4023-8035673 BUSHING, Lower
SN# 0R023866 & BelowBUSHING, Lower
SN# 0R023866 & Below -
4110-162061 SCREW, Adjusting
SN# 0R023866 & BelowSCREW, Adjusting
SN# 0R023866 & Below -
4224-953838 SPRING
SN# 0R023866 & BelowSPRING
SN# 0R023866 & Below -
4312-16826 WASHER, Stainless Steel
SN# 0R023866 & BelowWASHER, Stainless Steel
SN# 0R023866 & Below
