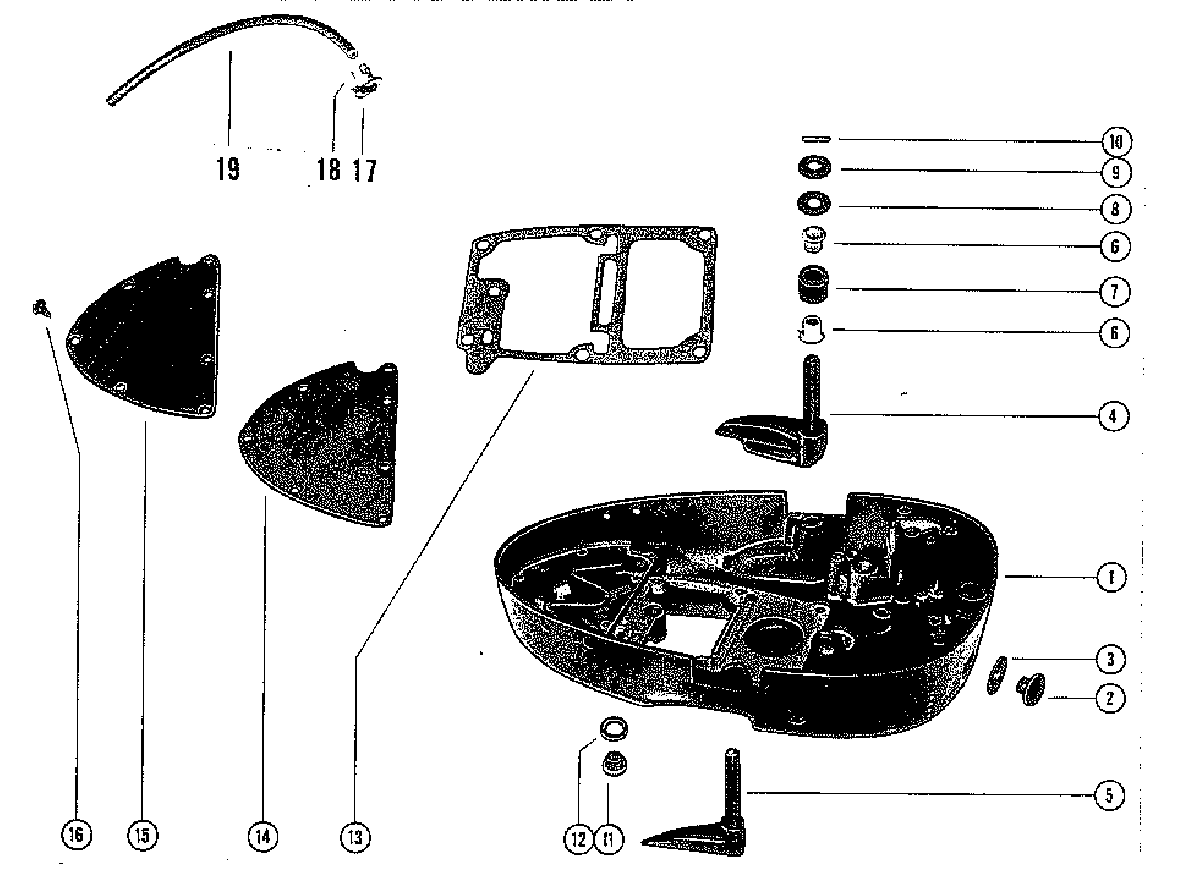

BOTTOM COWL ASSEMBLY для Mercury - 40 (1 CYL.) 2498136 THRU 3296136
-
№АртикулНазвание
-
1NLA BOTTOM COWLBOTTOM COWL
-
219-35827 PLUG 39PLUG 39
-
353-55891 FASTENER 39FASTENER 39
-
436187A1 LEVER (PORT)LEVER (PORT)
-
536188A1 LEVER (STARBOARD)LEVER (STARBOARD)
-
623-26819 BUSHING (NYLON)BUSHING (NYLON)
-
723-31293 BUSHING (RUBBER)BUSHING (RUBBER)
-
8NLA WASHER (39)
SERIAL 01738941-01865632WASHER (39)
SERIAL 01738941-01865632 -
953-55891 FASTENERFASTENER
-
1017-29077 ROLL PIN (39)(40)
SERIAL 00000000-03028360ROLL PIN (39)(40)
SERIAL 00000000-03028360 -
1017-58997 ROLL PIN (40)
SERIAL 03028361-09999999ROLL PIN (40)
SERIAL 03028361-09999999 -
1110-79953Q04 SCREWSCREW
-
1212-191833 WASHERWASHER
-
1327-89937 GASKET (39)
SERIAL 00000000-02098036GASKET (39)
SERIAL 00000000-02098036 -
1327-89937 GASKET (39)(40)
SERIAL 02098037-09999999GASKET (39)(40)
SERIAL 02098037-09999999 -
1427-30801 GASKET (39)(40)
SERIAL 00000000-03028360GASKET (39)(40)
SERIAL 00000000-03028360 -
1427-55847 GASKET (40)
SERIAL 03028361-09999999GASKET (40)
SERIAL 03028361-09999999 -
1555936 COVERCOVER
-
1610-69079 SCREWSCREW
-
1756712 TELL TALE NOZZLE 40
SERIAL 03028361-09999999TELL TALE NOZZLE 40
SERIAL 03028361-09999999 -
1810-35519 SCREW
SERIAL 03028361-09999999SCREW
SERIAL 03028361-09999999 -
1932-8M0108355 HOSE
SERIAL 03028361-09999999HOSE
SERIAL 03028361-09999999
