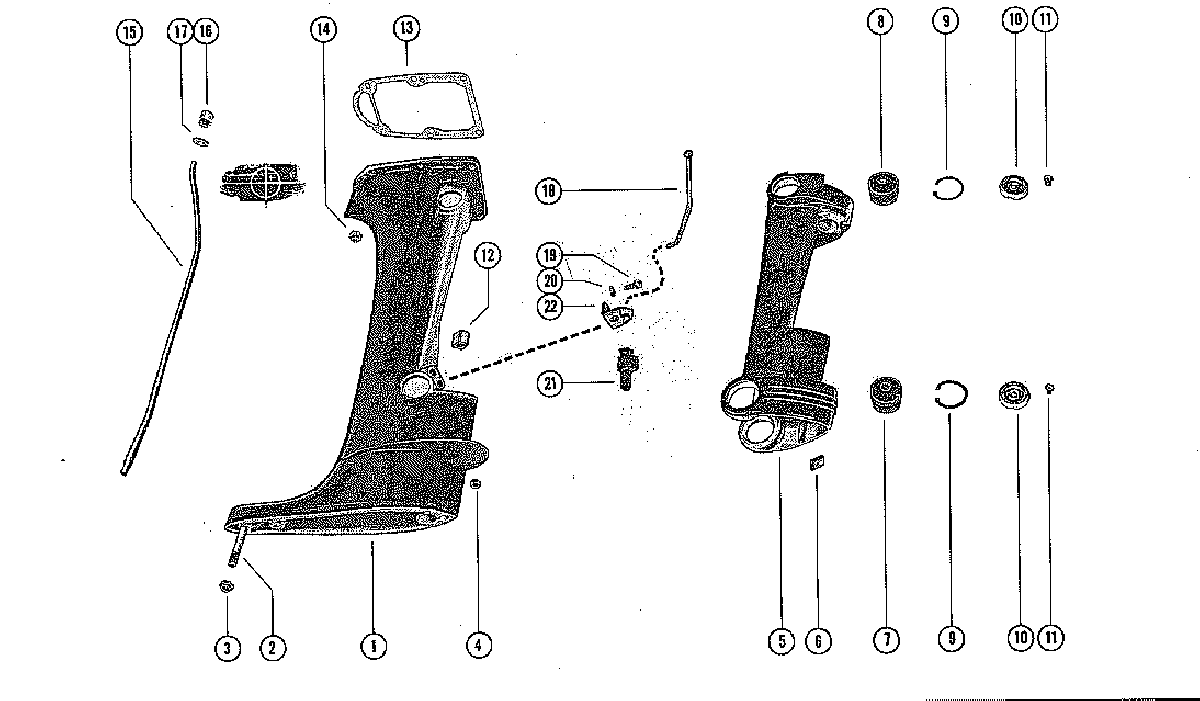

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 40 (1 CYL.) 3306257 THRU 8026539
-
№АртикулНазвание
-
11538-3889A2 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
11542-3888A2 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
11538-8456A1 DRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY(SHORT SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
11542-8452A1 DRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWDRIVE SHAFT HOUSING ASSEMBLY(LONG SHAFT)
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
216-66373 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSINGSTUD, DRIVE SHAFT HOUSING TO GEAR HOUSING
-
311-82670911 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDNUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
-
411-8M0042636 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
-
51539-8450A1 SADDLE
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSADDLE
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
51539-8450A1 SADDLE
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSADDLE
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
664076 BUMPER, THRUST - SADDLE
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWBUMPER, THRUST - SADDLE
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
779896A1 MOUNT ASSEMBLY, LOWERMOUNT ASSEMBLY, LOWER
-
879985A1 MOUNT ASSEMBLY, UPPER(SEE NOTE BELOW)MOUNT ASSEMBLY, UPPER(SEE NOTE BELOW)
-
953-26406 RING, RETAINING - UPPER AND LOWER MOUNTRING, RETAINING - UPPER AND LOWER MOUNT
-
1071490 COVER, UPPER AND LOWER MOUNTCOVER, UPPER AND LOWER MOUNT
-
1110-45817 SCREW, UPPER AND LOWER MOUNT COVER RETAINING (7/16")SCREW, UPPER AND LOWER MOUNT COVER RETAINING (7/16")
-
1255435 BLOCK, BEARING - DRIVE SHAFTBLOCK, BEARING - DRIVE SHAFT
-
1327-59079 GASKET, BOTTOM COWL TO DRIVE SHAFT HOUSINGGASKET, BOTTOM COWL TO DRIVE SHAFT HOUSING
-
1411-20184 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1411-24652 NUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDSNUT, DRIVE SHAFT HOUSING TO POWERHEAD STUDS
-
1532-31940 TUBE, WATER OUTLET(SHORT SHAFT)TUBE, WATER OUTLET(SHORT SHAFT)
-
1532-32077 TUBE, WATER OUTLET(LONG SHAFT)TUBE, WATER OUTLET(LONG SHAFT)
-
1626-36556 SEAL, RUBBER - WATER OUTLET TUBESEAL, RUBBER - WATER OUTLET TUBE
-
1723-13127 WASHER, NYLON - OUTLET TUBE SEALWASHER, NYLON - OUTLET TUBE SEAL
-
1871057 LINK ROD, REVERSE LOCK
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWLINK ROD, REVERSE LOCK
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
1910-65414 SCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWSCREW, CAM RETAINER TO DRIVE SHAFT HOUSING (3/4")
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
2013-26992 LOCKWASHER, CAM RETAINER SCREW
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWLOCKWASHER, CAM RETAINER SCREW
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
2165216 CAM, REVERSE LOCK
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWCAM, REVERSE LOCK
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW -
2272007 RETAINER, REVERSE LOCK CAM
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOWRETAINER, REVERSE LOCK CAM
UNITED STATES 3529445 AND BELOW
AUSTRALIA 8005739 AND BELOW
BELGIUM 9012108 AND BELOW
CANADA 7011057 AND BELOW
