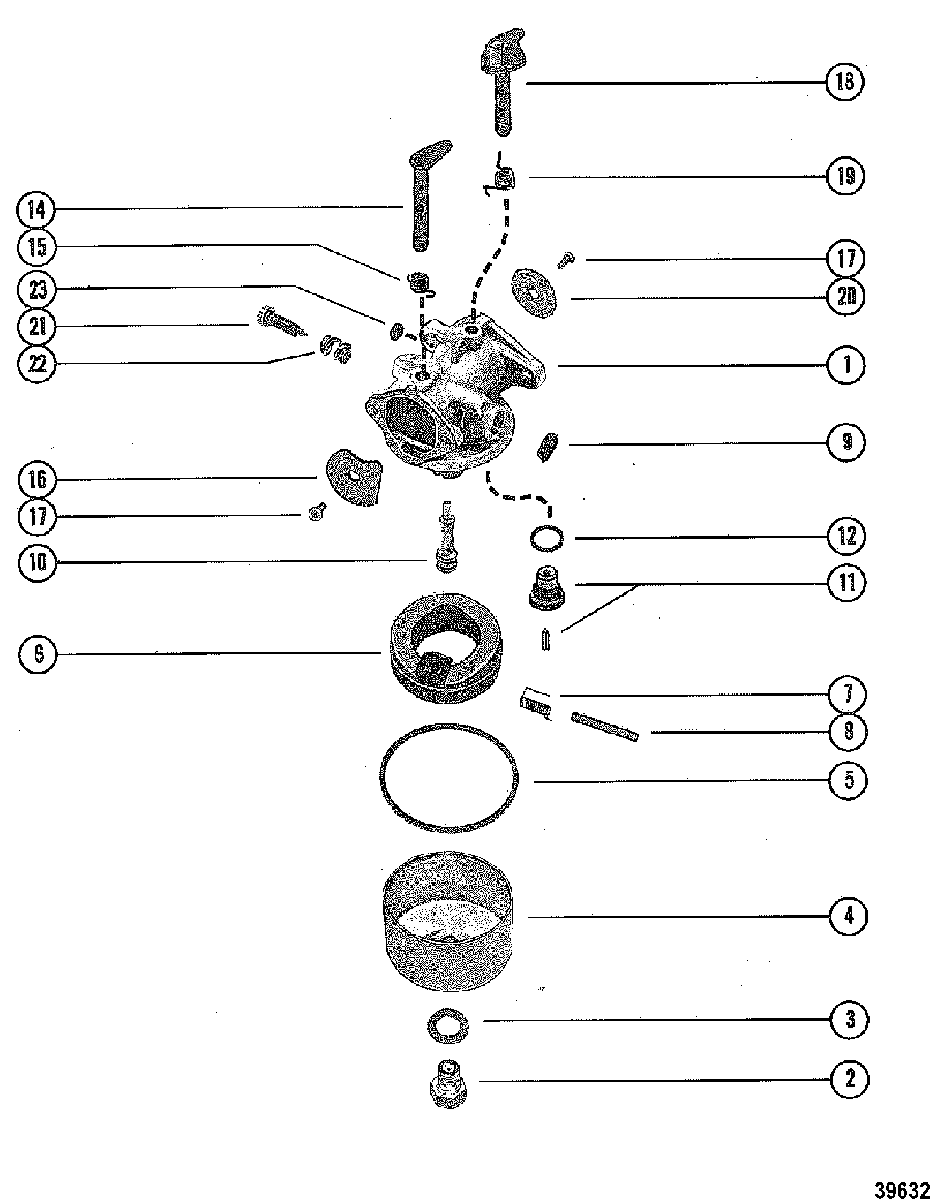

CARBURETOR ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 7146488 THRU 7147237
-
№АртикулНазвание
-
189977A2 CARBURETOR
(LMO-3)CARBURETOR
(LMO-3) -
11377-8402 CARBURETOR
(LMO-4)CARBURETOR
(LMO-4) -
21395-6043 RETAINER, JET (.041)RETAINER, JET (.041)
-
3NSS NOT SOLD SEPARATE, GASKET, JET RETAINERNOT SOLD SEPARATE, GASKET, JET RETAINER
-
41395-8155 BOWL, FuelBOWL, Fuel
-
5NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
61395-5898 FLOATFLOAT
-
71395-5904 SPRING, FLOATSPRING, FLOAT
-
8NSS NOT SOLD SEPARATE, FLOAT PINNOT SOLD SEPARATE, FLOAT PIN
-
91395-4805 SCREEN, FILTERSCREEN, FILTER
-
101395-5900 NOZZLE
(LMO-3)NOZZLE
(LMO-3) -
101395-8671 NOZZLE
(LMO-4)NOZZLE
(LMO-4) -
11NSS NOT SOLD SEPARATE, INLET NEEDLE, SEAT AND GASKETNOT SOLD SEPARATE, INLET NEEDLE, SEAT AND GASKET
-
12NSS NOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEATNOT SOLD SEPARATE, GASKET, INLET NEEDLE AND SEAT
-
141395-5896 SHAFT, CHOKESHAFT, CHOKE
-
151395-5905 SPRING, CHOKE RETURNSPRING, CHOKE RETURN
-
161395-5897 VALVE, CHOKEVALVE, CHOKE
-
171395-5902 SCREW, (#6-32 x .187), VALVESCREW, (#6-32 x .187), VALVE
-
181395-5894 SHAFT, THROTTLESHAFT, THROTTLE
-
191395-5903 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
201395-8670 VALVE, THROTTLE
(LMO-3)VALVE, THROTTLE
(LMO-3) -
201395-8670 VALVE, THROTTLE
(LMO-4)VALVE, THROTTLE
(LMO-4) -
21NSS NOT SOLD SEPARATE, IDLE NNEDLENOT SOLD SEPARATE, IDLE NNEDLE
-
221395-6103 SPRING, IDLE NEEDLESPRING, IDLE NEEDLE
-
23NSS NOT SOLD SEPARATE, WLECH PLUG, CARBURETOR (5/16")NOT SOLD SEPARATE, WLECH PLUG, CARBURETOR (5/16")
-
--NSS NOT SOLD SEPARATE, CAP PLUG, CARBURETORNOT SOLD SEPARATE, CAP PLUG, CARBURETOR
-
-1395-7262 GASKET SET, Carburetor RepairGASKET SET, Carburetor Repair
-
-1395-7263 REPAIR PARTS KIT
(LMO-3)REPAIR PARTS KIT
(LMO-3) -
-1395-8672 REPAIR PARTS KIT
(LMO-4)REPAIR PARTS KIT
(LMO-4)
