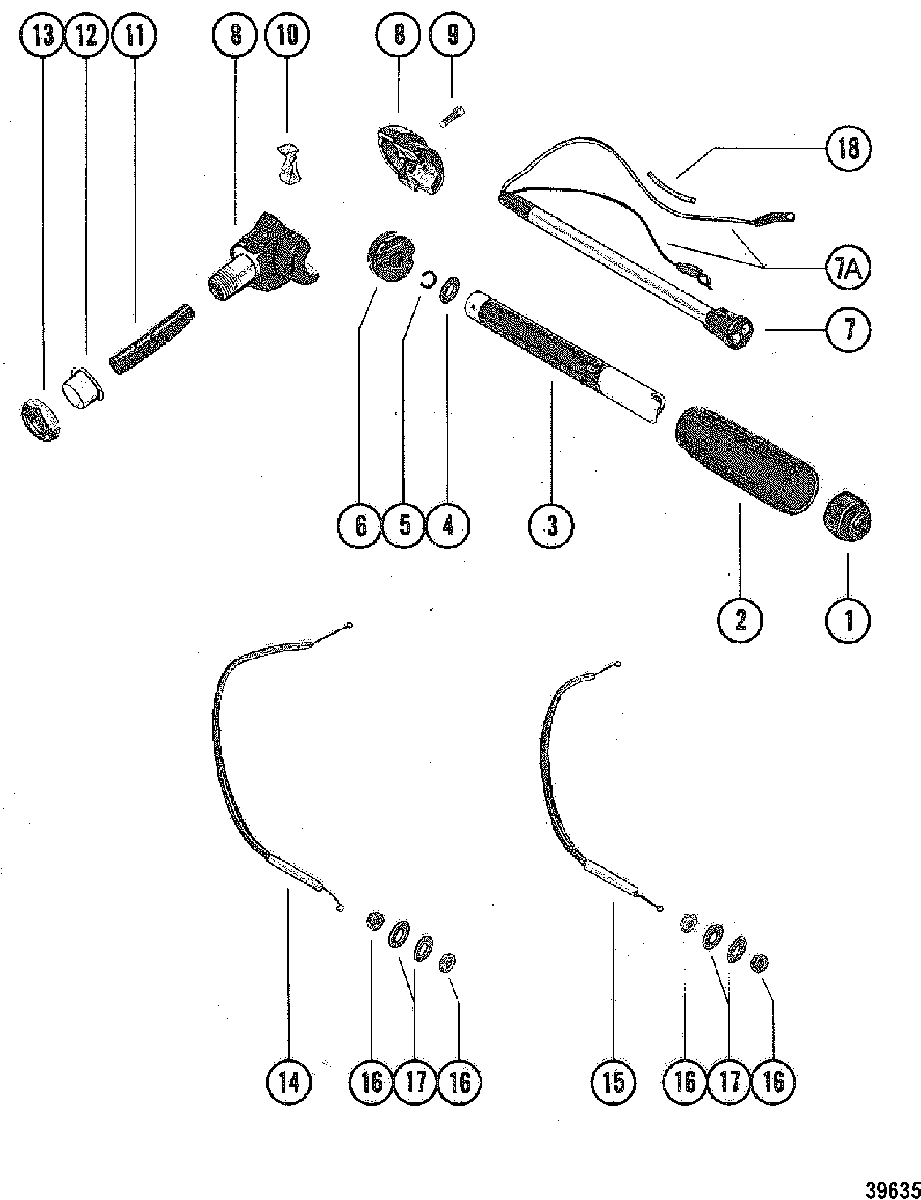

STEERING HANDLE ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 8065265 THRU 8068064
-
№АртикулНазвание
-
111099A1 BOOT ASSEMBLY, HANDLEBOOT ASSEMBLY, HANDLE
-
270382 GRIP, HANDLEGRIP, HANDLE
-
370383 ARM, HANDLEARM, HANDLE
-
412-31433 WASHER, HANDLEWASHER, HANDLE
-
553-70384 RING, Retaining, HANDLERING, Retaining, HANDLE
-
670386 PULLEY, STEERING HANDLEPULLEY, STEERING HANDLE
-
770385 SHAFT, HANDLESHAFT, HANDLE
-
7A84-70671A1 HARNESS ASSEMBLY, STOP SWITCHHARNESS ASSEMBLY, STOP SWITCH
-
870389A2 BRACKET ASSEMBLY, HANDLEBRACKET ASSEMBLY, HANDLE
-
910-37978 SCREW, (#10-32 x .750) Stainless Steel, HANDLE BRACKETSCREW, (#10-32 x .750) Stainless Steel, HANDLE BRACKET
-
1070390 RETAINER, CABLERETAINER, CABLE
-
1185-708571 INSULATOR, CABLEINSULATOR, CABLE
-
1223-70391 BUSHING, HANDLE BRACKETBUSHING, HANDLE BRACKET
-
1311-73784 NUT, HANDLE BRACKETNUT, HANDLE BRACKET
-
1492791 CABLE, THROTTLE ADVANCE
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowCABLE, THROTTLE ADVANCE
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
1592791 CABLE, THROTTLE RETARD
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowCABLE, THROTTLE RETARD
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
14&1592791 CABLE, THROTTLE ADVANCE/ RETARD
SN# US-5805431/Belgium-9294811/Canada-7166328 & UpCABLE, THROTTLE ADVANCE/ RETARD
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
1611-21825 NUT, (.250-28), THROTTLE CABLENUT, (.250-28), THROTTLE CABLE
-
1712-37998 WASHER, THROTTLE CABLEWASHER, THROTTLE CABLE
-
185790811 SLEEVE, STOP SWITCH HARNESSSLEEVE, STOP SWITCH HARNESS
