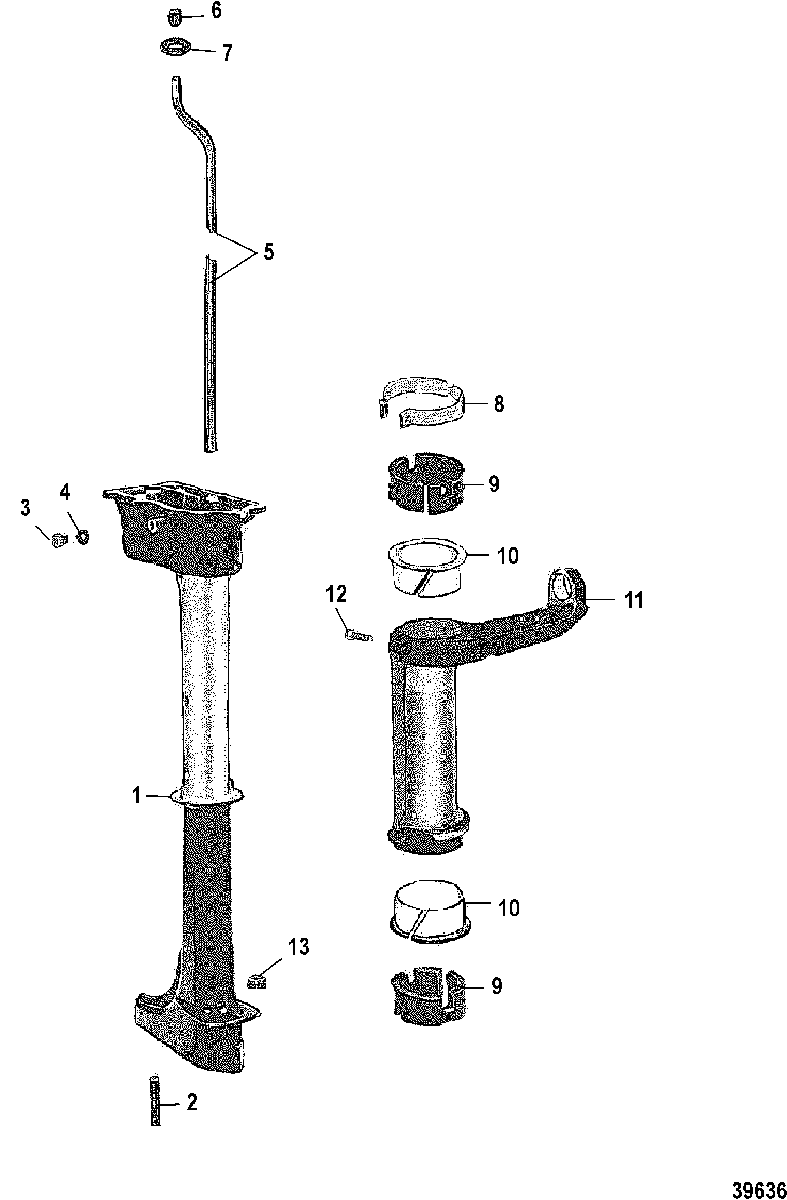

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 40 (2 CYL. PRODUCT OF USA) 9256981 THRU 9258280
-
№АртикулНазвание
-
11580-6673A2 HOUSING ASSEMBLY, DriveshaftHOUSING ASSEMBLY, Driveshaft
-
216-68927 STUD, DRIVESHAFAT HOUSING
(SHORT SHAFT)STUD, DRIVESHAFAT HOUSING
(SHORT SHAFT) -
216-75321 STUD, DRIVE SHAFT HOUSING
(LONG SHAFT)STUD, DRIVE SHAFT HOUSING
(LONG SHAFT) -
310-79953Q04 SCREW, (.375-16 x .250), GREASE FILTERSCREW, (.375-16 x .250), GREASE FILTER
-
412-191833 WASHER, GREAST FILLER SCREWWASHER, GREAST FILLER SCREW
-
532-68979 TUBE, Water
(SHORT SHAFT)TUBE, Water
(SHORT SHAFT) -
532-75308 TUBE, Water
(LONG SHAFT)TUBE, Water
(LONG SHAFT) -
626-36556 SEAL, (.500 Inch Outside Diameter), WATER TUBESEAL, (.500 Inch Outside Diameter), WATER TUBE
-
723-13127 BEARING, WATER TUBE SEALBEARING, WATER TUBE SEAL
-
854-79791 CLAMP, CO-PILOTCLAMP, CO-PILOT
-
988669 MOUNT, RUBBER (TOP)
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowMOUNT, RUBBER (TOP)
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
988669 MOUNT, RUBBER (BOTTOM)
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & BelowMOUNT, RUBBER (BOTTOM)
SN# US-5805430/Australia-8068064/Belgium-9294810/Canada-7166327 & Below -
988669 MOUNT, RUBBER (TOP AND BOTTOM)
SN# US-5805431/Belgium-9294811/Canada-7166328 & UpMOUNT, RUBBER (TOP AND BOTTOM)
SN# US-5805431/Belgium-9294811/Canada-7166328 & Up -
1023-74308 BUSHING, RUBBER MOUNTBUSHING, RUBBER MOUNT
-
1198496A1 BRACKET ASSEMBLY, STEERING ARMBRACKET ASSEMBLY, STEERING ARM
-
1210-75840 SCREW, (#10-24 x .880), STEERING ARM BRACKETSCREW, (#10-24 x .880), STEERING ARM BRACKET
-
1311-82670911 NUT, (.312-24) Stainless Steel, GEAR HOUSING STUDNUT, (.312-24) Stainless Steel, GEAR HOUSING STUD
-
-75311T ADAPTOR, DRIVESHAFT HOUSING
LONG SHAFTADAPTOR, DRIVESHAFT HOUSING
LONG SHAFT -
-94909 BLOCK, Bearing, DRIVESHAFT
LONG SHAFTBLOCK, Bearing, DRIVESHAFT
LONG SHAFT -
-10-26668 SCREW, ADAPTOR
LONG SHAFTSCREW, ADAPTOR
LONG SHAFT -
-27-77586A78 GASKET SETGASKET SET
