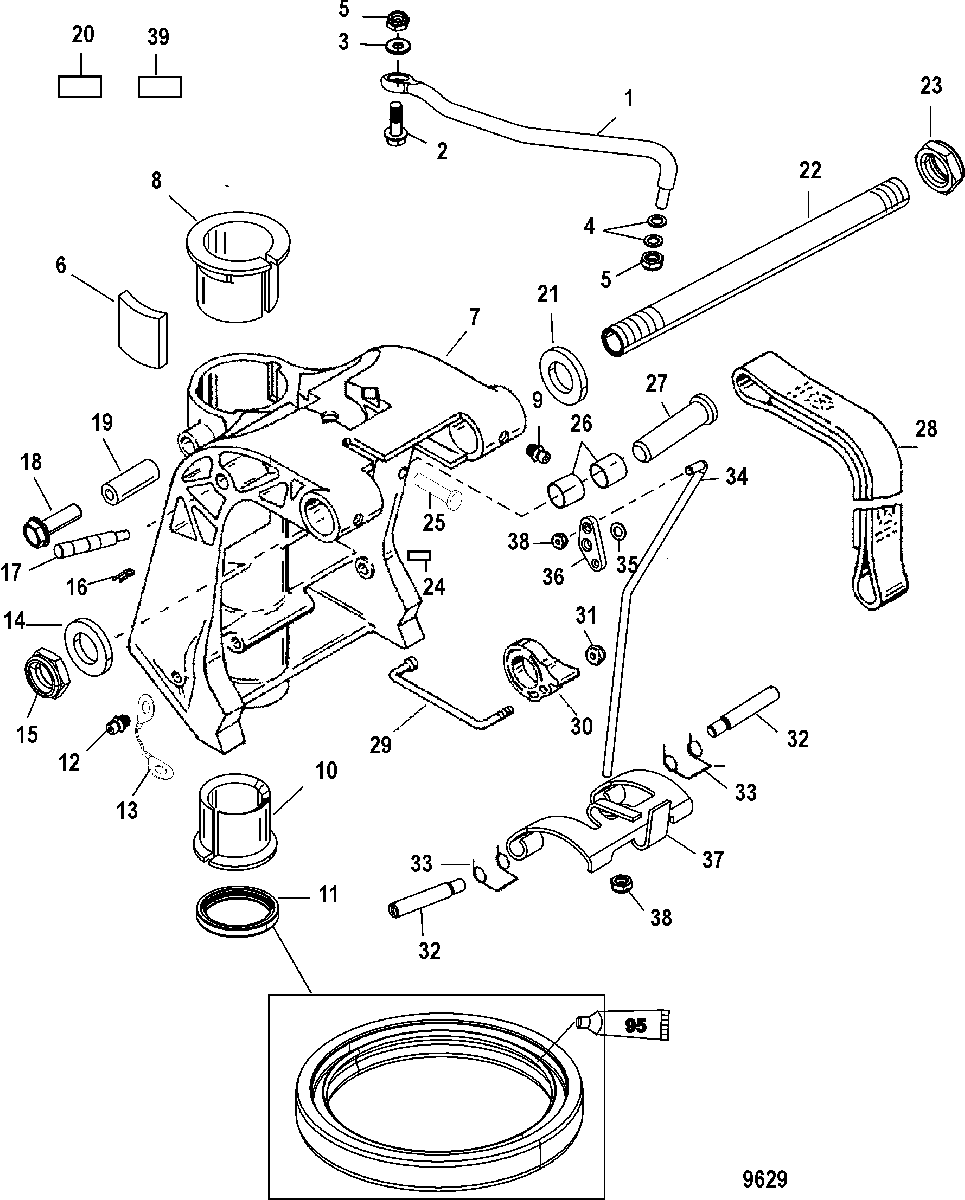

Swivel Bracket для Mercury - 40 (2 CYL.) 1B000001 & Up
-
№АртикулНазвание
-
119608A14 ATTACHING KIT, Engine SteeringATTACHING KIT, Engine Steering
-
210-823919 SCREW, (.375-24 x 1.500)SCREW, (.375-24 x 1.500)
-
312-8M0109680 WASHER, (.390 x .546 x .12)WASHER, (.390 x .546 x .12)
-
412-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
511-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
511-8M0042636 NUT, (.375-24) BrassNUT, (.375-24) Brass
-
6822397 PUCK, Co-Pilot
(Non Handle)PUCK, Co-Pilot
(Non Handle) -
73410-827402T5 SWIVEL BRACKET
(Power Trim/Manual Trim)SWIVEL BRACKET
(Power Trim/Manual Trim) -
823-8217711 BUSHING, UpperBUSHING, Upper
-
922-74036 FITTING, GreaseFITTING, Grease
-
1023-821777 BUSHING, LowerBUSHING, Lower
-
1126-822404 SEALSEAL
-
1222-74036 FITTING, GreaseFITTING, Grease
-
1388238A11 CABLE ASSEMBLYCABLE ASSEMBLY
-
1412-19619 WASHERWASHER
-
1511-858869 NUT, (.875-14)NUT, (.875-14)
-
1618-26811 COTTER PINCOTTER PIN
-
17821799002 PIN, Pivot, Reverse LockPIN, Pivot, Reverse Lock
-
1810-4008910 SCREW, (M8 x 10) Stainless Steel
(Handle)SCREW, (M8 x 10) Stainless Steel
(Handle) -
1810-40011149 SCREW, (M8 x 25) Stainless Steel
(Non Handle)SCREW, (M8 x 25) Stainless Steel
(Non Handle) -
198282451 SEAL
(Non Handle)SEAL
(Non Handle) -
20NSS NOT SOLD SEPARATE, Decal-Shallow Water DriveNOT SOLD SEPARATE, Decal-Shallow Water Drive
-
2112-19619 WASHERWASHER
-
228M0041938 TILT TUBETILT TUBE
-
2311-858869 NUT, (.875-14)NUT, (.875-14)
-
2437-8237011 DECAL, Co-PilotDECAL, Co-Pilot
-
2517-821539 PIN, TrilobePIN, Trilobe
-
2623-823507 BUSHINGBUSHING
-
2717-822480 PIN, Pivot, UpperPIN, Pivot, Upper
-
288217751 STRAP, Tilt Stop
(Non Power Trim)STRAP, Tilt Stop
(Non Power Trim) -
29821800 LINK, Upper-Reverse LockLINK, Upper-Reverse Lock
-
308217981 LEVER, Reverse LockLEVER, Reverse Lock
-
3111-F1669 NUT, (#6-32)NUT, (#6-32)
-
32826578 PIN, Reverse LockPIN, Reverse Lock
-
3324-F366300 SPRING, Reverse LockSPRING, Reverse Lock
-
348M0026107 LINK, Reverse LockLINK, Reverse Lock
-
3512-71055 WASHERWASHER
-
36825181003 ARM, Reverse LockARM, Reverse Lock
-
378289861 LOCK, ReverseLOCK, Reverse
-
3811-826709106 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
39NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
