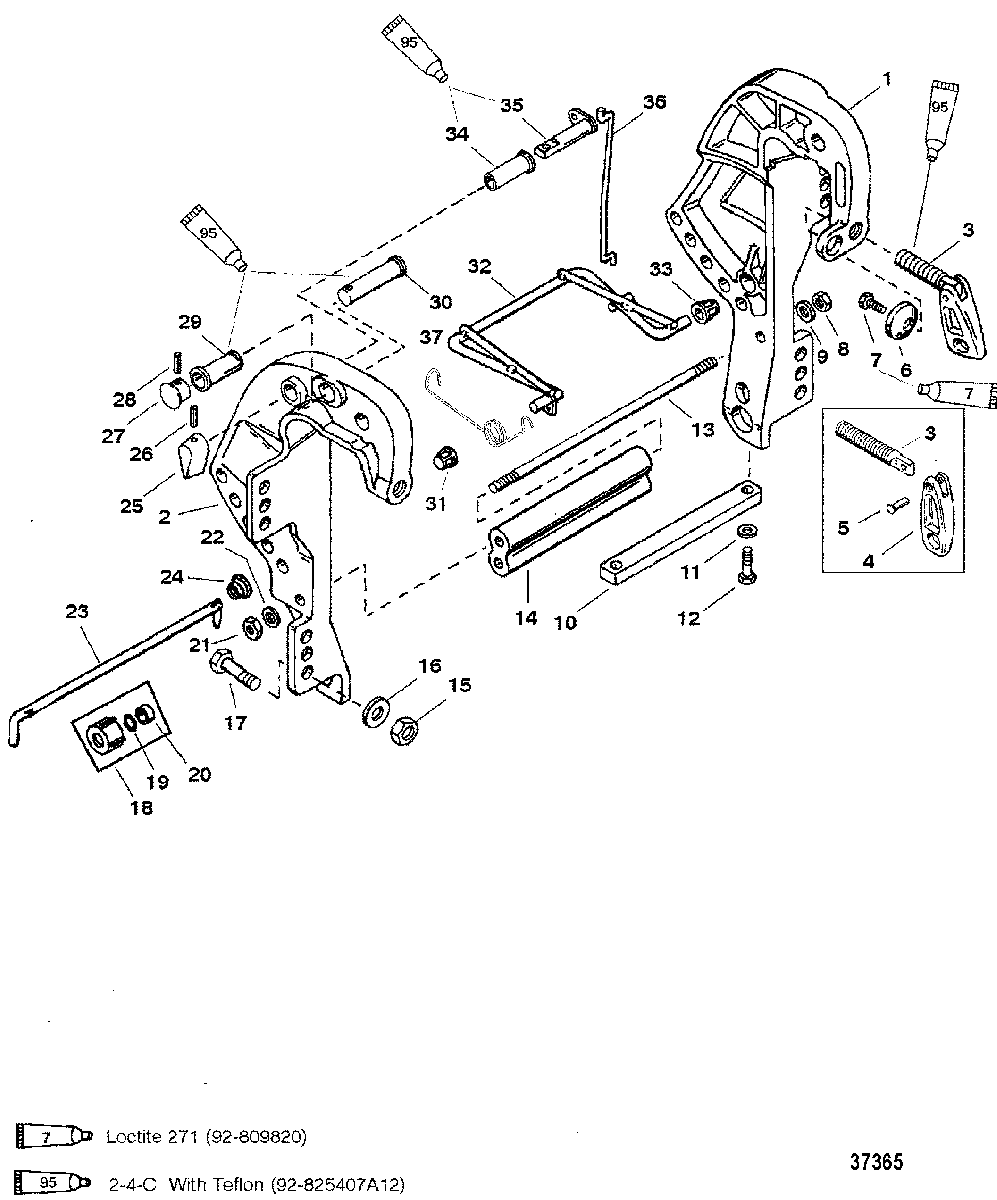

CLAMP BRACKET для Mercury - 40 (2 CYL.) 9854537 THRU 0P016999
-
№АртикулНазвание
-
13411-821773A3 CLAMP BRACKET
(BLACK) PORT SHORT 1 LOWER MOUNTING HOLECLAMP BRACKET
(BLACK) PORT SHORT 1 LOWER MOUNTING HOLE -
13411-821773A4 CLAMP BRACKET
(GRAY) PORT SHORT 1 LOWER MOUNTING HOLECLAMP BRACKET
(GRAY) PORT SHORT 1 LOWER MOUNTING HOLE -
13411-821773T1 CLAMP BRACKET
(BLACK) PORT LONG 3 LOWER MOUNTING HOLESCLAMP BRACKET
(BLACK) PORT LONG 3 LOWER MOUNTING HOLES -
13411-821773A2 CLAMP BRACKET
(GRAY) PORT LONG 3 LOWER MOUNTING HOLESCLAMP BRACKET
(GRAY) PORT LONG 3 LOWER MOUNTING HOLES -
23412-821774T6 CLAMP BRACKET
(BLACK) STBD. SHORT 1 LOWER MOUNTING HOLECLAMP BRACKET
(BLACK) STBD. SHORT 1 LOWER MOUNTING HOLE -
23412-821774T7 CLAMP BRACKET
(GRAY) STBD. SHORT 1 LOWER MOUNTING HOLECLAMP BRACKET
(GRAY) STBD. SHORT 1 LOWER MOUNTING HOLE -
23412-821774T8 CLAMP BRACKET
(BLACK) STBD. LONG 3 LOWER MOUNTING HOLESCLAMP BRACKET
(BLACK) STBD. LONG 3 LOWER MOUNTING HOLES -
23412-821774T8 CLAMP BRACKET
(GRAY) STBD. LONG 3 LOWER MOUNTING HOLESCLAMP BRACKET
(GRAY) STBD. LONG 3 LOWER MOUNTING HOLES -
310-818883A1 THUMB SCREW ASSEMBLY
MANUALTHUMB SCREW ASSEMBLY
MANUAL -
4NSS NOT SOLD SEPARATE, HANDLE
MANUALNOT SOLD SEPARATE, HANDLE
MANUAL -
5NSS NOT SOLD SEPARATE, RIVET
MANUALNOT SOLD SEPARATE, RIVET
MANUAL -
612-818884 WASHER
MANUALWASHER
MANUAL -
710-768042 SHOULDER SCREW, Hex
MANUALSHOULDER SCREW, Hex
MANUAL -
811-40140 NUT, (M10)NUT, (M10)
-
912-4002319 WASHERWASHER
-
1097-8252711 ANODEANODE
-
1112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1210-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
1316-8M0034459 STUD, (M10 x 277)STUD, (M10 x 277)
-
1423-824952 SPACERSPACER
-
1511-91962 NUT, (.500-20)
(LONG)NUT, (.500-20)
(LONG) -
1511-91962 NUT, (.500-20)
(SHORT) (TOP)NUT, (.500-20)
(SHORT) (TOP) -
1511-4013710 NUT, (M10)
(SHORT) (BOTTOM)NUT, (M10)
(SHORT) (BOTTOM) -
1612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(LONG)WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(LONG) -
1612-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(SHORT) (TOP)WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
(SHORT) (TOP) -
1612-4002319 WASHER
(SHORT) (BOTTOM)WASHER
(SHORT) (BOTTOM) -
1710-814259 SCREW, (.500-20 x 4.00)
(LONG)SCREW, (.500-20 x 4.00)
(LONG) -
1710-814259 SCREW, (.500-20 x 4.00)
(SHORT) (TOP)SCREW, (.500-20 x 4.00)
(SHORT) (TOP) -
1710-826110 SCREW
(SHORT) (BOTTOM)SCREW
(SHORT) (BOTTOM) -
1819624A1 SEAL KITSEAL KIT
-
1925-29619 O-RING, (.583 x .103)O-RING, (.583 x .103)
-
2023-78861 SPACERSPACER
-
2111-40140 NUT, (M10)NUT, (M10)
-
2212-4002319 WASHERWASHER
-
2317-8M0026103 PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
2424-821461 SPRINGSPRING
-
25822409 LEVERLEVER
-
2617-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
27822401 CAPCAP
-
2817-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
2923-823589 BUSHINGBUSHING
-
3017-8224001 PINPIN
-
3123-824858 BUSHING (PLASTIC)BUSHING (PLASTIC)
-
32878580 ROD, Shallow Water DriveROD, Shallow Water Drive
-
3323-824858 BUSHING (PLASTIC)BUSHING (PLASTIC)
-
3423-823812 BUSHINGBUSHING
-
35822411 ARMARM
-
36878563 LINK RODLINK ROD
-
3724-832085A1 SPRINGSPRING
