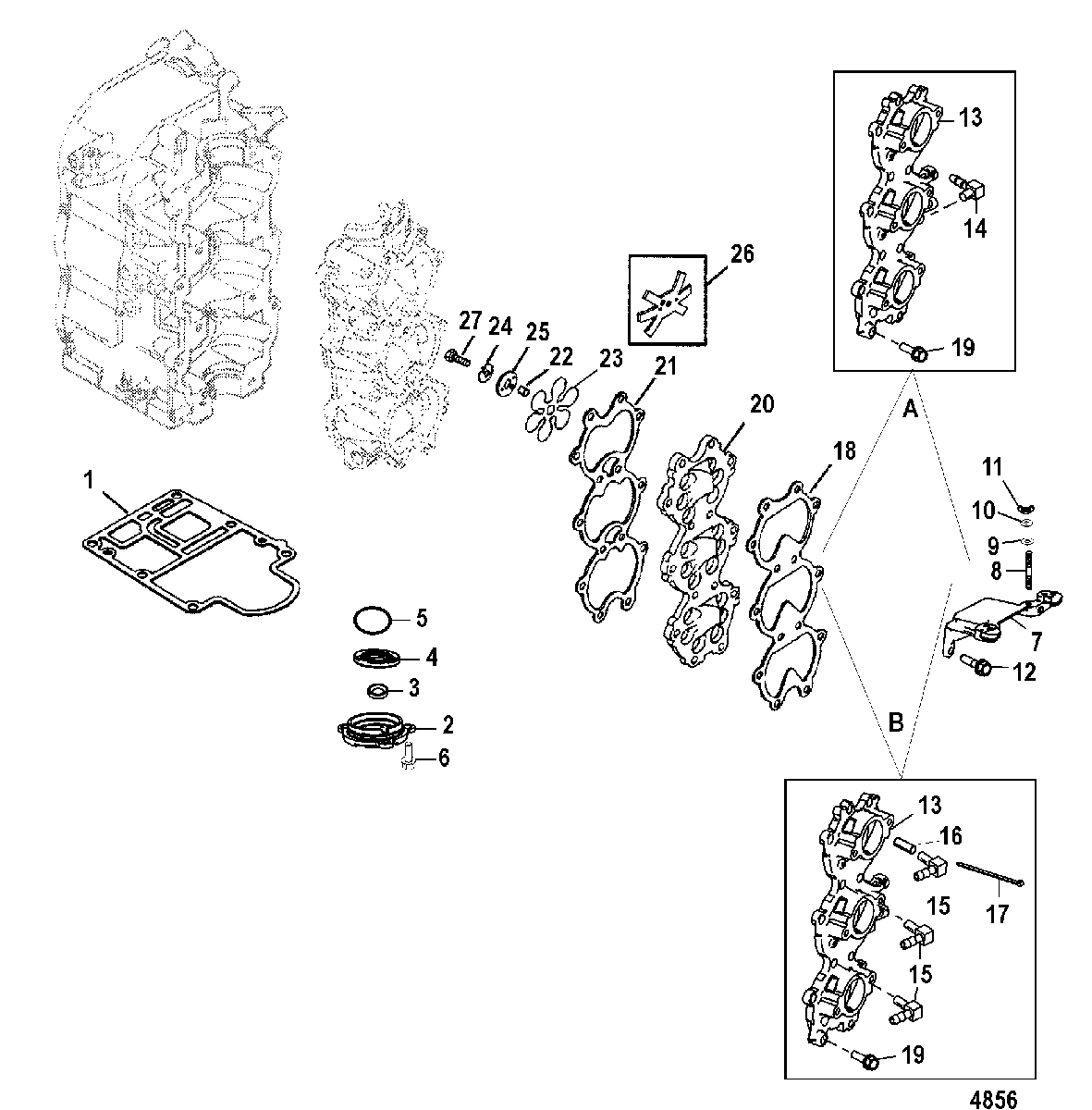

Induction Manifold and Reed Block для Mercury - 40 (3 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
127-8M0000822 GASKETGASKET
-
21171-9812A8 END CAP ASSEMBLYEND CAP ASSEMBLY
-
326-828932 SEAL, OilSEAL, Oil
-
426-41953 SEALSEAL
-
525-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
610-81742720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
719077A07 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
816-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
912-49221 WASHER, (.187 x .500 x .062) Neoprene
(Electric)WASHER, (.187 x .500 x .062) Neoprene
(Electric) -
1012-69056 WASHER, (.255 x .620 x .030) Stainless Steel
(Electric)WASHER, (.255 x .620 x .030) Stainless Steel
(Electric) -
1111-816872 WING NUT
(Electric)WING NUT
(Electric) -
1210-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
13827998A1 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
1422-19725 ELBOW
(Electric)ELBOW
(Electric) -
1522-19725 ELBOW
(Manual)ELBOW
(Manual) -
1622-15026 CAP
(Manual)CAP
(Manual) -
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1827-812869 GASKETGASKET
-
1910-81742730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
2019075A3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
2127-812868 GASKETGASKET
-
22NSS NOT SOLD SEPARATE
(Dowel Pin)NOT SOLD SEPARATE
(Dowel Pin) -
2334-812880A03 REED ASSEMBLYREED ASSEMBLY
-
2414-429821 TAB WASHERTAB WASHER
-
25812879002 RETAINER, Reed
(50)RETAINER, Reed
(50) -
26825267 RETAINER, Reed
(40)RETAINER, Reed
(40) -
2710-88421471 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-828553A97 GASKET SETGASKET SET
