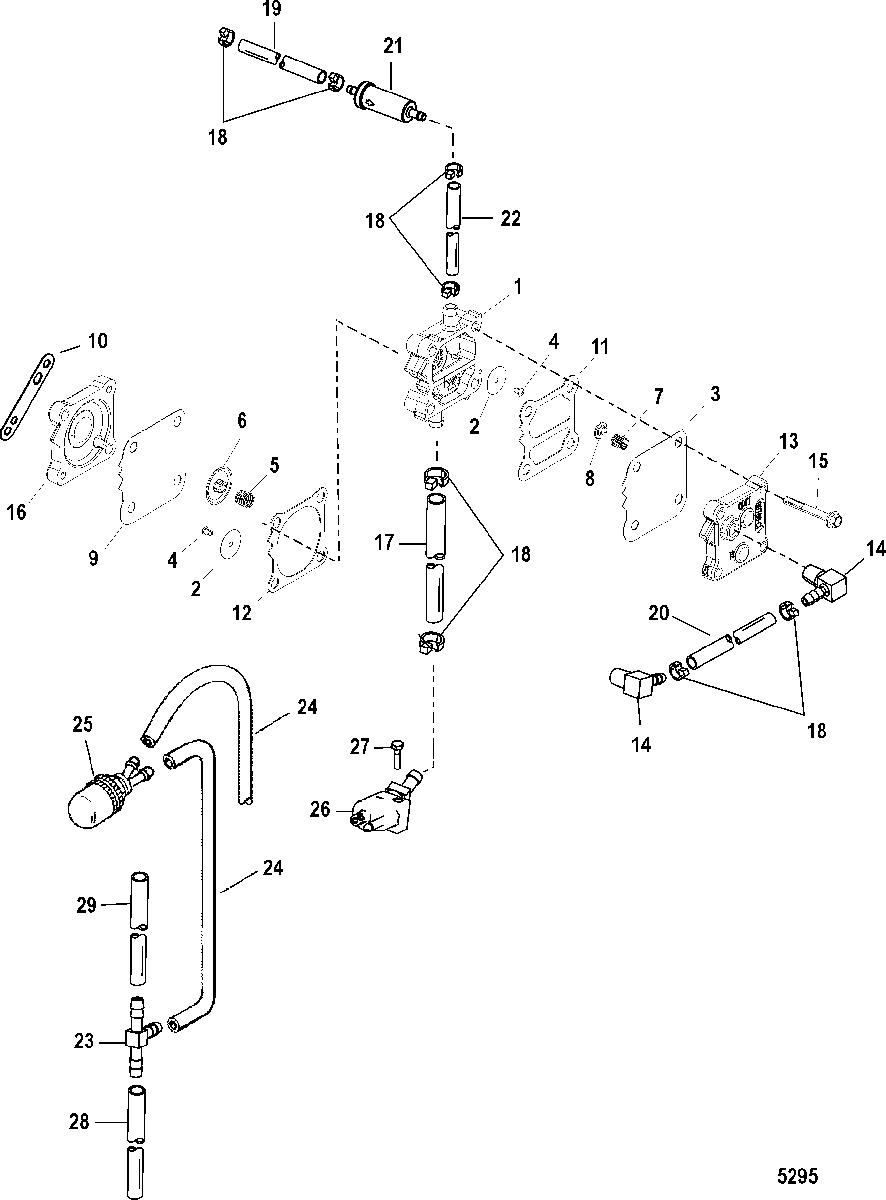

Fuel Pump(Manual) для Mercury - 40 (3 CYL.) 0P325500 & Up
-
№АртикулНазвание
-
-14360A78 PUMP KIT, FuelPUMP KIT, Fuel
-
1NSS NOT SOLD SEPARATE, Fuel PumpNOT SOLD SEPARATE, Fuel Pump
-
221-857005A1 DIAPHRAGM KITDIAPHRAGM KIT
-
3NSS NOT SOLD SEPARATE, Diaphragm KitNOT SOLD SEPARATE, Diaphragm Kit
-
4NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
5NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
6NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
7NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
8NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
1027-987691 GASKETGASKET
-
11NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
12NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
13987752 PLATEPLATE
-
1422-433351 CONNECTOR, (90 Degree) With Vibraseal ( To Crankcase)CONNECTOR, (90 Degree) With Vibraseal ( To Crankcase)
-
1510-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
1510-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
16144303 BASEBASE
-
1732-8M0108349 TUBING, (.312) (70.00 Inches Bulk) (Cut to 22.00 Inch Length)TUBING, (.312) (70.00 Inches Bulk) (Cut to 22.00 Inch Length)
-
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1932-830761 LINE, Fuel (To Carburetor)LINE, Fuel (To Carburetor)
-
2032-9912878 HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)HOSE, (.187) (26.00 Inches Bulk) (Cut to 4.50 Inch Length)
-
2135-816296Q2 FILTER, FuelFILTER, Fuel
-
2232-831949 HOSEHOSE
-
2322-59169003 FITTING, TeeFITTING, Tee
-
2432-892024122 TUBING, (240.00 Inches Bulk) (Cut to 9.50 Inch length)
(To Top Carburetor)TUBING, (240.00 Inches Bulk) (Cut to 9.50 Inch length)
(To Top Carburetor) -
25858763 PRIMER BULBPRIMER BULB
-
2622-816856T01 CONNECTOR ASSEMBLY, FuelCONNECTOR ASSEMBLY, Fuel
-
2710-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
2832-892024122 TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
(To Manifold Bottom)TUBING, (240.00 Inches Bulk) (Cut to 5.50 Inch Length)
(To Manifold Bottom) -
2932-892024122 TUBING, (240.00 Inches Bulk) (Cut to 1.50 Inch Length)
(To Manifold Top)TUBING, (240.00 Inches Bulk) (Cut to 1.50 Inch Length)
(To Manifold Top) -
-852067T98 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-828553A97 GASKET SETGASKET SET
