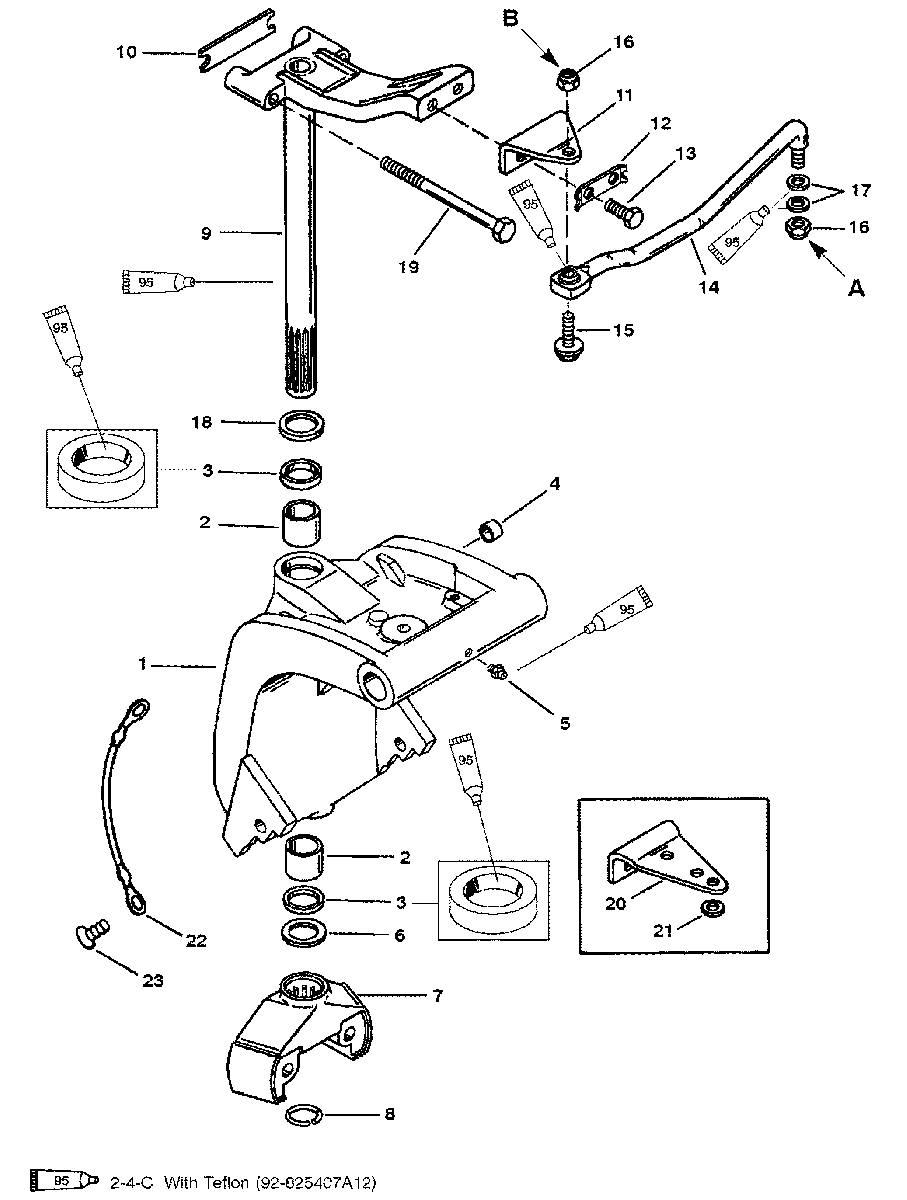

SWIVEL BRACKET для Mercury - 40 (4 CYL.) 9570790 AND UP
-
№АртикулНазвание
-
13506-9749A1 SWIVEL BRACKET
(BLACK) S/N D181999 & BELOWSWIVEL BRACKET
(BLACK) S/N D181999 & BELOW -
13506-9749A2 SWIVEL BRACKET
(GRAY) S/N D181999 & BELOWSWIVEL BRACKET
(GRAY) S/N D181999 & BELOW -
13416-822862A1 SWIVEL BRACKET
(BLACK) S/N D182000 & ABOVESWIVEL BRACKET
(BLACK) S/N D182000 & ABOVE -
13416-822862A2 SWIVEL BRACKET
(GRAY) S/N D182000 & ABOVESWIVEL BRACKET
(GRAY) S/N D182000 & ABOVE -
13416-822862T3 SWIVEL BRACKET
(TRACKER GRAPHITE GRAY) S/N D182000 & ABOVESWIVEL BRACKET
(TRACKER GRAPHITE GRAY) S/N D182000 & ABOVE -
223-821124 BEARINGBEARING
-
326-32911 OIL SEALOIL SEAL
-
423-19606 BEARINGBEARING
-
522-74036 GREASE FITTINGGREASE FITTING
-
612-25176 WASHERWASHER
-
7818536F2 BOTTOM YOKE
(BLACK) SHORTBOTTOM YOKE
(BLACK) SHORT -
7818536F1 BOTTOM YOKE
(GRAY) SHORTBOTTOM YOKE
(GRAY) SHORT -
777416T1 BOTTOM YOKE
(BLACK) LONGBOTTOM YOKE
(BLACK) LONG -
777416T6 BOTTOM YOKE
(GRAY) LONGBOTTOM YOKE
(GRAY) LONG -
777416F5 BOTTOM YOKE
(TRACKER GRAPHITE GRAY) LONGBOTTOM YOKE
(TRACKER GRAPHITE GRAY) LONG -
853-77415 RETAINING RINGRETAINING RING
-
919459T3 STEERING ARM ASSEMBLY
(BLACK)STEERING ARM ASSEMBLY
(BLACK) -
919459A4 STEERING ARM ASSEMBLY
(GRAY)STEERING ARM ASSEMBLY
(GRAY) -
919459A7 STEERING ARM ASSEMBLY
(TRACKER GRAPHITE GRAY)STEERING ARM ASSEMBLY
(TRACKER GRAPHITE GRAY) -
1030711 BUMPERBUMPER
-
1119616A1 BRACKET
(BLACK) NON-HANDLEBRACKET
(BLACK) NON-HANDLE -
1119616T6 BRACKET
(GRAY) NON-HANDLEBRACKET
(GRAY) NON-HANDLE -
1119616A1 BRACKET
(TRACKER GRAPHITE GRAY) NON-HANDLEBRACKET
(TRACKER GRAPHITE GRAY) NON-HANDLE -
1276533 STRAP
NON-HANDLESTRAP
NON-HANDLE -
1310-34352 SCREW
NON-HANDLESCREW
NON-HANDLE -
-19608A14 RIDE GUIDE STEERING KIT
NON-HANDLERIDE GUIDE STEERING KIT
NON-HANDLE -
1419608A14 LINK ROD
(STARBOARD) NON-HANDLELINK ROD
(STARBOARD) NON-HANDLE -
1419609A6 LINK ROD
(PORT) NON-HANDLELINK ROD
(PORT) NON-HANDLE -
1510-849838 SCREW
NON-HANDLESCREW
NON-HANDLE -
1611-8M0042636 NUT
NON-HANDLENUT
NON-HANDLE -
1712-37828 WASHER
NON-HANDLEWASHER
NON-HANDLE -
1812-52865 WASHERWASHER
-
1910-66897 SCREWSCREW
-
2019617 BRACKET-RIDE GUIDEBRACKET-RIDE GUIDE
-
2112-8M0109680 WASHERWASHER
-
2288238A10 CABLE-GROUNDCABLE-GROUND
-
2310-41508 SCREW (1/4-20 X .50)SCREW (1/4-20 X .50)
