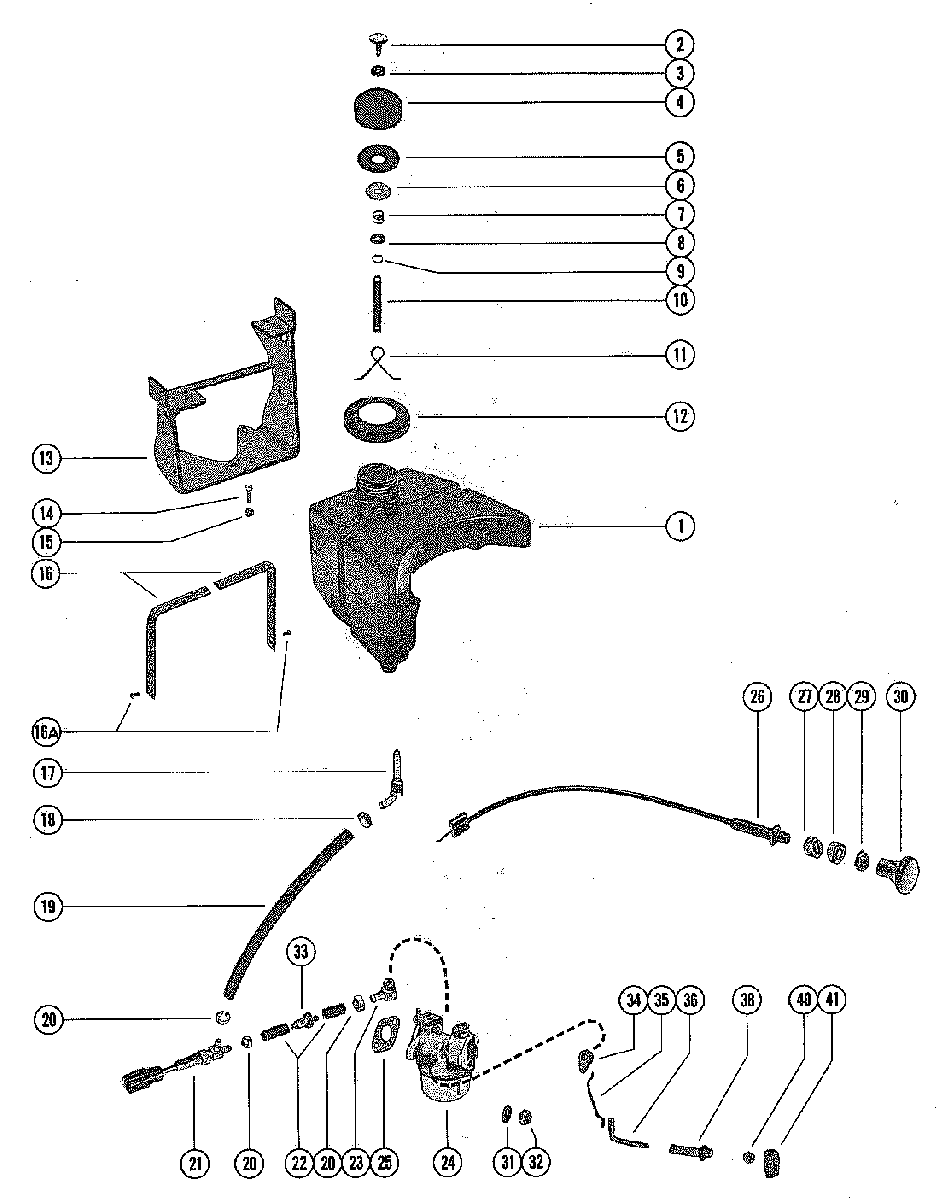

FUEL TANK, FUEL LINES AND CARBURETOR для Mercury - 40, 4 (GNAT 2 CYL.) 7085673 THRU 7146487
-
№АртикулНазвание
-
11248-6114 FUEL TANK (SERIAL #9191588 AND BELOW)FUEL TANK (SERIAL #9191588 AND BELOW)
-
11248-8083A2 FUEL TANK (SERIAL #9191589 AND UP)FUEL TANK (SERIAL #9191589 AND UP)
-
210-70298 SCREW, VENT - FUEL CAPSCREW, VENT - FUEL CAP
-
312-49221 WASHER, VENT SCREWWASHER, VENT SCREW
-
436-75338 CAP, FUEL
SERIAL #9191588 AND BELOWCAP, FUEL
SERIAL #9191588 AND BELOW -
527-70297 GASKET, FUEL CAP
SERIAL #9191588 AND BELOWGASKET, FUEL CAP
SERIAL #9191588 AND BELOW -
436-78573A1 CAP, FUEL SERIAL
SERIAL #9191589 AND UPCAP, FUEL SERIAL
SERIAL #9191589 AND UP -
527-78577 GASKET, FUEL CAP
SERIAL #9191589 AND UPGASKET, FUEL CAP
SERIAL #9191589 AND UP -
612-38255 WASHER, FUEL CAPWASHER, FUEL CAP
-
724-22227 SPRING, FUEL CAPSPRING, FUEL CAP
-
812-71055 WASHER, FUEL CAPWASHER, FUEL CAP
-
918-210711 PIN, FUEL CAP - RINGPIN, FUEL CAP - RING
-
10752373 CHAIN, FUEL CAPCHAIN, FUEL CAP
-
1124-85767 SPRING, FUEL CAP - RETAINING
SERIAL #9191588 AND BELOWSPRING, FUEL CAP - RETAINING
SERIAL #9191588 AND BELOW -
1227-70554 GASKET, FUEL TANK TO COWL
SERIAL #9191588 AND BELOWGASKET, FUEL TANK TO COWL
SERIAL #9191588 AND BELOW -
1373973 BRACKET, FUEL TANK AND IGNITION COIL
SERIAL #9191588 AND BELOWBRACKET, FUEL TANK AND IGNITION COIL
SERIAL #9191588 AND BELOW -
1124-85767 SPRING, FUEL CAP - RETAINING
SERIAL #9191589 AND UPSPRING, FUEL CAP - RETAINING
SERIAL #9191589 AND UP -
1227-78578 GASKET, FUEL TANK TO COWL
SERIAL #9191589 AND UPGASKET, FUEL TANK TO COWL
SERIAL #9191589 AND UP -
1378579 BRACKET, FUEL TANK AND IGNITION COIL
SERIAL #9191589 AND UPBRACKET, FUEL TANK AND IGNITION COIL
SERIAL #9191589 AND UP -
1410-37571 SCREW, BRACKET TO CYLINDER BLOCK (1/2")SCREW, BRACKET TO CYLINDER BLOCK (1/2")
-
1511-859124 NUT, BRACKET SCREWNUT, BRACKET SCREW
-
1675689A1 STRAP ASSEMBLY, FUEL TANK ATTACHINGSTRAP ASSEMBLY, FUEL TANK ATTACHING
-
16A10-26668 SCREW
STRAP ASSEMBLY TO FUEL TANK BRACKETSCREW
STRAP ASSEMBLY TO FUEL TANK BRACKET -
1722-70997 FITTING, FUEL TANK (FILTER)FITTING, FUEL TANK (FILTER)
-
1854-68725 CLAMP, FUEL LINE TO FITTINGCLAMP, FUEL LINE TO FITTING
-
1932-8M0108355 FUEL LINE, FUEL TANK TO VALVE (8")FUEL LINE, FUEL TANK TO VALVE (8")
-
2054-68424 CLAMP, FUEL LINE ATTACHINGCLAMP, FUEL LINE ATTACHING
-
2120-70555 VALVE
FUEL SHUT OFF (SERIAL #9191588 AND BELOW)VALVE
FUEL SHUT OFF (SERIAL #9191588 AND BELOW) -
2232-8M0108355 FUEL LINE
VALVE TO CARBURETOR (4" AND 1-1/2")FUEL LINE
VALVE TO CARBURETOR (4" AND 1-1/2") -
2322-19688 FITTING, CARBURETOR TO FUEL LINE (90 DEG.)FITTING, CARBURETOR TO FUEL LINE (90 DEG.)
-
2489977A2 CARBURETORCARBURETOR
-
2527-70417 GASKET, CARBURETOR MOUNTINGGASKET, CARBURETOR MOUNTING
-
2670557 CHOKE CABLE (ROUND SHOULDER)CHOKE CABLE (ROUND SHOULDER)
-
2670557 CHOKE CABLE (SQUARE SHOULDER)CHOKE CABLE (SQUARE SHOULDER)
-
2777999 SPACER, CHOKE KNOB - INNER
USE WITH ROUND SHOULDERED CHOKESPACER, CHOKE KNOB - INNER
USE WITH ROUND SHOULDERED CHOKE -
2878000 SPACER, CHOKE KNOB - OUTER
USE WITH ROUND SHOULDERED CHOKESPACER, CHOKE KNOB - OUTER
USE WITH ROUND SHOULDERED CHOKE -
2911-78045 NUT, LOCKING - CHOKE CABLENUT, LOCKING - CHOKE CABLE
-
3086874 KNOB, CHOKE CABLEKNOB, CHOKE CABLE
-
3112-29245 WASHER, CARBURETOR STUDWASHER, CARBURETOR STUD
-
3211-36069 NUT, CARBURETOR STUDNUT, CARBURETOR STUD
-
3335-76934 FUEL FILTERFUEL FILTER
-
3478049 LEVER, IDLE ADJUSTMENTLEVER, IDLE ADJUSTMENT
-
3578046 LINK, IDLE ADJUSTMENTLINK, IDLE ADJUSTMENT
-
3678048 SHAFT, IDLE ADJUSTMENTSHAFT, IDLE ADJUSTMENT
-
3823-78047 SLEEVE, IDLE ADJUSTMENTSLEEVE, IDLE ADJUSTMENT
-
4011-78045 NUT, CHOKE KNOBNUT, CHOKE KNOB
-
4192434A2 KNOB, CHOKEKNOB, CHOKE
-
4176623 BRACKET, FUEL TANK (LONG SHAFT)BRACKET, FUEL TANK (LONG SHAFT)
-
-27-77586A78 GASKET SETGASKET SET
-
-27-77586A78 GASKET SETGASKET SET
