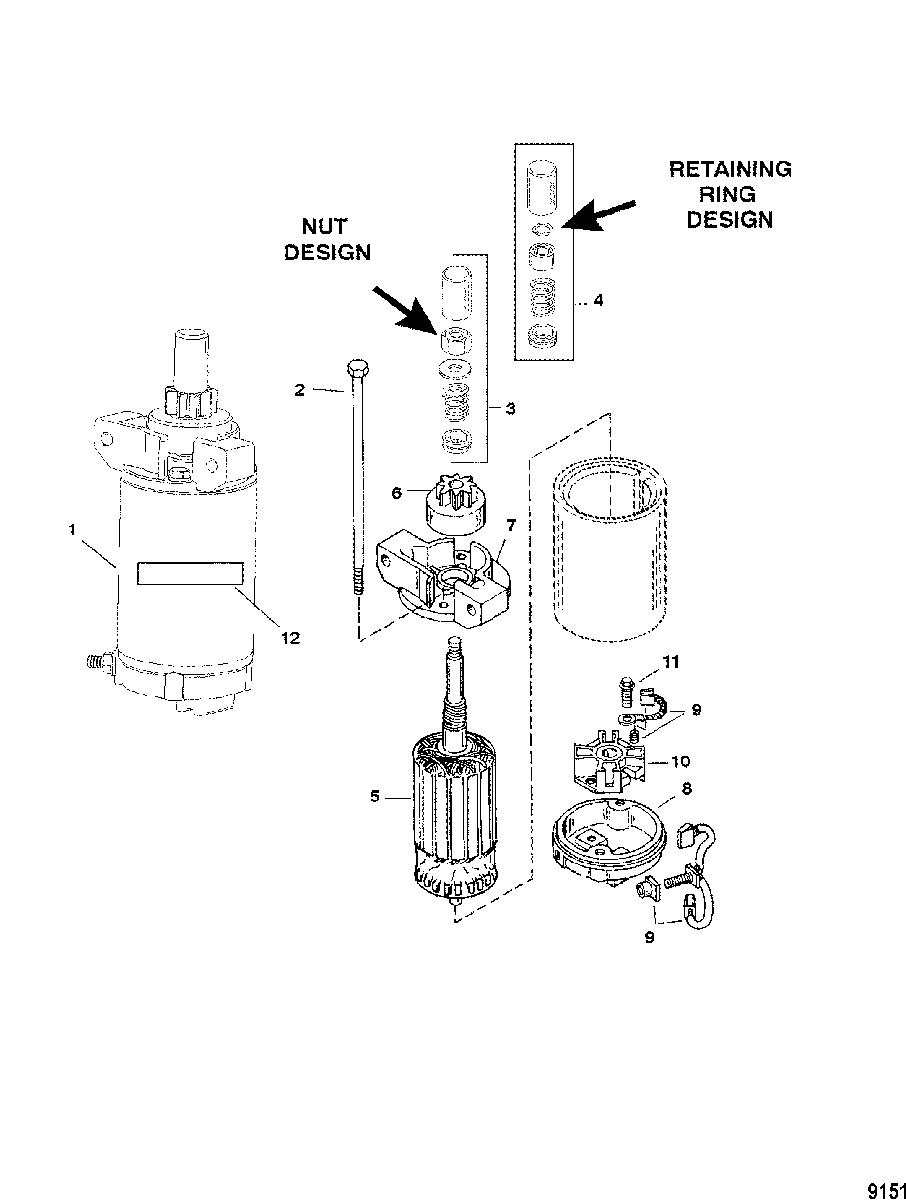

Starter Motor для Mercury - 40 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
150-893887T STARTER MOTOR ASSEMBLY
(NUT DESIGN)STARTER MOTOR ASSEMBLY
(NUT DESIGN) -
150-893887T STARTER MOTOR ASSEMBLY
(RETAINING RING DESIGN)STARTER MOTOR ASSEMBLY
(RETAINING RING DESIGN) -
210-965661 THRU BOLTTHRU BOLT
-
3891752 DRIVE KIT
(NUT DESIGN)DRIVE KIT
(NUT DESIGN) -
4803945 DRIVE KIT
(RETAINING RING DESIGN)DRIVE KIT
(RETAINING RING DESIGN) -
58236382 ARMATURE
(RETAINING RING DESIGN)ARMATURE
(RETAINING RING DESIGN) -
58236384 ARMATURE
(NUT DESIGN)ARMATURE
(NUT DESIGN) -
650-893886T PINIONPINION
-
78236392 DRIVE CAPDRIVE CAP
-
88119011 CAP, CommutatorCAP, Commutator
-
9898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
10898265014 HOLDERHOLDER
-
11F15158 SCREWSCREW
-
1237-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
