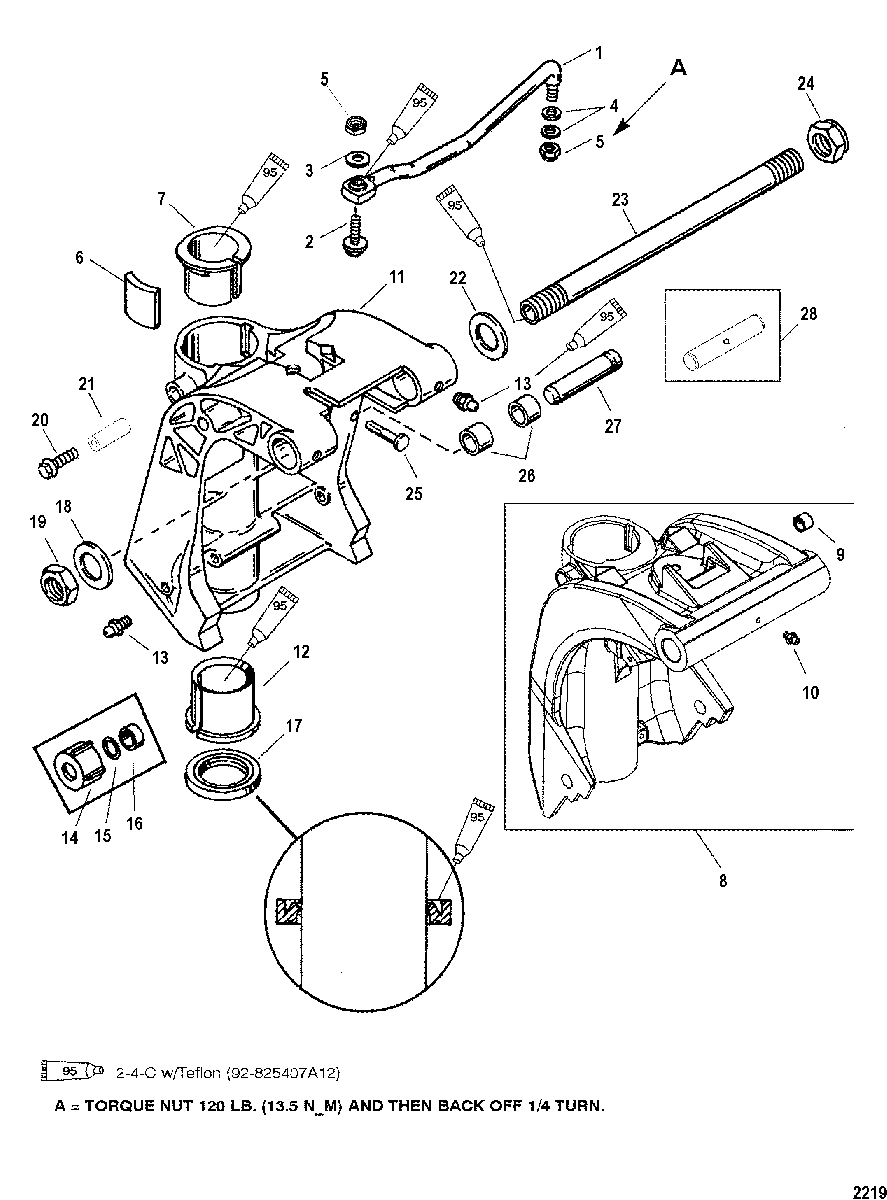

SWIVEL BRACKET для Mercury - 40 (4-STROKE) 9944807 THRU 0P016999
-
№АртикулНазвание
-
119608A14 LINK ROD
NON HANDLELINK ROD
NON HANDLE -
210-823919 SCREW, (.375-24 x 1.500)
NON HANDLESCREW, (.375-24 x 1.500)
NON HANDLE -
312-8M0109680 WASHER, (.390 x .546 x .12)
NON HANDLEWASHER, (.390 x .546 x .12)
NON HANDLE -
412-37828 WASHER, (.390 x .625 x .062) Stainless Steel
NON HANDLEWASHER, (.390 x .625 x .062) Stainless Steel
NON HANDLE -
511-8M0042636 NUT, (.375-24)
NON HANDLENUT, (.375-24)
NON HANDLE -
6822397 PUCKPUCK
-
723-8217711 BUSHINGBUSHING
-
81401-850066T01 SWIVEL BRACKET
(BLACK) BIGFOOTSWIVEL BRACKET
(BLACK) BIGFOOT -
81401-850066T01 SWIVEL BRACKET ASSEMBLY
(GRAY) BIGFOOTSWIVEL BRACKET ASSEMBLY
(GRAY) BIGFOOT -
923-19606 BEARING
BIGFOOTBEARING
BIGFOOT -
1022-74036 FITTING, Grease
BIGFOOTFITTING, Grease
BIGFOOT -
113410-827402T5 SWIVEL BRACKET ASSEMBLY
(BLACK-NON-BIGFOOT) SN# 0G438000 & UpSWIVEL BRACKET ASSEMBLY
(BLACK-NON-BIGFOOT) SN# 0G438000 & Up -
113410-827402T5 SWIVEL BRACKET ASSEMBLY
(GRAY-NON-BIGFOOT) SN# 0G438000 & UpSWIVEL BRACKET ASSEMBLY
(GRAY-NON-BIGFOOT) SN# 0G438000 & Up -
113410-827402T5 SWIVEL BRACKET
(BLACK-NON-BIGFOOT) SN# 0G437999 & BelowSWIVEL BRACKET
(BLACK-NON-BIGFOOT) SN# 0G437999 & Below -
113410-827402T5 SWIVEL BRACKET
(GRAY-NON-BIGFOOT) SN# 0G437999 & BelowSWIVEL BRACKET
(GRAY-NON-BIGFOOT) SN# 0G437999 & Below -
1223-821777 BUSHING (LOWER)
(NON-BIGFOOT) SN# 0G438000 & UpBUSHING (LOWER)
(NON-BIGFOOT) SN# 0G438000 & Up -
1223-821777 BUSHING (LOWER)
(BIGFOOT)BUSHING (LOWER)
(BIGFOOT) -
1223-821777T1 BUSHING (LOWER)
(NON-BIGFOOT) SN# 0G437999 & BelowBUSHING (LOWER)
(NON-BIGFOOT) SN# 0G437999 & Below -
1322-74036 FITTING, GreaseFITTING, Grease
-
1419624A1 SEAL KIT
NON HANDLESEAL KIT
NON HANDLE -
1525-29619 O-RING, (.583 x .103)
NON HANDLEO-RING, (.583 x .103)
NON HANDLE -
1623-78861 SPACER
NON HANDLESPACER
NON HANDLE -
1726-822404 SEALSEAL
-
1812-19619 WASHERWASHER
-
1911-858869 NUT, (7/8-14)NUT, (7/8-14)
-
2010-4008910 SCREW, (M8 x 10) Stainless Steel
(HANDLE)SCREW, (M8 x 10) Stainless Steel
(HANDLE) -
2010-40011149 SCREW, (M8 x 25) Stainless Steel
NON HANDLESCREW, (M8 x 25) Stainless Steel
NON HANDLE -
218282451 SEAL
NON HANDLESEAL
NON HANDLE -
2212-19619 WASHERWASHER
-
238M0041938 TILT TUBETILT TUBE
-
2411-858869 NUT, (7/8-14)NUT, (7/8-14)
-
2517-821539 PIN, TrilobePIN, Trilobe
-
2623-823507 BUSHING
NON-BIGFOOTBUSHING
NON-BIGFOOT -
2717-822480 PIN, Pivot (UPPER)
NON-BIGFOOTPIN, Pivot (UPPER)
NON-BIGFOOT -
2817-822869001 PIN
(BIGFOOT)PIN
(BIGFOOT)
