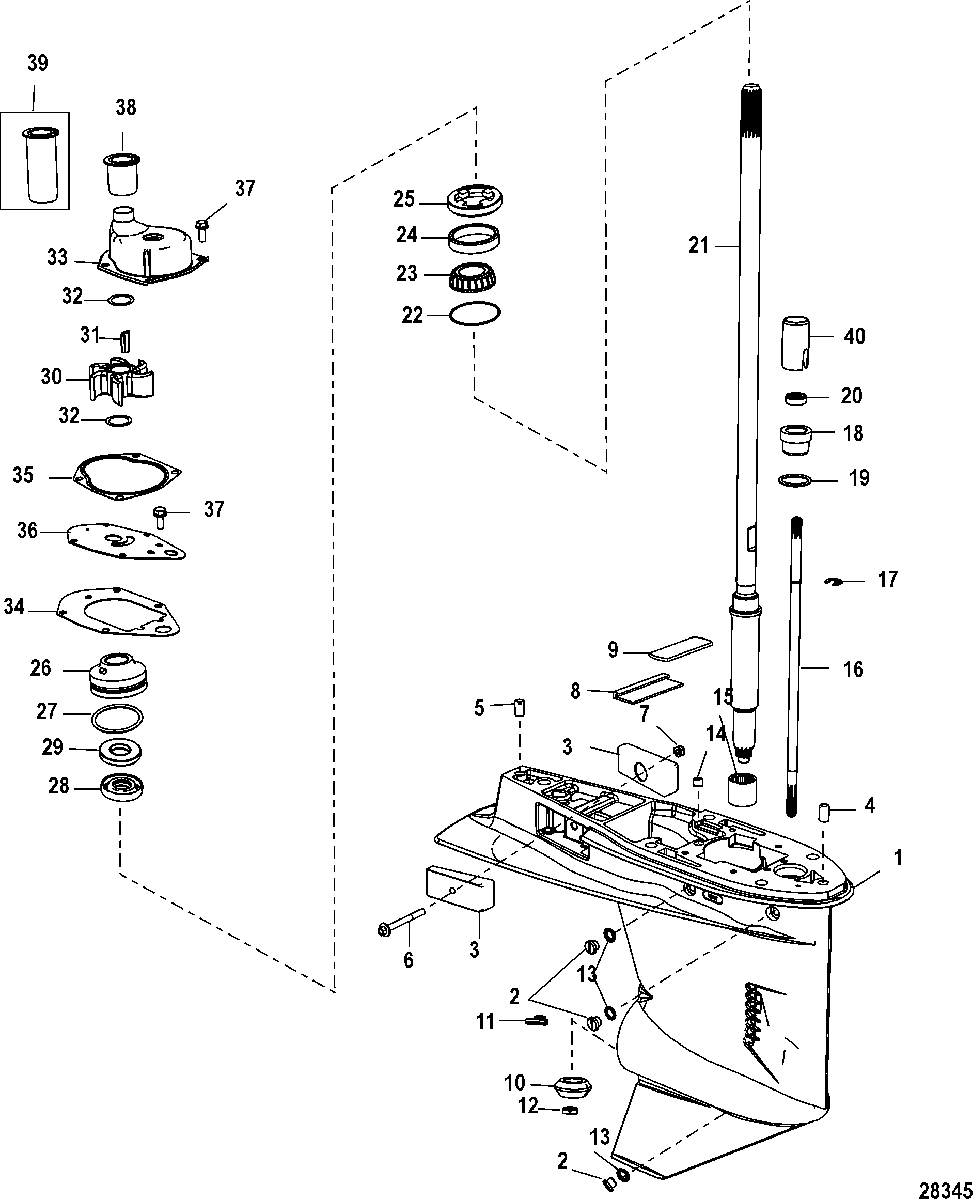

Gear Housing, Driveshaft - 2:1 Gear Ratio для Mercury - 40 CARB (3 CYL.)(4-STROKE) 1C018826 & Up
-
№АртикулНазвание
-
-8M0086323 GEAR HOUSING ASSEMBLY, Complete - Short
SN# 1C267558 & BelowGEAR HOUSING ASSEMBLY, Complete - Short
SN# 1C267558 & Below -
-8M0086323 GEAR HOUSING ASSEMBLY, Complete - Short
SN# 1C267559 & UpGEAR HOUSING ASSEMBLY, Complete - Short
SN# 1C267559 & Up -
-8M0086324 GEAR HOUSING ASSEMBLY, Complete - Long
SN# 1C267558 & BelowGEAR HOUSING ASSEMBLY, Complete - Long
SN# 1C267558 & Below -
-8M0086324 GEAR HOUSING ASSEMBLY, Complete - Long
SN# 1C267559 & UpGEAR HOUSING ASSEMBLY, Complete - Long
SN# 1C267559 & Up -
1893680T06 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
210-79953Q04 SCREW KIT, DrainSCREW KIT, Drain
-
397-826134Q ANODEANODE
-
417-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
610-897657055 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
711-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
8818226A1 SEAL/PLATE KITSEAL/PLATE KIT
-
9NSS NOT SOLD SEPARATE, Filler PlateNOT SOLD SEPARATE, Filler Plate
-
1043-893604T GEAR, PinionGEAR, Pinion
-
11842071A01 CAM, ShiftCAM, Shift
-
1211-55910 NUT, (.437-20)NUT, (.437-20)
-
1326-830749 SEALSEAL
-
1422-878089 PLUG, Pipe (.0625-27)PLUG, Pipe (.0625-27)
-
1531-812768 BEARING, RollerBEARING, Roller
-
16889246A96 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
1753-29641 E RINGE RING
-
1823-813696A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
1925-45258 O-RING, (.987 x .103)O-RING, (.987 x .103)
-
2026-8164641 SEAL, OilSEAL, Oil
-
2145-891549T DRIVESHAFT, ShortDRIVESHAFT, Short
-
2145-859102 DRIVESHAFT, LongDRIVESHAFT, Long
-
2215-8M0063262 SHIM SETSHIM SET
-
2331-77420A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
24NSS NOT SOLD SEPARATE, CupNOT SOLD SEPARATE, Cup
-
2511-8128201 NUTNUT
-
2646-812966A7 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
2725-30224 O-RING, (1.859 x .139)O-RING, (1.859 x .139)
-
2826-814669 SEAL, OilSEAL, Oil
-
2926-814670 SEAL, OilSEAL, Oil
-
3047-19453T IMPELLERIMPELLER
-
3128-8M0032831 KEYKEY
-
3212-8M0005777 WASHERWASHER
-
3346-812966A12 PUMP ASSEMBLY, WaterPUMP ASSEMBLY, Water
-
3427-8M4502052 GASKET, LowerGASKET, Lower
-
3527-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
3619700A2 FACE PLATEFACE PLATE
-
3710-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
388M0000332 COUPLING, ShortCOUPLING, Short
-
398M0109708 COUPLER, LongCOUPLER, Long
-
4023-891637 BUSHINGBUSHING
-
-26-814669A2 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-812966A12 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
