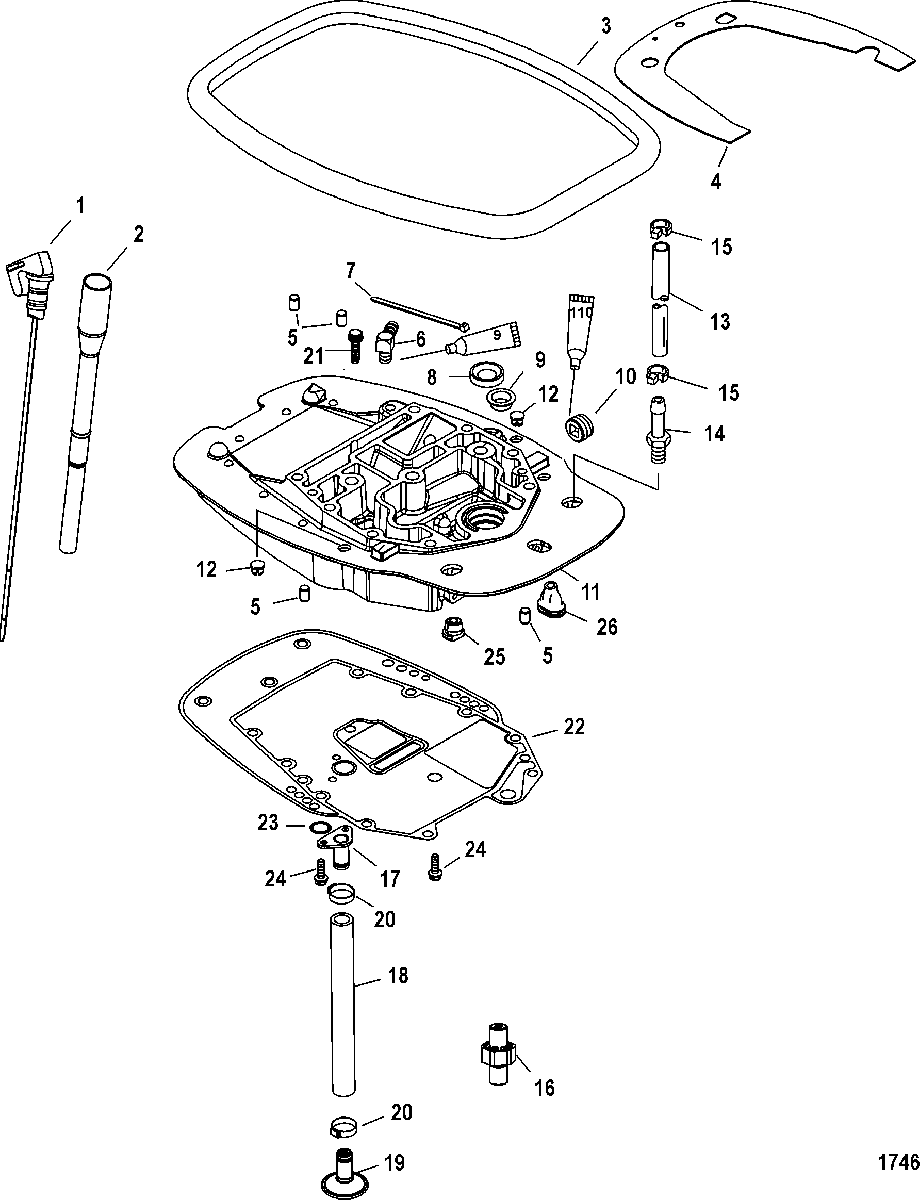

Adaptor Plate для Mercury - 40 EFI (3 CYL.)(4-STROKE) 0P401000 THRU 0P515896
-
№АртикулНазвание
-
1825990 DIPSTICKDIPSTICK
-
2825989003 DIPSTICK TUBEDIPSTICK TUBE
-
38560552 SEALSEAL
-
48289151 HEAT SHIELDHEAT SHIELD
-
517-23784 PIN, DowelPIN, Dowel
-
622-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
826-828932 SEAL, Oil
(Short)SEAL, Oil
(Short) -
826-66301 SEAL, Oil
(Long)SEAL, Oil
(Long) -
923-856743 BUSHING
(Short)BUSHING
(Short) -
923-859594 BUSHING
(Long)BUSHING
(Long) -
1022-889567 PLUG, (.500-14)PLUG, (.500-14)
-
11825228A17 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
1219-822464 PLUGPLUG
-
1332-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 17 Inches)HOSE, (57.00 Inches Bulk) (Cut to 17 Inches)
-
1422-291112 FITTINGFITTING
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
16881872A1 BODY, Oil Pressure ReliefBODY, Oil Pressure Relief
-
17893765 PLATE, Top Oil PickupPLATE, Top Oil Pickup
-
1832-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
19893700 BAFFLE, Oil Pick-upBAFFLE, Oil Pick-up
-
2054-855228 CLAMPCLAMP
-
2110-4007455 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
2227-892320001 GASKETGASKET
-
2325-845746 O-RINGO-RING
-
2410-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
2525-19564001 GROMMET
(Non-Power Trim)GROMMET
(Non-Power Trim) -
2525-19565002 GROMMET
(Power Trim)GROMMET
(Power Trim) -
2625-822408001 GROMMET (Short)GROMMET (Short)
-
-27-859352A02 GASKET SETGASKET SET
