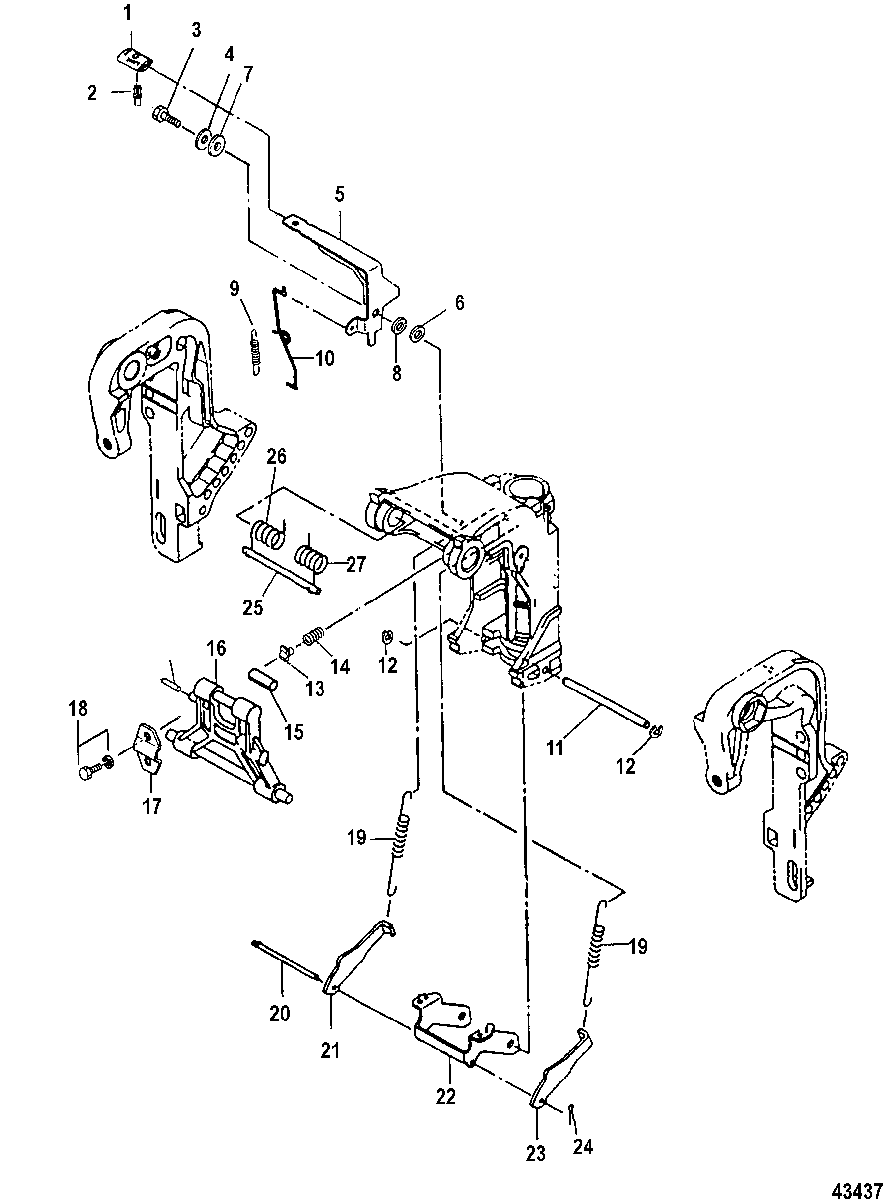

Manual Tilt, Serial Number 0N096058 and Up для Mercury - 40 LIGHTNING XR (International) 0N056165 & Up
-
№АртикулНазвание
-
1853775 GRIPGRIP
-
28M0051399 BUTTONBUTTON
-
310-803790001 BOLT, ShoulderBOLT, Shoulder
-
412-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
5879288263 LEVER, Tilt StopperLEVER, Tilt Stopper
-
612-953921 WASHERWASHER
-
712-953925 WASHERWASHER
-
823-898103107 BUSHINGBUSHING
-
924-8040246 SPRINGSPRING
-
10804050 LINKLINK
-
11804046003 SHAFT, Reverse LockSHAFT, Reverse Lock
-
1253-160572 E RINGE RING
-
1324-953832 SPRINGSPRING
-
14853774 STOPSTOP
-
158251131 BRACKETBRACKET
-
16825112008 STOPPER, TiltSTOPPER, Tilt
-
17879194006 SET PLATESET PLATE
-
1810-8M0098607 BOLTBOLT
-
1924-8040244 SPRING
(Short)SPRING
(Short) -
1924-8040245 SPRING
(Long)(X-Long)SPRING
(Long)(X-Long) -
20804047 ROD, Reverse LockROD, Reverse Lock
-
21804044 LOCK, Reverse (Starboard)LOCK, Reverse (Starboard)
-
22804045004 ARM, Reverse LockARM, Reverse Lock
-
238040441 LOCK, Reverse (Port)LOCK, Reverse (Port)
-
2418-8150261 COTTER PINCOTTER PIN
-
25804049001 SHAFTSHAFT
-
2624-824024012 SPRINGSPRING
-
2724-824024011 SPRINGSPRING
