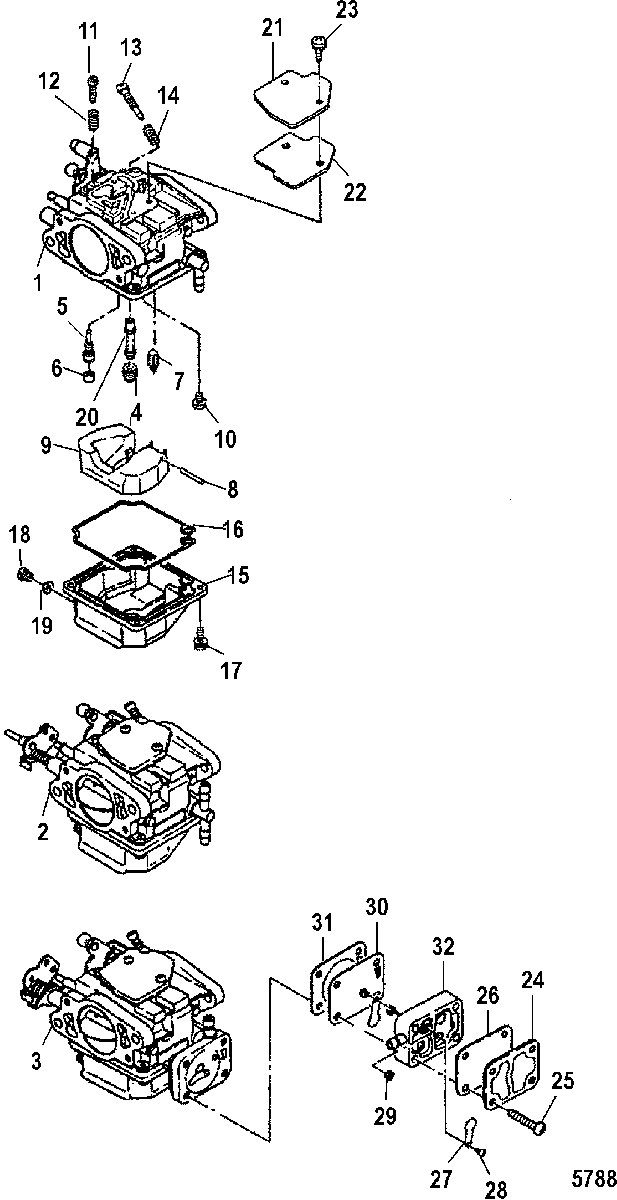

Carburetor для Mercury - 40 MXL SEAPRO 0N037781 THRU 0N056164
-
№АртикулНазвание
-
13303-853720A10 CARBURETOR
(Upper) (Lightning)CARBURETOR
(Upper) (Lightning) -
13303-853720A09 CARBURETOR
(Upper) (Lightning XR/50)CARBURETOR
(Upper) (Lightning XR/50) -
23303-853720A11 CARBURETOR
(Center) (Lightning)CARBURETOR
(Center) (Lightning) -
23303-853720A6 CARBURETOR
(Center) (Lightning XR/50)CARBURETOR
(Center) (Lightning XR/50) -
33303-853720A13 CARBURETOR
(Lower) (Lightning)CARBURETOR
(Lower) (Lightning) -
33303-853720T12 CARBURETOR
(Lower) (Lightning XR/50)CARBURETOR
(Lower) (Lightning XR/50) -
4162503 JET, Main (#122)
(Lightning)JET, Main (#122)
(Lightning) -
4803883 JET, Main (#132)
(Upper/Center-Lightning XR/50)JET, Main (#132)
(Upper/Center-Lightning XR/50) -
4162504 JET, Main (#135)
(Lower-Lightning XR/50)JET, Main (#135)
(Lower-Lightning XR/50) -
5162513 JET, Pilot (#66)
(Lightning)JET, Pilot (#66)
(Lightning) -
5803689 JET, Pilot (#80)
(Lightning XR/50)JET, Pilot (#80)
(Lightning XR/50) -
619-855566 PLUGPLUG
-
7162545 FLOAT NEEDLEFLOAT NEEDLE
-
817-162561 PINPIN
-
9162532 FLOATFLOAT
-
1010-8536981 SCREWSCREW
-
1110-8M0054702 SCREW (Upper Carburetor)SCREW (Upper Carburetor)
-
1210-803509A17 SPRING, (11 mm) (Upper Carburetor)SPRING, (11 mm) (Upper Carburetor)
-
1310-8129355 SCREW, Idle AdjustingSCREW, Idle Adjusting
-
1410-803509A17 SPRING, (11 mm)SPRING, (11 mm)
-
15162583 FLOAT BOWL (Upper/Center Carburetor)FLOAT BOWL (Upper/Center Carburetor)
-
15162584 FLOAT BOWL (Lower Carburetor)FLOAT BOWL (Lower Carburetor)
-
1627-855567 GASKETGASKET
-
1710-162603 SCREWSCREW
-
1810-8M0054703 SCREW, DrainSCREW, Drain
-
1927-8555671 GASKETGASKET
-
208126502 MAIN NOZZLE
(Lightning)MAIN NOZZLE
(Lightning) -
20812650018 MAIN NOZZLE
(Lightning XR/50)MAIN NOZZLE
(Lightning XR/50) -
218555401 COVER, CarburetorCOVER, Carburetor
-
2227-8555412 GASKETGASKET
-
2310-809571003 SCREWSCREW
-
24855568 COVER (Lower Carburetor)COVER (Lower Carburetor)
-
2510-8M0062252 SCREW (Lower Carburetor)SCREW (Lower Carburetor)
-
2627-855569 GASKET (Lower Carburetor)GASKET (Lower Carburetor)
-
2721-851812 CHECK VALVE (Lower Carburetor)CHECK VALVE (Lower Carburetor)
-
2810-851813 SCREW (Lower Carburetor)SCREW (Lower Carburetor)
-
2911-851814 NUT (Lower Carburetor)NUT (Lower Carburetor)
-
308537312 DIAPHRAGM (Lower Carburetor)DIAPHRAGM (Lower Carburetor)
-
3127-8555691 GASKET (Lower Carburetor)GASKET (Lower Carburetor)
-
328537291 HOUSING, Pump (Lower Carburetor)HOUSING, Pump (Lower Carburetor)
-
-853780A2 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
