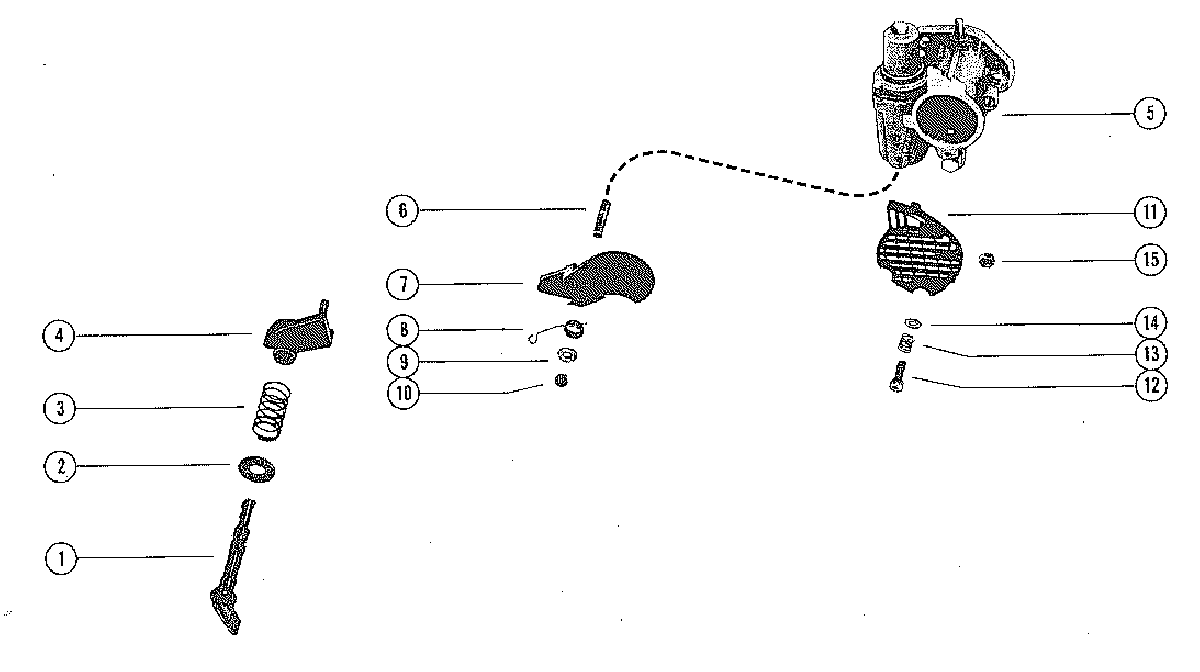

CARBURETOR CHOKE LINKAGE для Mercury - 402, 40 (2 CYL.) 7112423 THRU 7144762
-
№АртикулНазвание
-
147969 KNOB AND SHAFT, CHOKEKNOB AND SHAFT, CHOKE
-
212-30314 WASHER, CHOKE SHAFTWASHER, CHOKE SHAFT
-
324-47968 SPRING, COMPRESSION - CHOKE SHAFTSPRING, COMPRESSION - CHOKE SHAFT
-
455180 LEVER, CHOKELEVER, CHOKE
-
51368-7226A19 CARBURETOR ASSEMBLY
SEE CARBURETOR ASSEMBLY PAGES FOR BREAKDOWNCARBURETOR ASSEMBLY
SEE CARBURETOR ASSEMBLY PAGES FOR BREAKDOWN -
616-69016 STUD, CHOKE SHUTTER PIVOT (CARBURETOR)STUD, CHOKE SHUTTER PIVOT (CARBURETOR)
-
755179 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
824-55163 SPRING, TENSION - CHOKE SHUTTERSPRING, TENSION - CHOKE SHUTTER
-
912-47960 WASHER, CHOKE SHUTTER CARBURETOR STUDWASHER, CHOKE SHUTTER CARBURETOR STUD
-
1011-20110 NUT, CHOKE SHUTTER TO CARBURETOR STUDNUT, CHOKE SHUTTER TO CARBURETOR STUD
-
1135-57819 SCREEN, CARBURETORSCREEN, CARBURETOR
-
1210-58185 SCREW, SCREEN TO CARBURETOR (1")SCREW, SCREEN TO CARBURETOR (1")
-
1324-57818 SPRING, TENSION - SCREEN SCREWSPRING, TENSION - SCREEN SCREW
-
1412-30164 WASHER, SCREEN SCREWWASHER, SCREEN SCREW
-
1511-20110 NUT, SCREEN SCREWNUT, SCREEN SCREW
