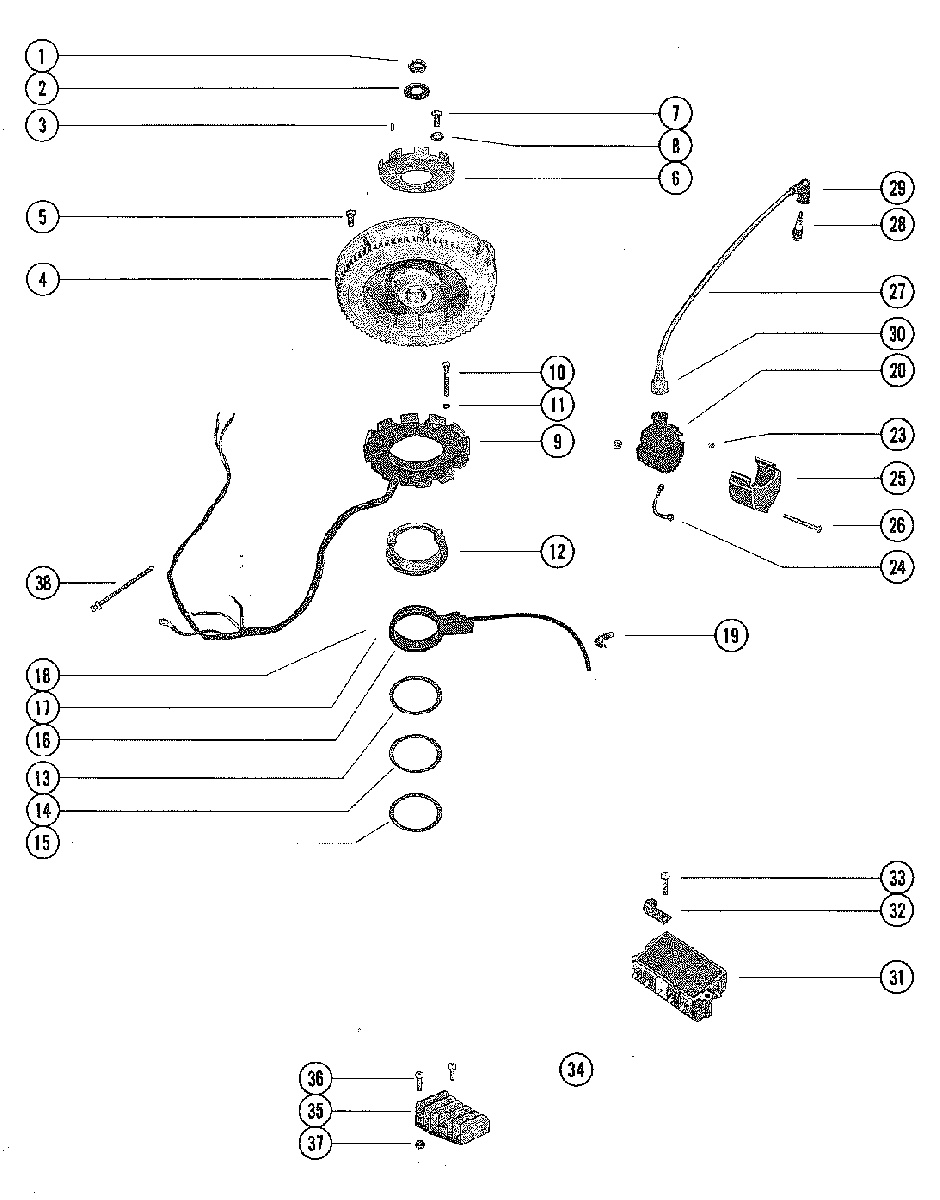

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 402, 40 (2 CYL.) 8052125 THRU 8064749
-
№АртикулНазвание
-
111-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
212-36258 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
328-45554 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
4242-4764A28 FLYWHEEL ASSEMBLY (MANUAL)
SERIAL GROUP #1FLYWHEEL ASSEMBLY (MANUAL)
SERIAL GROUP #1 -
4242-4764A25 FLYWHEEL ASSEMBLY (ELECTRIC)
SERIAL GROUP #1FLYWHEEL ASSEMBLY (ELECTRIC)
SERIAL GROUP #1 -
4242-4764A28 FLYWHEEL ASSEMBLY (MANUAL)
SERIAL GROUP #2FLYWHEEL ASSEMBLY (MANUAL)
SERIAL GROUP #2 -
4242-4764A25 FLYWHEEL ASSEMBLY (ELECTRIC)
SERIAL CROUP #2FLYWHEEL ASSEMBLY (ELECTRIC)
SERIAL CROUP #2 -
510-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16")SCREW, FLEXIBLE PLATE TO FLYWHEEL (9/16")
-
650-65213 RATCHET, FLYWHEEL
MANUALRATCHET, FLYWHEEL
MANUAL -
710-69088 SCREW, RATCHET TO FLYWHEEL (7/8")
MANUALSCREW, RATCHET TO FLYWHEEL (7/8")
MANUAL -
813-20202 LOCKWASHER, RATCHET SCREW
MANUALLOCKWASHER, RATCHET SCREW
MANUAL -
9398-5256 STATOR, IGNITION (MANUAL)STATOR, IGNITION (MANUAL)
-
9398-5255 STATOR, ALTERNATOR
ELECTRICSTATOR, ALTERNATOR
ELECTRIC -
1010-56787 SCREW, STATOR TO UPPER END CAP (2")SCREW, STATOR TO UPPER END CAP (2")
-
1113-26996 LOCKWASHER, STATOR SCREWLOCKWASHER, STATOR SCREW
-
1261830 STATOR SUPPORTSTATOR SUPPORT
-
1312-62133 WASHER, TRIGGER TO STATOR SUPPORT
UPPERWASHER, TRIGGER TO STATOR SUPPORT
UPPER -
1413-61983 WASHER, WAVE - TRIGGER TO STATOR SUPPORT
CENTERWASHER, WAVE - TRIGGER TO STATOR SUPPORT
CENTER -
1512-61982 WASHER, TRIGGER TO STATOR SUPPORT (LOWER)WASHER, TRIGGER TO STATOR SUPPORT (LOWER)
-
16338-4731A8 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1724-62095 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1817-62768 PIN, SPRING RETENTIONPIN, SPRING RETENTION
-
1954-54457 "J" CLIP, TRIGGER LEADS TO RUBBER SUPPORT
MOUNT"J" CLIP, TRIGGER LEADS TO RUBBER SUPPORT
MOUNT -
20339-5288T2 IGNITION COIL ASSEMBLY, COMPLETEIGNITION COIL ASSEMBLY, COMPLETE
-
2311-45076 NUT, COIL TERMINALSNUT, COIL TERMINALS
-
2484-60466A1 GROUND WIRE
COIL GROUND TO COIL COVER SCREWGROUND WIRE
COIL GROUND TO COIL COVER SCREW -
2576254 COVER, IGNITION COILCOVER, IGNITION COIL
-
2610-69002 SCREW, COIL COVER TO COIL BRACKET (1 3/4")SCREW, COIL COVER TO COIL BRACKET (1 3/4")
-
2610-60194 SCREW, COIL COVER TO COIL BRACKET (2 1/8")SCREW, COIL COVER TO COIL BRACKET (2 1/8")
-
2784-813715A1 LED ASSEMBLY, SPARK PLUG (HIGH TENSION)LED ASSEMBLY, SPARK PLUG (HIGH TENSION)
-
2833-97180Q SPARK PLUG (AC#V-R0FFM)
FOR CANADA AND BELGIUM, USE C-33-68098 (CHAMPION #QL-76V)SPARK PLUG (AC#V-R0FFM)
FOR CANADA AND BELGIUM, USE C-33-68098 (CHAMPION #QL-76V) -
2985-63709A1 PROTECTOR ASSEMLBY, SPARK PLUGPROTECTOR ASSEMLBY, SPARK PLUG
-
30332-2854T01 BOOT, LEAD TO IGNITION COILBOOT, LEAD TO IGNITION COIL
-
31332-4911A8 SWITCH BOX ASSEMBLY, COMPLETESWITCH BOX ASSEMBLY, COMPLETE
-
3254-54457 "J" CLIP, SWITCH BOX LEADS"J" CLIP, SWITCH BOX LEADS
-
3310-69067 SCREW, SWITCH BOX AND "J" CLIP TO BRACKETSCREW, SWITCH BOX AND "J" CLIP TO BRACKET
-
3410-45218 SCREW, TERMINAL BLOCK AND SWITCH BOX (3/8")SCREW, TERMINAL BLOCK AND SWITCH BOX (3/8")
-
3586-66754 TERMINAL BLOCK, SWITCH BOX LEADTERMINAL BLOCK, SWITCH BOX LEAD
-
3610-38055 SCREW, TERMINAL BLOCK ATTACHINGSCREW, TERMINAL BLOCK ATTACHING
-
3711-8267086 NUT, TERMINAL BLOCK ATTACHING SCREWSNUT, TERMINAL BLOCK ATTACHING SCREWS
-
3861990 STA-STRAP, STATOR LEADSSTA-STRAP, STATOR LEADS
