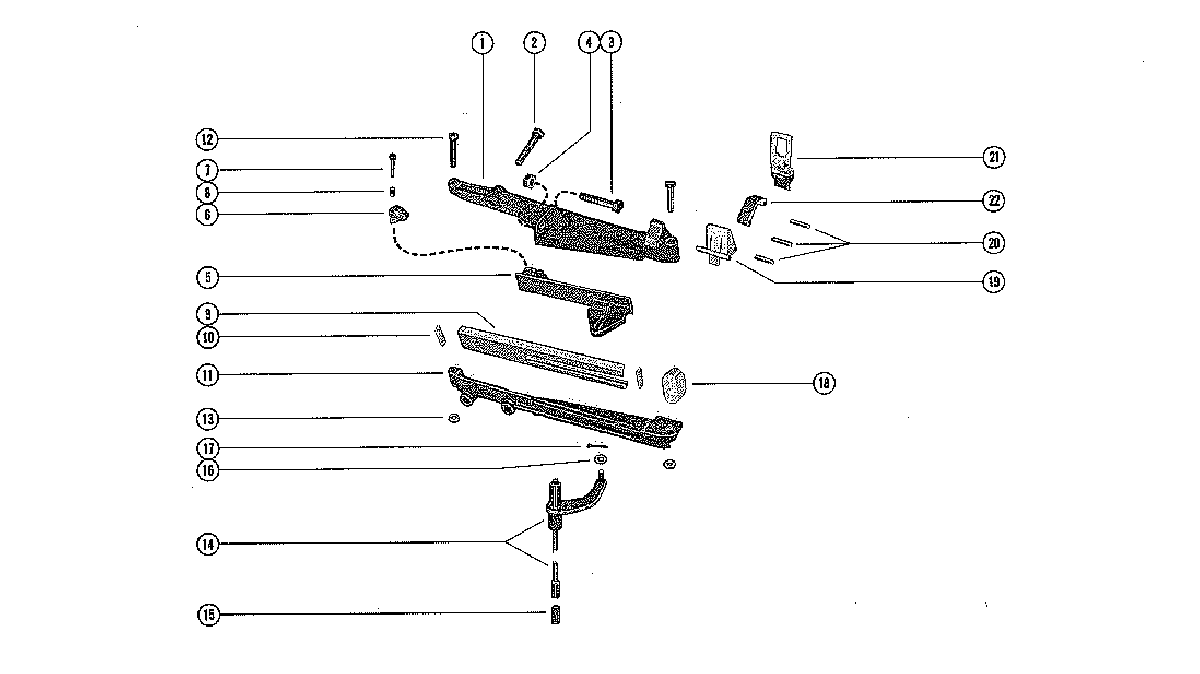

SHIFT CONTROL LINKAGE для Mercury - 402 3339688 THRU 9076838
-
№АртикулНазвание
-
187876A1 BRACKET, SHIFT ANCHOR - UPPERBRACKET, SHIFT ANCHOR - UPPER
-
210-74824 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1 1/4")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (1 1/4")
-
210-815549 SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (2")SCREW, ANCHOR BRACKET TO CYLINDER BLOCK (2")
-
310-69096 SCREW, UPPER ANCHOR BRACKET TO CRANKCASE (1 3/4")SCREW, UPPER ANCHOR BRACKET TO CRANKCASE (1 3/4")
-
411-29250 NUT, UPPER ANCHOR BRACKET SCREWNUT, UPPER ANCHOR BRACKET SCREW
-
587874 SLIDE, SHIFT ACTUATINGSLIDE, SHIFT ACTUATING
-
656193 LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)LATCH, SHIFT ACTUATING SLIDE (SHIFT CABLE)
-
710-39620 SCREW, LATCH TO SHIFT ACTUATING SLIDESCREW, LATCH TO SHIFT ACTUATING SLIDE
-
824-27087 SPRING, COMPRESSION - LATCH SCREWSPRING, COMPRESSION - LATCH SCREW
-
939516 SLIDE, NYLON - ANCHOR BRACKET (SHIFT ACUTATING SLIDE)SLIDE, NYLON - ANCHOR BRACKET (SHIFT ACUTATING SLIDE)
-
1039515 END CAP, NYLON - ANCHOR BRACKET SLIDEEND CAP, NYLON - ANCHOR BRACKET SLIDE
-
1187876A1 BRACKET, SHIFT ANCHOR - LOWERBRACKET, SHIFT ANCHOR - LOWER
-
1210-20012 SCREW, UPPER ANCHOR BRACKET TO LOWER ANCHOR BRACKET (1 5/8")SCREW, UPPER ANCHOR BRACKET TO LOWER ANCHOR BRACKET (1 5/8")
-
1311-826709109 NUT, UPPER ANCHOR BRACKET SCREWNUT, UPPER ANCHOR BRACKET SCREW
-
1459110A2 SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (SHORT SHAFT)
-
1459110A1 SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)SHIFT SHAFT ASSEMBLY, UPPER (LONG SHAFT)
-
1593960A1 COUPLING, UPPER SHIFT SHAFTCOUPLING, UPPER SHIFT SHAFT
-
1612-37998 WASHER, UPPER SHIFT SHAFT- MANUAL ONLYWASHER, UPPER SHIFT SHAFT- MANUAL ONLY
-
1718-26953 COTTER PIN, UPPER SHIFT SHAFT- MANUAL ONLYCOTTER PIN, UPPER SHIFT SHAFT- MANUAL ONLY
-
1839519 CUP, RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)CUP, RETAINER - ANCHOR BRACKET (SHIFT CABLE BARREL)
-
1987609A1 LEVER, NYLON - SHIFT CABLE LOCKING (UPPER ANCHOR BRACKET)LEVER, NYLON - SHIFT CABLE LOCKING (UPPER ANCHOR BRACKET)
-
2017-47175 PIN,LOCKING LEVER AND COVER FASTENINGPIN,LOCKING LEVER AND COVER FASTENING
-
2139667 COVER, NYLON - SHIFT CABLECOVER, NYLON - SHIFT CABLE
-
2287609A1 LINK, LOCKING LEVER TO COVERLINK, LOCKING LEVER TO COVER
Все узлы модели:
- BOTTOM COWL AND EXHAUST PLATE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTON AND CONNECTING ROD ASSEMBLY
- CYLINDER BLOCK AND COIL MOUNTING BRACKET (SERIAL GROUP #3)
- CYLINDER BLOCK AND COIL MOUNTING BRACKET (SERIAL GROUP #5)
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL, IGNITION COIL AND SWITCH BOX
- FUEL PUMP ASSEMBLY AND FUEL LINES
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- • SHIFT CONTROL LINKAGE
- STARTER HOUSING
- STARTER MOTOR, RECTIFIER AND WIRING HARNESS
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
- TOP COWL ASSEMBLY
