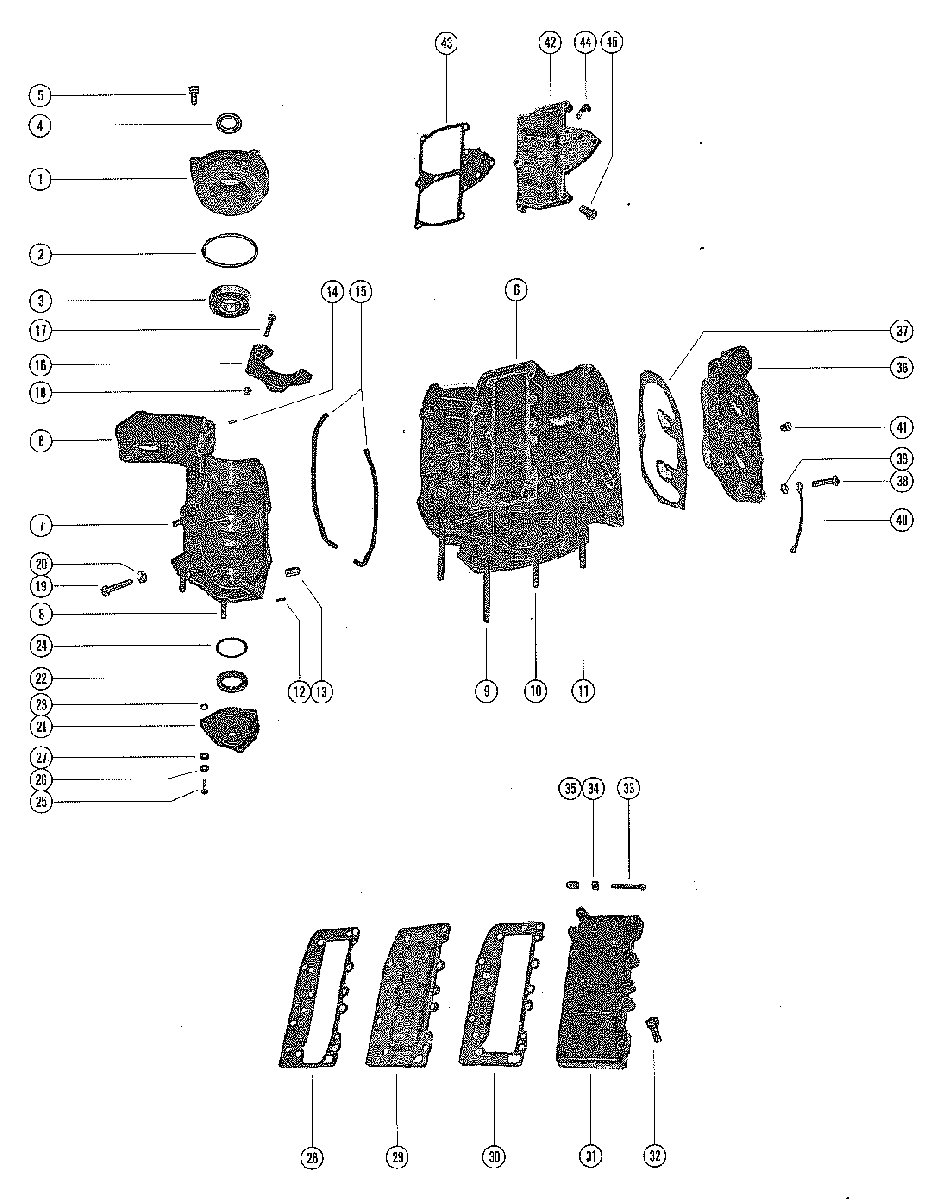

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 402 3340783 THRU 7047607
-
№АртикулНазвание
-
11151-4732A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
225-47254 "O" RING, UPPER END CAP"O" RING, UPPER END CAP
-
331-62066T BALL BEARING, UPPER END CAPBALL BEARING, UPPER END CAP
-
426-41953 OIL SEAL, UPPER END CAPOIL SEAL, UPPER END CAP
-
510-30225 SCREW, UPPER END CAP MOUNTING (1")SCREW, UPPER END CAP MOUNTING (1")
-
6851-5925A2 CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3476510 AND BELOWCYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3476510 AND BELOW -
6851-5350A7 CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3476511 THRU 3477009CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3476511 THRU 3477009 -
6851-7940A6 CYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPCYLINDER BLOCK AND CRANKCASE ASS'Y
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
716-64936 STUD, CARBURETOR MOUNTING (1 3/16")STUD, CARBURETOR MOUNTING (1 3/16")
-
816-33111 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (9/16")STUD, CRANKCASE TO DRIVE SHAFT HOUSING (9/16")
-
916-8M0034463 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOWSTUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 7/16")
UNITED STATES 3859434 AND BELOW
AUSTRALIA 8016689 AND BELOW
BELGIUM 9051458 AND BELOW
CANADA 7006601 AND BELOW -
916-68168 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UPSTUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (3 11/16")
UNITED STATES 3859435 AND UP
AUSTRALIA 8016690 AND UP
BELGIUM 9051459 AND UP
CANADA 7032138 AND UP -
1016-29989 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
STARBOARDSTUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 15/16")
STARBOARD -
1116-34378 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
PORTSTUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 5/16")
PORT -
1217-57211 DOWEL PIN, RETAINER TO CYLINDER BLOCKDOWEL PIN, RETAINER TO CYLINDER BLOCK
-
1317-23784 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
1417-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
-
1527-55158 GASKET, SEALING - CYLINDER BLOCKGASKET, SEALING - CYLINDER BLOCK
-
1662064 BRACKET, STARTER MOTORBRACKET, STARTER MOTOR
-
1710-35213 SCREW, BLOCK BRACKET TO STARTER MOTOR (1 5/8")-ELECTRICSCREW, BLOCK BRACKET TO STARTER MOTOR (1 5/8")-ELECTRIC
-
1710-21339 SCREW, STARTER MOTOR BRACKET TO BLOCK (1 3/8") MANUALSCREW, STARTER MOTOR BRACKET TO BLOCK (1 3/8") MANUAL
-
1811-29250 NUT, STARTER MOTOR BRACKET SCREW - MANUALNUT, STARTER MOTOR BRACKET SCREW - MANUAL
-
1910-78841 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1910-33008 SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (3 1/2")
-
1910-69090 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")
-
2011-29250 NUT, CRANKCASE FASTENING SCREWNUT, CRANKCASE FASTENING SCREW
-
211152-4810A1 END CAP ASSEMBLY, LOWER
UNITED STATES 3476510 AND BELOWEND CAP ASSEMBLY, LOWER
UNITED STATES 3476510 AND BELOW -
2226-41953 OIL SEAL, LOWR END CAP
UNITED STATES 3476510 AND BELOWOIL SEAL, LOWR END CAP
UNITED STATES 3476510 AND BELOW -
2325-627021 "O" RING, LOWER END CAP SCREWS
UNITED STATES 3476510 AND BELOW"O" RING, LOWER END CAP SCREWS
UNITED STATES 3476510 AND BELOW -
2425-62457 "O" RING, LOWER END CAP
UNITED STATES 3476510 AND BELOW"O" RING, LOWER END CAP
UNITED STATES 3476510 AND BELOW -
2510-56500 SCREW, LOWER END CAP TO CYLINDER BLOCK ANC CRANKCASE (1 1/4")
UNITED STATES 3476510 AND BELOWSCREW, LOWER END CAP TO CYLINDER BLOCK ANC CRANKCASE (1 1/4")
UNITED STATES 3476510 AND BELOW -
2612-58166 WASHER, RETAINER SCREW
UNITED STATES 3476510 AND BELOWWASHER, RETAINER SCREW
UNITED STATES 3476510 AND BELOW -
2726-57847 STAT-O-SEAL, RETAINER SCREW
UNITED STATES 3476510 AND BELOWSTAT-O-SEAL, RETAINER SCREW
UNITED STATES 3476510 AND BELOW -
211152-7267A1 END CAP ASSEMBLY, LOWER
UNITED STATES 3476511 THRU 3477009END CAP ASSEMBLY, LOWER
UNITED STATES 3476511 THRU 3477009 -
2226-41953 OIL SEAL, LOWER END CAP
UNITED STATES 3476511 THRU 3477009OIL SEAL, LOWER END CAP
UNITED STATES 3476511 THRU 3477009 -
2325-64068 "O" RING, LOWER END CAP SCREW
UNITED STATES 3476511 THRU 3477009"O" RING, LOWER END CAP SCREW
UNITED STATES 3476511 THRU 3477009 -
2425-823683 "O" RING, LOWER END CAP
UNITED STATES 3476511 THRU 3477009"O" RING, LOWER END CAP
UNITED STATES 3476511 THRU 3477009 -
2510-63365 SCREW, LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2")
UNITED STATES 3476511 THRU 3477009SCREW, LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2")
UNITED STATES 3476511 THRU 3477009 -
2827-854891 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2955190 PLATE, DIVIDER - EXHAUST MANIFOLDPLATE, DIVIDER - EXHAUST MANIFOLD
-
3027-854882 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
31551572 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
3210-74824 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 1/4")SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 1/4")
-
3210-31984 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 3/8")SCREW, MANIFOLD COVER TO CYLINDER BLOCK (1 3/8")
-
3310-24228 SCREW, ADJUSTIN - EXHAUST COVER (1 7/8")SCREW, ADJUSTIN - EXHAUST COVER (1 7/8")
-
3411-20890 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
3526852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
361024-91101 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
3727-85490 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
3810-56500 SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")SCREW, CYLINDER BLOCK COVER MOUNTING (1 1/4")
-
3911-20184 NUT, COVER MOUNTING SCREWNUT, COVER MOUNTING SCREW
-
4046933A3 GROUND STRAP, POWRHEAD TO BOTTOM COWLGROUND STRAP, POWRHEAD TO BOTTOM COWL
-
4122-328022 PLUG, PIPE - CYLINDER BLOCK COVERPLUG, PIPE - CYLINDER BLOCK COVER
-
4262303 COVER, TRANSFER PORT
UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOWCOVER, TRANSFER PORT
UNITED STATES 3474577 AND BELOW
AUSTRALIA 8004329 AND BELOW
BELGIUM 9005203 AND BELOW
CANADA 7006600 AND BELOW -
4263970 COVER, TRANSFER PORT
UNITED STATES 3474578 AND UP
AUSTRALIA 8004360 AND UP
BELGIUM 9005204 AND UP
CANADA 7006601 AND UPCOVER, TRANSFER PORT
UNITED STATES 3474578 AND UP
AUSTRALIA 8004360 AND UP
BELGIUM 9005204 AND UP
CANADA 7006601 AND UP -
4327-552791 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
4454-54457 "J" CLIP, COIL HARNESS"J" CLIP, COIL HARNESS
-
4510-76630 SCREWS, TANSFER PORT COVER MOUNTING (1")SCREWS, TANSFER PORT COVER MOUNTING (1")
