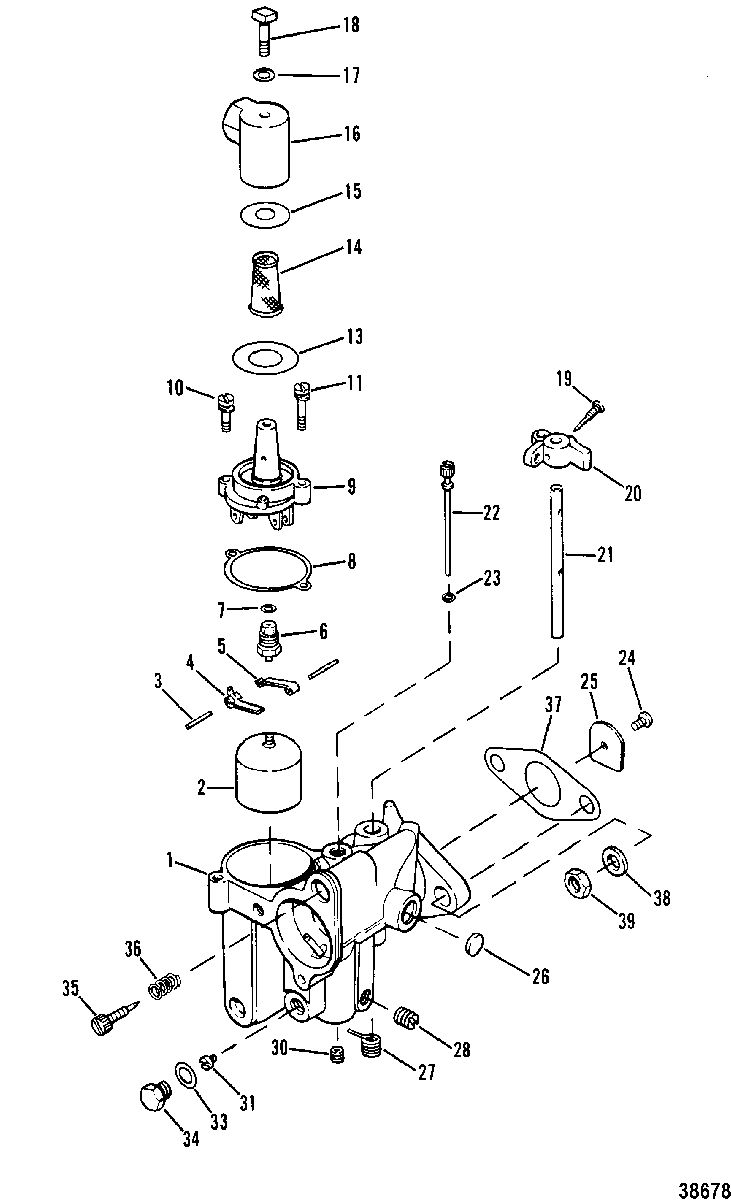

CARBURETOR ASSEMBLY(WALBRO) для Mercury - 4.5 (1 CYL.) 5595532 & Up
-
№АртикулНазвание
-
11341-8740A1 CARBURETOR, COMPLETECARBURETOR, COMPLETE
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3NSS NOT SOLD SEPARATE, Pin, float lever pinionNOT SOLD SEPARATE, Pin, float lever pinion
-
4NSS NOT SOLD SEPARATE, Lever, float (Lower)NOT SOLD SEPARATE, Lever, float (Lower)
-
5NSS NOT SOLD SEPARATE, Lever, float (Upper)NOT SOLD SEPARATE, Lever, float (Upper)
-
61395-83181 NEEDLE, Inlet, SEAT AND GASKETNEEDLE, Inlet, SEAT AND GASKET
-
7NSS NOT SOLD SEPARATE, Gasket, inlet seatNOT SOLD SEPARATE, Gasket, inlet seat
-
8NSS NOT SOLD SEPARATE, Gasket, float bowl coverNOT SOLD SEPARATE, Gasket, float bowl cover
-
91399-1133 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
1010-52195 SCREW, FLOAT BOWL COVER (SHORT)SCREW, FLOAT BOWL COVER (SHORT)
-
1110-52196 SCREW, FLOAT BOWL COVER (LARGE)SCREW, FLOAT BOWL COVER (LARGE)
-
13NSS NOT SOLD SEPARATE, Gasket, strainer cover (Large)NOT SOLD SEPARATE, Gasket, strainer cover (Large)
-
141399-3938 SCREEN, FILTERSCREEN, FILTER
-
15NSS NOT SOLD SEPARATE, Screen, filterNOT SOLD SEPARATE, Screen, filter
-
161399-1135 COVER, STRAINER (90 DEGREE)COVER, STRAINER (90 DEGREE)
-
17NSS NOT SOLD SEPARATE, Gasket, strainer cover screwNOT SOLD SEPARATE, Gasket, strainer cover screw
-
1810-25822 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
191395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
208146791 LEVER, THROTTLE STOPLEVER, THROTTLE STOP
-
211399-1716 SHAFTSHAFT
-
22NSS NOT SOLD SEPARATE, Idle TubeNOT SOLD SEPARATE, Idle Tube
-
23NSS NOT SOLD SEPARATE, Gasket, idle tubeNOT SOLD SEPARATE, Gasket, idle tube
-
24NSS NOT SOLD SEPARATE, Screw, throttle shutterNOT SOLD SEPARATE, Screw, throttle shutter
-
251399-3739 SHUTTERSHUTTER
-
26NSS NOT SOLD SEPARATE, Welch Plug, body channelNOT SOLD SEPARATE, Welch Plug, body channel
-
27NSS NOT SOLD SEPARATE, Spring, throttle shaft returnNOT SOLD SEPARATE, Spring, throttle shaft return
-
28NSS NOT SOLD SEPARATE, Screw, plug - body channelNOT SOLD SEPARATE, Screw, plug - body channel
-
30NSS NOT SOLD SEPARATE, Screw, plug - main nozzleNOT SOLD SEPARATE, Screw, plug - main nozzle
-
311399-3252 JET, (.032), MAIN FUELJET, (.032), MAIN FUEL
-
311399-3251 JET, (.034), MAIN FUEL - STANDARDJET, (.034), MAIN FUEL - STANDARD
-
311399-3026 JET, (.036), MAIN FUELJET, (.036), MAIN FUEL
-
311399-2407 JET, Main Fuel (.039), MAIN FUELJET, Main Fuel (.039), MAIN FUEL
-
311399-1896 JET, MAIN FUEL (.041)JET, MAIN FUEL (.041)
-
33NSS NOT SOLD SEPARATE, Gasket, jet channel plug screwNOT SOLD SEPARATE, Gasket, jet channel plug screw
-
34NSS NOT SOLD SEPARATE, Screw, plug - main fuel jet channelNOT SOLD SEPARATE, Screw, plug - main fuel jet channel
-
351399-3740 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
36NSS NOT SOLD SEPARATE, Spring, idle adjustment screwNOT SOLD SEPARATE, Spring, idle adjustment screw
-
3727-63309 GASKET, CARBURETOR TO REED BLOCKGASKET, CARBURETOR TO REED BLOCK
-
3812-20583 WASHER, CARBURETOR MOUNTING STUDWASHER, CARBURETOR MOUNTING STUD
-
3911-24652 NUT, (.250-28), CARBURETOR MOUNTING STUDNUT, (.250-28), CARBURETOR MOUNTING STUD
-
-1399-1717 GASKET SETGASKET SET
-
-1395-9019 REPAIR PARTS KITREPAIR PARTS KIT
