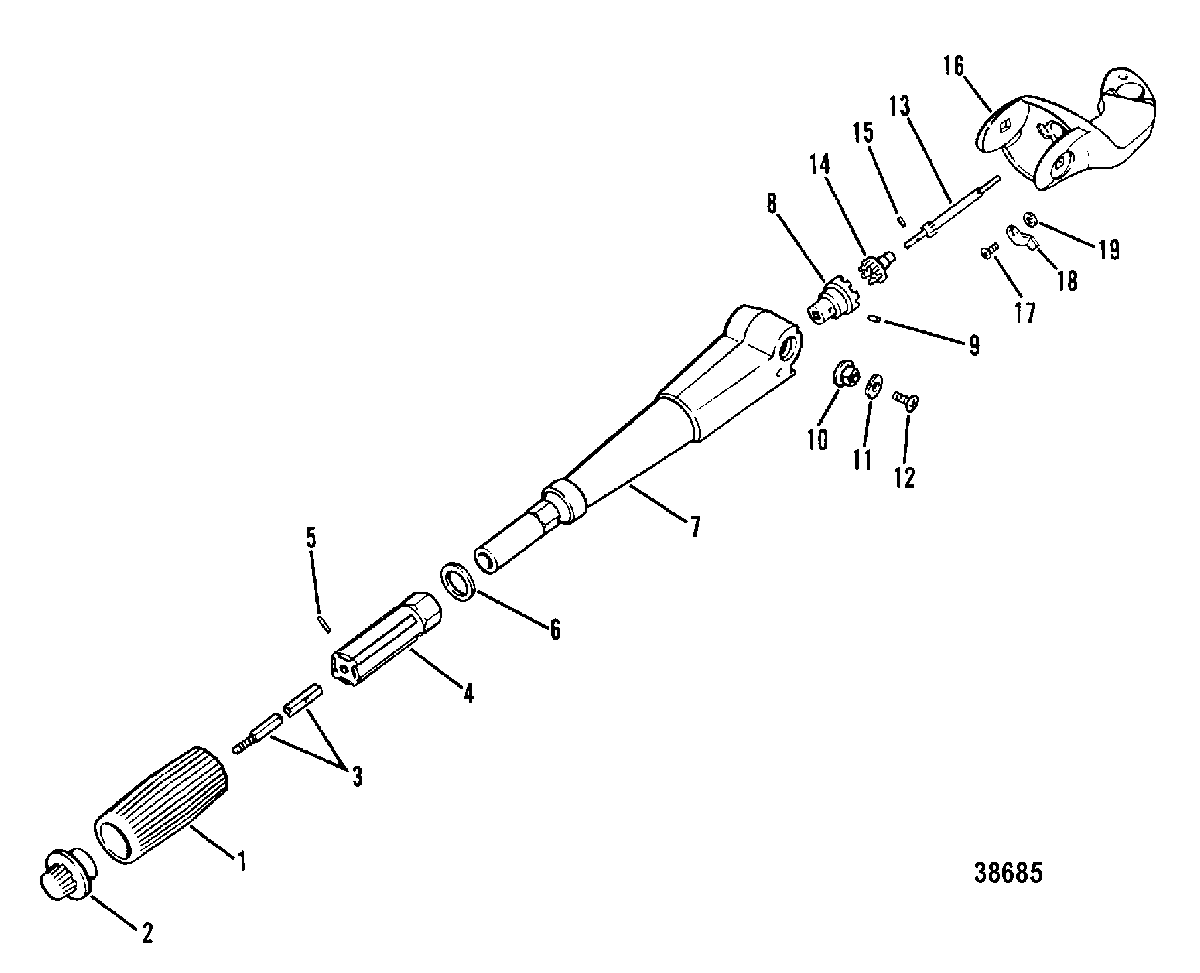

STEERING HANDLE ASSEMBLY для Mercury - 4.5 (1 CYL.) 9258281 & Up
-
№АртикулНазвание
-
-60850A6 HANDLE ASSEMBLY, Steering, COMPLETEHANDLE ASSEMBLY, Steering, COMPLETE
-
160854 GRIP, HANDLE - THROTTLEGRIP, HANDLE - THROTTLE
-
262251 CAP, HANDLE THROTTLECAP, HANDLE THROTTLE
-
366393 SHAFTSHAFT
-
466394A1 HANDLE ASSEMBLY, THROTTLE SHAFTHANDLE ASSEMBLY, THROTTLE SHAFT
-
517-46152 PIN, THROTTLE HANDLEPIN, THROTTLE HANDLE
-
612-62252 WASHER, THROTTLE HANDLE TO STEERING ARMWASHER, THROTTLE HANDLE TO STEERING ARM
-
760850 ARM, STEERING HANDLEARM, STEERING HANDLE
-
843-60852 GEAR, THROTTLE SHAFTGEAR, THROTTLE SHAFT
-
917-27088 PIN, BALL GEAR TO THROTTLE SHAFTPIN, BALL GEAR TO THROTTLE SHAFT
-
1048003 PIVOT, STEEIRNG HANDLE TO BRACKETPIVOT, STEEIRNG HANDLE TO BRACKET
-
1115-48002015 SHIM, HANDLE PIVOT TO BRACKET (.015)SHIM, HANDLE PIVOT TO BRACKET (.015)
-
1210-96138 SCREW, (.250-28 x .620), HANDLE TO ARM BRACKETSCREW, (.250-28 x .620), HANDLE TO ARM BRACKET
-
1360857A2 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
1443-60852 GEAR, UNIVERSAL JOINTGEAR, UNIVERSAL JOINT
-
1517-27088 PIN, BALL GEAR TO UNIVERSAL JOINTPIN, BALL GEAR TO UNIVERSAL JOINT
-
1696130A1 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
1710-62233 SCREW, (#10-16 x .625), DETENT SPRING TO BRACKETSCREW, (#10-16 x .625), DETENT SPRING TO BRACKET
-
1824-72847 SPRING, DETENT - STEERING HANDLESPRING, DETENT - STEERING HANDLE
-
1912-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, DETENT SPRING SCREW
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY(TILLOTSON)
- CARBURETOR ASSEMBLY(WALBRO)
- CARBURETOR CHOKE LINKAGE
- CLAMP BRACKET ASSEMBLY
- CRANKSHAFT, PISTON AND CONNECTING ROD
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVESHAFT HOUSING ASSEMBLY
- FLYWHEEL AND IGNITION COMPONENTS
- FUEL PUMP AND FUEL LINES
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- MISCELLANEOUS PARTS/ACCESSORIES
- SHIFT CONTROL LINKAGE
- • STEERING HANDLE ASSEMBLY
- SWIVEL BRACKET ASSEMBLY
- THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
